        Description

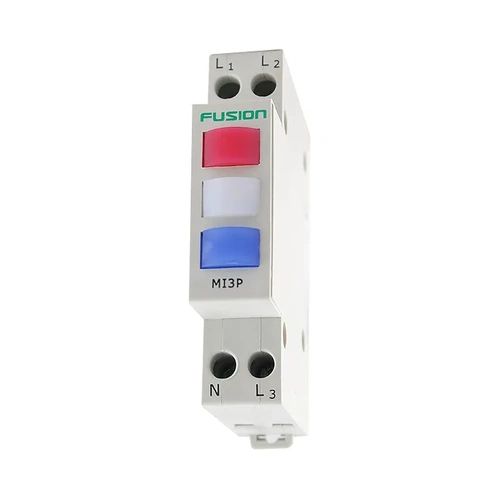

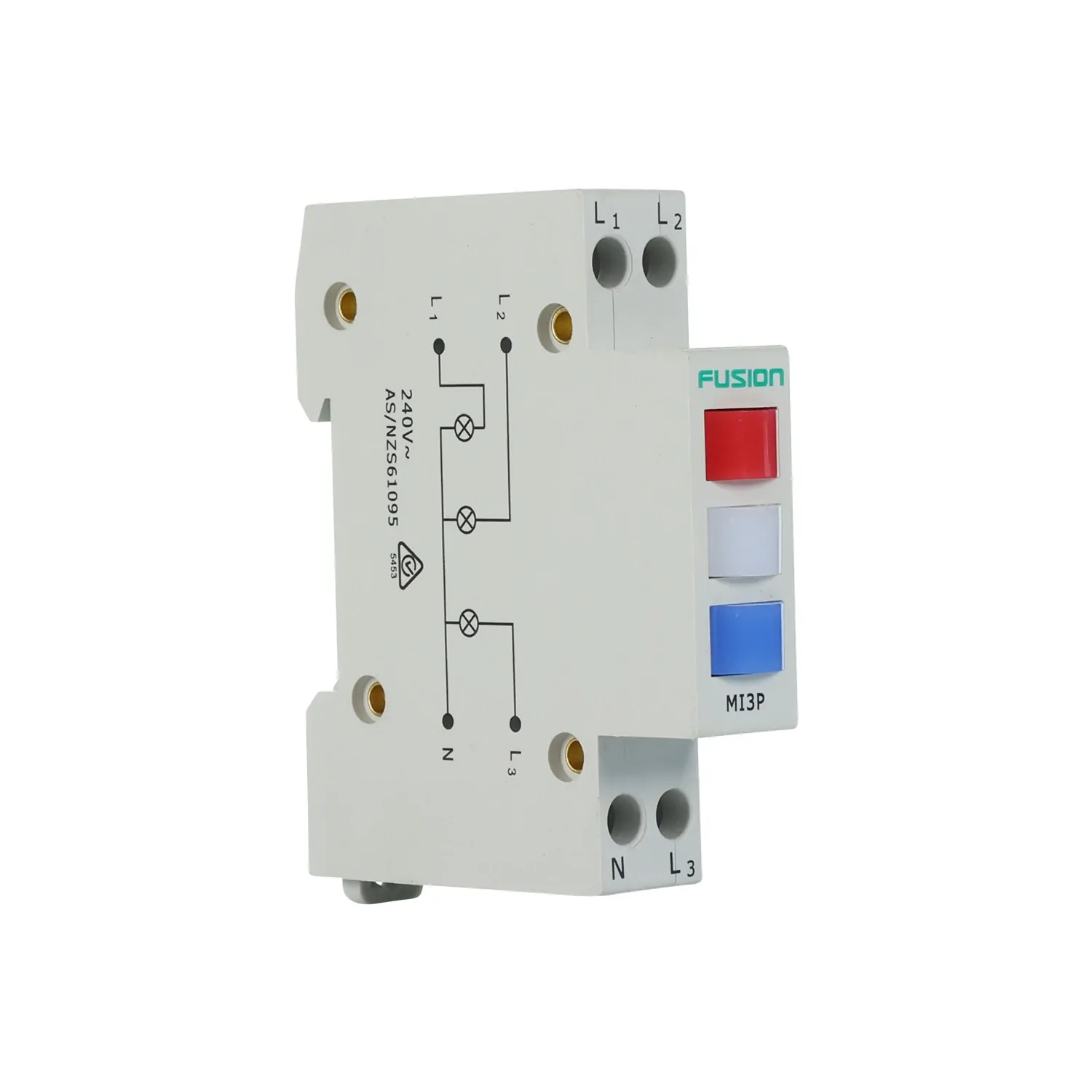

        Connected Switch Gear MI3P | Phase Indicator Red White Blue | 240V AC

        The Connected Switch Gear MI3P is a 240V AC 3-phase power indicator, designed for DIN rail installation in switchboards and control panels. It provides a clear, immediate visual reference of L1, L2, and L3 status using red, white, and blue LEDs, aligned to IEC standard phase colours—ideal for electricians needing fast fault detection and confirmation of power supply.

        At just 18mm wide, this compact module fits standard 35mm DIN rails, making it suitable for space-limited installations. It operates on 50–60Hz systems, supports 6mm² cables, and features 1.2Nm screw-type terminals for secure, reliable connections. Built to last, the MI3P is backed by a 5-year in-house warranty and complies with IEC 60947-5-1 standards for control circuit devices.

        MI3P Features

        • 240V AC 3-phase status indicator: Shows power on L1, L2, L3 at a glance.
        • Red / white / blue LED colours: Phase ID complies with IEC standards.
        • DIN rail mountable (18mm width): Installs easily on 35mm DIN rail systems.
        • 6mm² terminal capacity: Clear terminal layout with 1.2Nm screw torque.
        • Rated for 50–60Hz systems
        • Complies with IEC 60947-5-1
        • 5-year in-house warranty

        MI3P FAQ

        Q: How is the MI3P mounted?
        A: It mounts onto a 35mm DIN rail—standard for most switchboards.

        Q: What do the LED colours represent?
        A: L1 = red, L2 = white, L3 = blue, as per IEC phase colour coding.

        Q: What wiring specs does it support?
        A: The terminals accept up to 6mm² cable and are tightened to 1.2Nm.

        (MI3P)

        Warranty

        Warranty starts from Invoice Date

        5 Year In-House Warranty
        Warranty Method: Connected Switch Gear In-House Warranty

        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Connected Switch Gear
        SKU MI3P
        Package Weight 0.100kg
        Package Width 0.075m
        Package Height 0.040m
        Package Length 0.150m
        TYPE VALUE
        Type Circuit Protection
        Brand Connected Switch Gear
        LED Indicator Red, White, Blue
        Rated Voltage (V) 240V AC
        Rated Frequency 50-60Hz
        Cable Termination 6mm²
