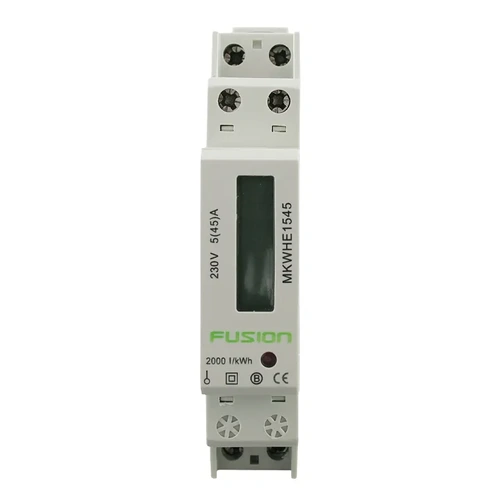

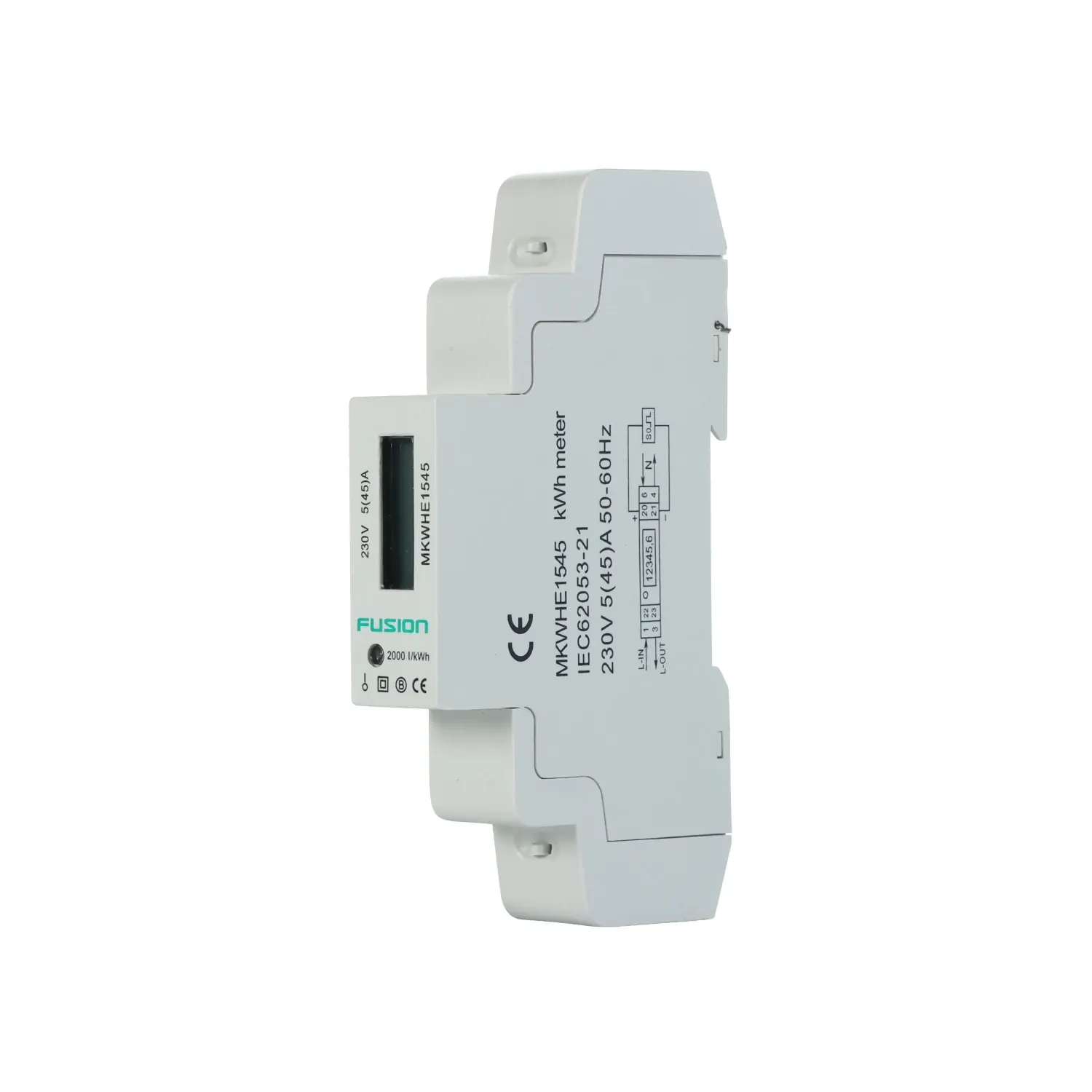

        Connected Switch Gear MKWHE1545 | Single Phase 45amp KWh Meter | IP51

        The Connected Switch Gear MKWHE1545 is a compact, single-phase 45A kWh energy meter designed for accurate and reliable monitoring in residential or light commercial switchboards. DIN rail mountable, it features a clear 5+2 digit LCD display with memory backup, ensuring data retention even during power outages.

        Compliant with IEC 62053-21, it supports direct input wiring with a 5A base current and up to 45A max load. A selectable pulse output (1000 or 2000 imp/kWh) makes it suitable for integration into monitoring systems. The IP51-rated housing offers protection from dust and light moisture, and the unit operates between -25°C and 55°C, ensuring consistent performance in varied environments.

        Installation is simple with clearly labelled terminals, 10mm² capacity, and a 1.2Nm screw torque rating. Backed by a 5-year in-house warranty, the MKWHE1545 offers dependable kWh tracking in a space-saving format.

        MKWHE1545 Features

        • Single-phase 230V AC energy meter: 45A max current with direct connection.
        • 5+2 digit LCD display with memory backup: Retains usage data during power loss.
        • DIN rail mountable: Compact, modular design fits standard enclosures.
        • Pulse output 1000 / 2000 imp/kWh: Compatible with energy monitoring systems.
        • IP51 housing: Dust and moisture-resistant for indoor switchboards.
        • Low power consumption: ≤2W / 10VA for efficient operation.
        • Terminal capacity: 10mm² | Screw torque: 1.2Nm
        • Accuracy Class 1 | Protective Class II
        • Complies with IEC 62053-21
        • 5-year in-house warranty

        MKWHE1545 FAQ

        Q: What current range does this meter support?
        A: It handles 5A base current and up to 45A max at 230V AC.

        Q: Can I use this with a pulse monitoring system?
        A: Yes, it includes selectable pulse output (1000 or 2000 imp/kWh).

        Q: Is it safe for use in switchboards with light moisture or dust?
        A: Yes, it’s IP51 rated for light dust and vertical water drop protection.

        (MKWHE1545)

        Warranty

        Warranty starts from Invoice Date

        5 Year In-House Warranty
        Warranty Method: Connected Switch Gear In-House Warranty

        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Connected Switch Gear
        SKU MKWHE1545
        Package Weight 0.093kg
        Package Width 0.100m
        Package Height 0.020m
        Package Length 0.065m
        TYPE VALUE
        Type Kilowatt Hour Meter
        Brand Connected Switch Gear
        Mounting Din Rail
        Single or 3 Phase Single Phase
        Analog or Digital Digital
        Memory Backup Yes
