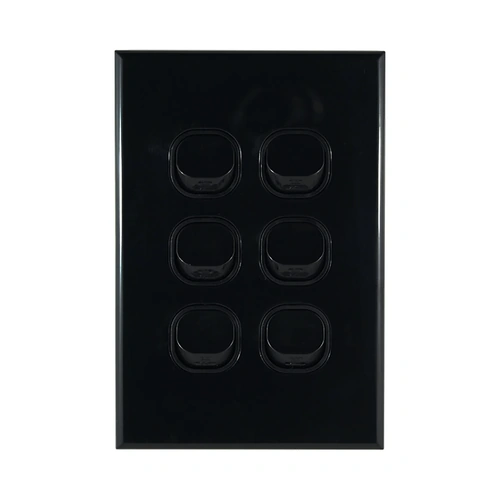

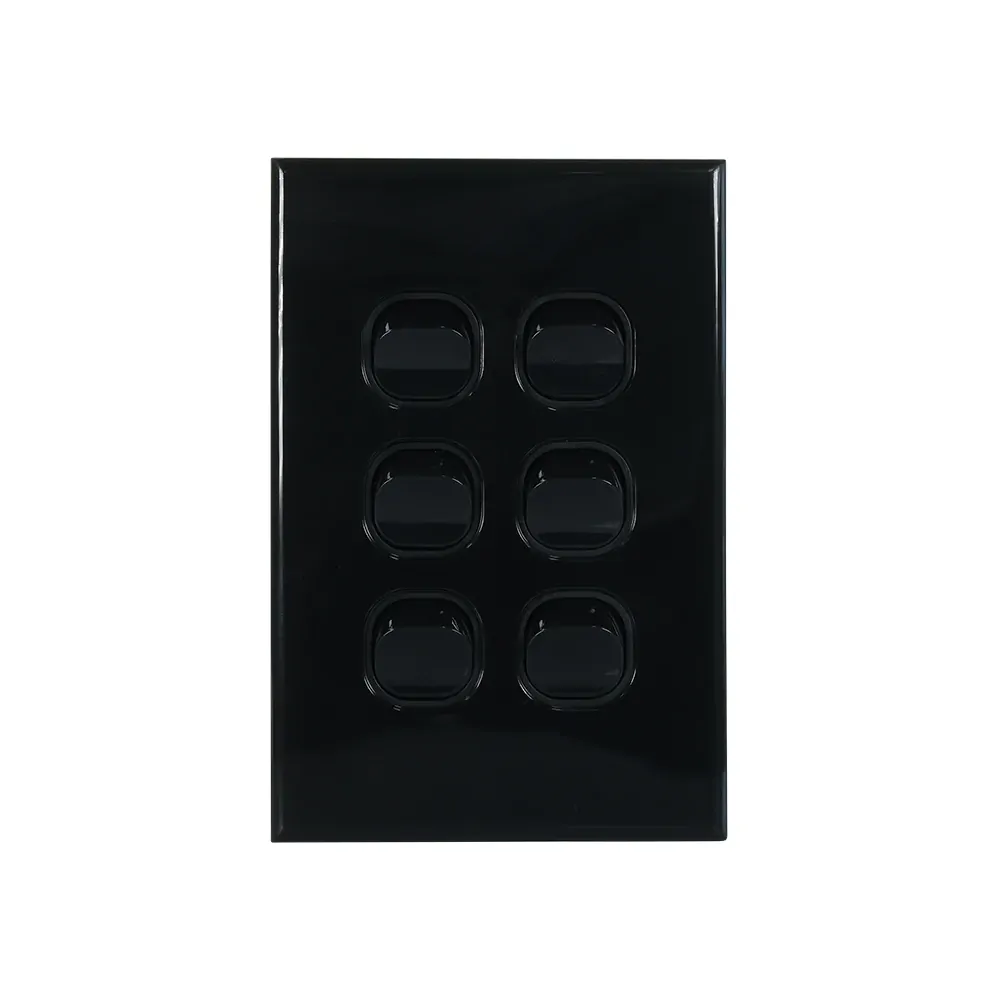

        CSG LS106VB-L | GEO 6 Gang Slimline Switch 10AX | Black

        The CSG LS106VB-L is a 6 gang vertical switch from the GEO slimline series, designed for large-scale lighting control in modern homes or commercial spaces. Its ultra-slim 6.5mm profile and gloss black finish deliver a sleek, minimalist appearance across multi-circuit switch layouts.

        Each switch is rated at 10AX, 250V AC and built with silver nickel contacts, phosphor bronze springs, and brass terminal screws for safe, long-lasting performance. The faceplate is constructed from UV-stabilised virgin polycarbonate, ensuring durability and resistance to fading or wear.

        All six switches support two-way configurations, and the unit is tested to comply with AS/NZS 3100:2017+A1-3 and AS/NZS 3133:2013+A1-2, making it installer-ready and safe for residential and light commercial projects.

        CSG LS106VB-L Features

        • 6 gang slimline design: 6.5mm thick gloss black plate for a modern, low-profile finish.
        • 10AX 250V AC rated: Suitable for general lighting and two-way switching.
        • Silver nickel and bronze internals: Provides long-lasting, reliable switching.
        • Brass terminals and screws: Corrosion-resistant and secure electrical connections.
        • Two-way switching support: Flexible for multi-access lighting setups.
        • Standards certified: Compliant with AS/NZS 3100 and AS/NZS 3133.

        LS106VB-L FAQ
        Q: Can each switch be used in a two-way circuit?
        A: Yes, all six switches support two-way switching.

        Q: What are the dimensions of the faceplate?
        A: 115mm x 77mm with a standard 76mm x 55mm cut-out.

        Q: What makes this switch durable?
        A: It uses silver nickel contacts, phosphor bronze springs, and a UV-stabilised polycarbonate plate for long-lasting reliability.

        (LS106VB-L)

        Warranty

        Warranty starts from Invoice Date

        5 Year In-House Warranty
        Warranty Method: Connected Switch Gear In-House Warranty

        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Connected Switch Gear
        SKU LS106VB-L
        Barcode # 9337286003250
        Package Weight 0.120kg
        Package Width 0.120m
        Package Height 0.025m
        Package Length 0.080m
        TYPE VALUE
        Type Switch
        Brand Connected Switch Gear
        Range GEO Series
        Colour Black
        Rated Current (A) 10AX
        Height (mm) 115
        Width (mm) 77
        Number of Switches / Gangs 6
        Plate Thickness (mm) 6.5
        Rated Voltage (V) 250
