        Learn more by watching our Daikin FTXV35WVMA-KIT | 3.5KW Reverse Cycle Split System Air conditioner R32 video.

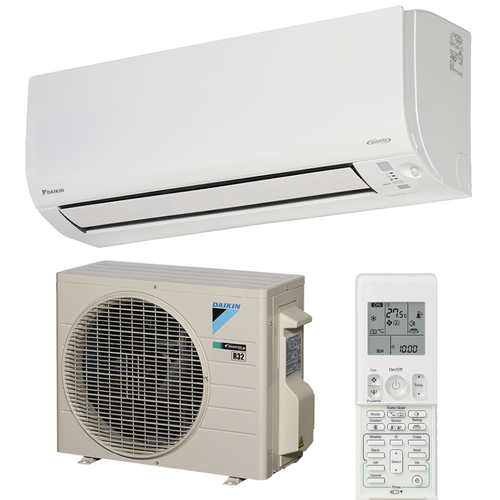

        Daikin | Reverse Cycle Split System 3.5kW | Cora Series R32

        The Daikin FTXV35WVMA-KIT is a split system air conditioner providing 3.5kW cooling and 3.7kW heating on 240V single-phase mains. The kit includes an indoor wall-mount unit (FTXV35WVMA) and outdoor condenser (RXV35WVMA) plus all fittings for Australian installation. The FTXV35WVMA runs on R32 refrigerant (66% lower environmental impact than R410A) and holds the Daikin Sensitive Choice endorsement from the National Asthma Council Australia.

        Homes and rental properties need reliable cooling and heating across Australia's hot summers and cold winters. The 3.5kW capacity suits single rooms and open-plan living areas (35–45 square metres) where ducted systems don't fit or cost too much. Daikin split systems have proved themselves in Australian homes for over 50 years, trusted by builders and electricians for reliability and spare parts access. The Cora series delivers quiet operation (42 dBA) with inverter efficiency that cuts energy costs, and temperature control precise to 0.5°C.

        Licensed electricians choose the FTXV35WVMA for new builds, renovations, and replacements because it delivers reliable heating and cooling without extensive ductwork or multiple units. Inverter boost runs the compressor flat out for 20 minutes when needed, recovering temperature fast on extreme weather days. Coanda airflow pushes conditioned air up along the ceiling for even spread, preventing cold spots and draughts. Precise temperature control (0.5°C steps) and the 2-Area Intelligent Eye prevent overcooling and switch the unit to energy-saving mode when no one is in the room.

        Features

        • Reverse-cycle operation — cooling and heating from a single outdoor unit, eliminating the need for separate heater units or additional wall space.
        • 3.5kW cooling / 3.7kW heating — rated capacities at standard conditions (27°CDB/19°CWB indoor, 35°CDB outdoor for cooling); variable output between 0.9–4.2kW cooling and 0.9–5.5kW heating adapts to part-load conditions.
        • R32 refrigerant — 66% lower global warming potential than R410A, reducing environmental impact and aligning with Australia's refrigerant phase-down policy.
        • Inverter-driven compressor — modulates cooling or heating power smoothly rather than cycling on/off, lowering energy consumption and improving comfort stability; boost mode delivers high capacity for 20 minutes when needed.
        • Whisper-quiet performance — 42 dBA on high fan speed (quieter than most conversation levels), 19 dBA on sleep mode; outdoor unit operates at 49 dBA (high) / 44 dBA (low).
        • Coanda airflow — discharge louvres direct air upward along the ceiling for rapid temperature distribution and draught-free comfort, preventing cold pools near floor level.
        • Precision temperature control — room temperature set in 0.5°C increments (20.0°C, 20.5°C, 21.0°C, etc.) instead of single-degree steps, enabling exact comfort tuning.
        • 2-Area Intelligent Eye sensor — passive infrared detection prevents excessive cooling in empty rooms; automatically switches to energy-saving mode when no movement is detected, reducing standby power draw.
        • Enzyme blue air purification filter — traps microscopic particles, decomposes odours, and deactivates airborne bacteria, improving indoor air quality for allergy and asthma sufferers (Sensitive Choice endorsed).
        • 5-year parts and labour warranty — Daikin Australia covers manufacturing defects and compressor failure across domestic and commercial installations when installed by a licensed electrician.
        • Wall-mount indoor unit only — not suitable for ceiling, floor, or cassette mounting; installation requires wall space 285mm high by 770mm wide on an exterior or interior wall with outdoor condenser access.
        • Installation restricted to licensed electricians — split system refrigerant handling, electrical termination, and final pressure/leak testing must be performed by professionals certified under the Ozone Protection and Synthetic Greenhouse Gas (Refrigerant) Management Act.

        Where to use

        • Bedrooms and studies — the 42 dBA / 19 dBA (sleep mode) noise output suits bedroom cooling and heating without disturbing sleep or study concentration.
        • Living rooms and open-plan spaces — 3.5kW capacity covers single rooms up to ~45 square metres; Coanda airflow keeps the space evenly cooled or heated without cold spots.
        • Home offices — precision 0.5°C control and 2-Area Intelligent Eye prevent overcooling or overheating during full-day work, reducing fatigue and improving productivity.
        • Rental properties and holiday homes — reliable 50+ year Daikin heritage and 5-year manufacturer warranty reduce call-back risk; simple remote control suits guests unfamiliar with split systems.
        • Renovations and new builds — retrofits easily into existing walls or pre-wired during frame stage; no ceiling penetrations or ductwork required, making it faster and cheaper than central ducted systems.
        • Regional and remote Australia — Daikin parts and service are available through authorized dealers nationwide, ensuring long-term support outside major cities.
        • Allergy and asthma sufferers — Sensitive Choice endorsement and enzyme blue filter remove airborne particulates and odours, improving air quality for respiratory-sensitive occupants.

        The Daikin FTXV35WVMA-KIT is not suitable for outdoor exposure, damp environments (bathrooms without extraction), or locations subject to salt spray or corrosive atmospheric conditions. The outdoor unit requires a solid, level mounting surface with clear airflow in front (minimum 1 metre). Do not install the indoor unit in direct sunlight, behind curtains, or in enclosed cabinets; blocked inlet/outlet reduces cooling and heating performance.

        Features:

        INDOOR UNIT FTXV35WVMA
        OUTDOOR UNIT RXV35WVMA
        Rated Capacity Cool (kW) 3.5
        Heat (kW) 3.7
        Capacity Range Cool (kW) 0.9 - 4.2
        Heat (kW) 0.9 - 5.5
        Indoor Airflow Rate (Hi) Cool (L/s) 175
        Heat (L/s) 183
        Indoor Fan Speeds   5 steps, quiet and automatic
        Energy Label / Star Ratings  (Hot / Avg / Cold) Cool 5 / 4.5 / 5 Stars
        Heat 3 / 2.5 / 2.5 Stars
        Front Panel Colour   White
        Power Supply   1 Phase, 220-240 V, 50 Hz
        Power Input (Rated) Cool (kW) 0.81
        Heat (kW) 0.77
        E.E.R./C.O.P. Cool/Heat 4.32 / 4.81
        TCSPF  (Residential) Hot / Avg / Cold 6.68 / 6.32 / 6.58
        HSPF  (Residential) Hot / Avg / Cold 4.63 / 4.47 / 4.13
        A.E.E.R / A.C.O.P Cool / Heat 4.29 / 3.81
        Dimensions (HxWxD) Indoor (mm) 285 x 770 x 223
        Outdoor (mm) 550 x 675 x 284
        Weight Indoor (kg) 9
        Outdoor  (kg) 30
        Compressor Type   Hermetically sealed swing type
        Refrigerant Type   R32
        Max Pipe Length (m) 20
        Max Level Difference (m) 15
        Pipe Sizes Liquid (mm) 6.4
        Gas (mm) 9.5
        Outdoor Operating Range (outdoor temp) Cool (°CDB) -10 to 46
        Heat (°CWB) -15 to 18
        Indoor Sound Level (H/SL) Cool (dBA) 42 / 19
        Heat (dBA) 42 / 20
        Outdoor Sound Level (H/L) Cool (dBA) 49 / 44
        Heat (dBA) 49 / 45
        Outdoor EPA Sound Power
        Level
        Cool (dBA) 61
         Heat (dBA) 61

        (FTXV35WVMA-KIT)

        The FTXV35WVMA is rated 3.5kW cooling and 3.7kW heating at standard test conditions (27°C indoor, 35°C outdoor for cooling; 20°C indoor, 7°C outdoor for heating). Output varies between 0.9–4.2kW cooling and 0.9–5.5kW heating depending on outdoor temperature and load. The 20-minute inverter boost function runs the compressor at full high capacity even if already operating flat out, for rapid temperature recovery on extreme days.

        Installation must be performed by a licensed electrician certified under the Ozone Protection and Synthetic Greenhouse Gas (Refrigerant) Management Act. Refrigerant handling (charging, leak testing, evacuation), electrical termination (240V wiring to switchboard/RCD), brazing of copper pipe joints, and final commissioning all require professional qualifications. DIY installation voids the 5-year Daikin warranty and breaches Australian electrical standards.

        The FTXV35WVMA ships with a wired wall remote and a basic infrared remote for manual operation. Daikin offers an optional WiFi-enabled mobile controller (sold separately) that enables smartphone scheduling and monitoring via the Daikin Comfort Control app. Compatibility with third-party smart home systems (Google Home, Alexa, Apple HomeKit) is not standard but may be achievable through third-party integration gateways—check Daikin Australia for current options.

        Running costs depend on electricity rates and cooling/heating load. The FTXV35WVMA has an Energy Efficiency Ratio (EER) of 4.32 for cooling and Coefficient of Performance (COP) of 4.81 for heating, meaning it delivers 4.3 to 4.8 units of cooling or heating energy for every 1 unit of electrical energy consumed. At 20 cents per kWh, full-load cooling costs approximately 19 cents per hour ($4.56 per 24 hours); real-world usage is typically lower (25–50% of full-load hours) depending on outdoor temperature and thermostat setting.

        Daikin Australia provides a 5-year parts and labour warranty on the FTXV35WVMA when professionally installed in domestic premises by a licensed electrician. The warranty covers compressor failure, refrigerant leaks, and manufacturing defects. In-home servicing is available through authorized Daikin dealers; you are not required to remove or return the unit. Warranty terms and exclusions apply; contact Daikin Australia or your installer for full warranty documentation.

        You can purchase the Daikin FTXV35WVMA-KIT online from Sparky Direct. Delivery is available to select postcodes — just check the product page to see if yours is covered. If your area isn't covered for delivery, click-and-collect from Caboolture, Queensland is available.

        100-Day Fuss-Free Returns
        We want you to love what you buy—but if you change your mind, that’s okay too. That’s why Sparky Direct offers a 100-day money-back guarantee.

        • Items must be unused, with all parts, accessories, and original packaging.
        • We can’t accept returns if the product is damaged, incomplete, or not in resalable condition.
        • Proof of purchase is required.
        • Return shipping is the responsibility of the customer.

        If your item isn’t in its original condition, please contact us before returning it—we might save you time and money.


        All products come with a manufacturer’s or supplier’s warranty

        • Warranty starts from the Invoice Date
        • Some suppliers offer in-home warranties and handle claims directly, so you won’t need to uninstall or return the product. Chat with us to check if your product qualifies.
        • Sparky Direct isn’t responsible for losses caused by product failure.
        • Warranties are void if products aren’t installed by a licensed electrician.

        Damaged or Faulty Goods
        If your order arrives damaged or is faulty, let us know within 24 hours.

        • Sparky Direct will pay for return shipping via an emailed return label.
        • If the fault is confirmed, we will send you a replacement item or provide a refund.

        Contact us via our chat to arrange the return.


        Exclusions
        We can’t accept returns for:

        • Items that have been installed, modified, or used
        • Clearance, End of life, Discontinued, or special order items (unless faulty)
        • All PPE Items
        • Goods returned without original packaging or proof of purchase

        How to Request a Return

        1. Contact our customer service team with your order number.
        2. Confirm it’s eligible under our return or warranty policy.
        3. Pack the item securely and return it using a trackable service.
        4. Once we receive and inspect it, we’ll process your refund or replacement.

        Warranty starts from the Invoice Date

        5-Year Warranty
        The Daikin '5-Year Parts and Labour' warranty applies to all Daikin split, multi-split and ducted air conditioners professionally installed in domestic premises in Australia, so when you choose Daikin, you do so with the confidence of knowing you have many years of worry-free comfort ahead.

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Daikin
        SKU FTXV35WVMA-KIT
        Package Weight 0.010kg
        TYPE VALUE
        Type Air Conditioning
        Colour White
        Complete / Skin Only / Grid Plate Only Complete
        Mounting Wall Mount
        Voltage (V) 240
