Daikin | 9.0kW XL Series Inverter Split System Air Conditioner | R32 Reverse Cycle

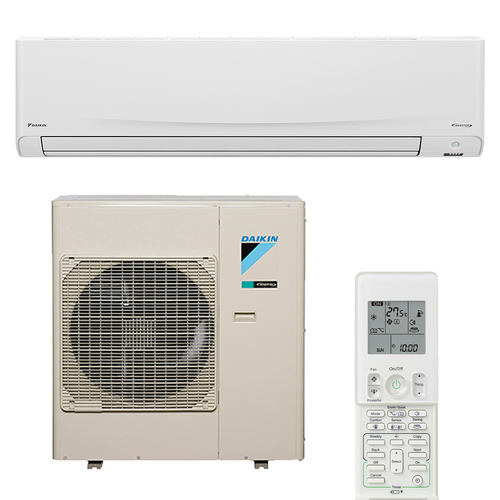

The Daikin FTXV90WVMA-KIT is a 9.0kW reverse cycle split system air conditioner rated for cooling and heating operation, designed for large open-plan spaces and residential applications. The FTXV90WVMA-KIT combines the indoor unit FTXV90WVMA with the outdoor unit RXV90WVMA and operates on R32 refrigerant, which carries a 66% lower Global Warming Potential Factor than R410A. Installation requires a licensed air conditioning technician and compliance with AS/NZS 3823.1 and related standards.
Large open-plan living areas, modern homes, and commercial residential spaces often demand higher cooling and heating capacity from a single point. Split systems have become the standard solution for multi-room comfort, but undersized units create temperature inconsistency and frequent cycling. The 9.0kW FTXV90WVMA-KIT is specified for properties where ducted systems are impractical, building codes prevent additional external units, or where a single high-capacity indoor unit can cover the primary living zone efficiently.
Licensed air conditioning contractors value Daikin's XL series for its inverter-driven compressor technology, which adjusts capacity in real time rather than cycling on and off, reducing energy consumption during partial-load operation and improving comfort. The 20-minute boost function provides surge cooling or heating when occupants arrive on hot or cold days, while Econo mode protects household circuits by limiting power draw when other appliances operate simultaneously. The Intelligent Eye occupancy sensor enables energy-saving operation when the room is vacant for 20 minutes, a margin that appeals to rentals and properties with irregular occupancy patterns. Daikin's 5-year parts and labour warranty (professional installation) provides long-term cost certainty on this high-capacity system, and the enzyme-blue air purification filter traps particulates without requiring replacement during the warranty period, a cost saving for facilities managers.
Features
- Rated capacity 9.0kW cooling, 10.3kW heating — suited to living areas of 40–60m² in well-insulated homes; output reduces below rated value as outdoor temperature approaches operating limits (cooling: -10 to 46°C, heating: -15 to 18°C outdoor).
- R32 refrigerant — 66% lower Global Warming Potential Factor than R410A, reducing ozone-depletion risk and environmental impact from potential leakage.
- Inverter compressor with 20-minute boost — capacity modulates continuously to match load, and boost mode provides 20-minute surge cooling or heating even when the compressor runs at high capacity.
- Intelligent Eye occupancy sensor — automatically triggers energy-saving mode 20 minutes after the room is unoccupied, cutting power draw during absences without requiring manual intervention.
- Comfort mode airflow direction — airflow streams upward during cooling to prevent cold draughts on occupants, and downward during heating to push warm air toward the floor and reduce ceiling-level heat loss.
- 3-D airflow with horizontal and vertical swing — discharge louvres move in combination patterns to circulate air throughout larger rooms, reducing dead zones and temperature variation.
- Enzyme-blue air purification filter — traps microscopic particles, decomposes odours, and deactivates bacteria without requiring replacement during the warranty period.
- Programme dry function — reduces humidity while controlling temperature and airflow; automatically switches to cooling if room temperature rises above target during drying.
- Econo mode power limiting — prevents circuit-breaker trips by capping total power draw when household appliances (dishwashers, hot water, pool pumps) operate simultaneously with cooling or heating.
- Five indoor fan speeds, quiet and automatic — manual and automatic fan control with low-noise operation at all speeds; silent mode rated 38dBA (cooling) and 35dBA (heating).
- Indoor dimensions 329mm H × 1240mm W × 278mm D, weight 19kg — compact wall-mounted indoor unit; outdoor unit 990mm H × 940mm W × 320mm D, weight 77kg requires structural assessment and professional install.
- Max pipe run 30m, max height difference 20m — long pipe lengths and height changes are feasible on large properties; run longer than 30m requires additional refrigerant charge per AS/NZS 3823.1.
Where to use
- Large open-plan living and entertaining areas — the 9.0kW capacity covers spaces of 40–60m² where a single central unit must condition multiple zones without interior walls to divide the load.
- Main bedroom suites and dual-occupancy homes — high heating capacity (10.3kW) suits bedrooms in climates with cold winters where split systems replace inefficient space heaters and electric blankets.
- Home offices and media rooms — Intelligent Eye mode reduces energy during work hours when only one occupant is present, while boost mode quickly brings temperature down after equipment heat-up.
- Properties where ducted systems are not feasible — heritage homes, apartments, and buildings where ductwork installation breaches planning or structural requirements often rely on high-capacity splits.
- New builds and extensions with dedicated external wall space — the outdoor unit requires a solid wall mount, clear airflow on all sides, and absence of direct afternoon sun; check building code requirements for noise limits in residential zones.
- Rental properties with high occupancy turnover — Intelligent Eye and Econo mode reduce operating costs during vacant periods; enzyme-blue filter eliminates replacement parts cost during hold periods.
- Climates with moderate to cold winters and warm to hot summers — Australia's coastal and inland temperate zones suit this model; tropical zones may favour larger capacity, and very cold inland regions may require auxiliary heating.
The Daikin FTXV90WVMA-KIT is not suitable for outdoor-mounted installation, exposed weather zones without a solid roof or eaves, or areas subject to salt spray or corrosive atmospheres. The unit must be installed by a licensed air conditioning technician; self-installation voids the 5-year warranty and breaches electrical safety standards in most states. High-rise apartments and strata-titled properties often restrict outdoor unit placement; check with body corporate or strata before ordering.
Features:
| INDOOR UNIT |
FTXV90WVMA |
| OUTDOOR UNIT |
RXV90WVMA |
| Rated Capacity |
Cool (kW) |
9.0 |
| Heat (kW) |
10.3 |
| Capacity Range |
Cool (kW) |
2.0-11.2 |
| Heat (kW) |
1.9-12.0 |
| Indoor Airflow Rate (H) |
Cool (kW) |
440 |
| Heat (l/s) |
425 |
| Indoor Fan Speeds |
|
5 steps, quiet and automatic |
| Star Rating (Hot/Avg/Cold) |
Cool |
3.0/3.0/3.0 |
| ZERL (Residential) |
Heat |
2.5/2.0/1.5 |
| Front Panel Colour |
|
Ivory White |
| Power Supply |
|
1 phase, 220-240V, 50Hz |
| Power Input (Rated) |
Cool (kW) |
2.65 |
| Heat (kW) |
3.15 |
| E.E.R/C.O.P |
Cool/Heat |
3.40/3.27 |
| TCSPF (Residential) |
Hot/Avg/Cold |
4.99/4.66/4.90 |
| HSPF (Residential) |
Hot/Avg/Cold |
4.10/3.61/3.15 |
| A.E.E.R/A.C.O.P |
Cool/Heat |
3.38/3.25 |
| Dimensions (HxWxD) |
Indoor (mm) |
329x1240x278 |
| Outdoor (mm) |
990x940x320 |
| Weight |
Indoor (kg) |
19 |
| Outdoor (kg) |
77 |
| Compressor Type |
|
Hermetically Sealed Swing Type |
| Refrigerant Type |
|
R32 |
| Max Pipe Length |
(m) |
30 |
| Max Level Difference |
(m) |
20 |
| Pipe Sizes |
Liquid (mm) |
6.4 |
| Gas (mm) |
15.9 |
| Outdoor Operating Range |
Cool (°CDB) |
-10 to 46 |
| Heat (°CWB) |
-15 to 18 |
| Indoor Sound Level (H/SL) |
Cool (dBA) |
53/38 |
| Heat (dBA) |
52/35 |
| Outdoor Sound Level (H/SL) |
Cool (dBA) |
54/51 |
| Heat (dBA) |
55/51 |
| Outdoor EPA Sound Power Level (H) |
Cool (dBA) |
66 |
| Heat (dBA) |
67 |
|
