Discontinued | Replacement Product
Description:

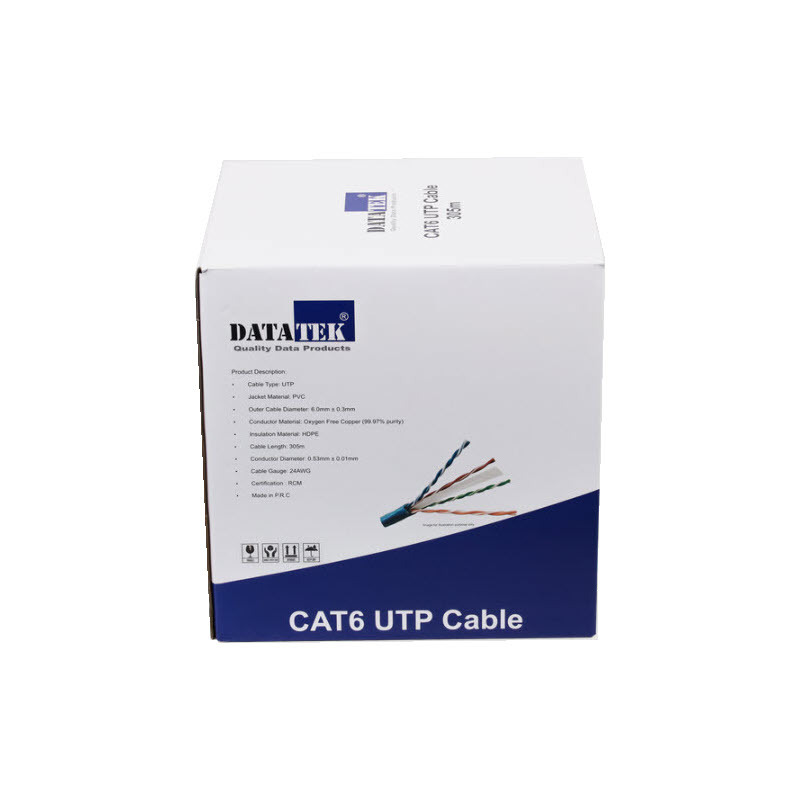

The DATATEK 03JDCAT6BL is a premium CAT6 UTP cable, perfect for electricians and network professionals. This 305m blue cable is designed for robust and efficient data transmission, it features a 99.97% purity oxygen-free copper conductor, ensuring minimal signal loss and maximum performance.
The cable includes a translucent PE separator with a 500D polyester rip cord and a customised PVC outer sheath, which is CE CPR Eca flame retardant class certified, offering both durability and safety. The four pairs of HDPE insulated wires are colour-coded for easy identification: Orange - White/Orange, Blue - White/Blue, Green - White/Green, Brown - White/Brown.
This cable meets the IEC 60332-1-2 standard for the Vertical Fire Propagation Test, ensuring it's safe for use in various environments. It's also been low temperature and heat shock tested, showing no signs of cracking, further testament to its quality and resilience.
Features:
FAQ:
Q: What is the main advantage of the oxygen-free copper conductor?
A: It provides enhanced signal integrity and minimizes signal loss for efficient data transmission.
Q: Is this cable suitable for outdoor installations?
A: Yes, its flame-retardant properties and durability make it suitable for various environments, including outdoor settings.
Q: How does the color-coding of wires help in installations?
A: The colour-coded wires simplify the identification process, making installations quicker and more efficient.
Discontinued | Replacement Product
(03JDCAT6BL)
100-Day Fuss-Free Returns
We want you to love what you buy—but if you change your mind, that’s okay too. That’s why Sparky Direct offers a 100-day money-back guarantee.
If your item isn’t in its original condition, please contact us before returning it—we might save you time and money.
All products come with a manufacturer’s or supplier’s warranty
Damaged or Faulty Goods
If your order arrives damaged or is faulty, let us know within 24 hours.
Contact us via our chat to arrange the return.
Exclusions
We can’t accept returns for:
How to Request a Return
Warranty starts from Invoice Date
Domestic Use: 10 Year
Commercial Use: 10 Year
Warranty Method: Return to Sparky Direct
| Specification | Details |
|---|---|
| Conductor Material | Oxygen-free copper (99.97% purity) |
| Conductor Diameter | 0.53 mm ± 0.01 mm |
| Insulation Material | HDPE |
| Insulation Min. Average Thickness | 0.21 mm |
| Insulation Diameter | 0.95 mm ± 0.1 mm |
| Insulation Colour (4 Pairs) | Blue, white/blue; orange, white/orange; green, white/green; brown, white/brown |
| Separator Material | PE |
| Separator Specification | Translucent 4.5 x 0.4 mm |
| Rip Cord Material | Polyester |
| RipCord Specification | 500D |
| Sheath Material | PVC |
| Sheath Min. Average Thickness | 0.5 mm |
| Sheath Diameter | 6.0 mm± 0.3 mm |
| Sheath Colour | White |
| Max. DC Resistance of a Single Conductor | 8.70/100 m |
| Min. Insulation Resistance | 5000MΩ·km |
| Max. DC Resistance Unbalance | 2% (pair intra), 4% (pairs inter) |
| Dielectric Strength | No breakdown with lKV DC for 1 min |
| Characteristic Impedance | 100 ± 150Ω |
| Near End Cross Talk | ≥39.30 dB/100 m@250 MHz |
| Max. Attenuation | 34.8 dB/100 m@250 MHz |
| Return Loss | ≥17.3 dB/100 m@250 MHz |
| Tensile Strength | Sheath≥13.5 MPa, insulation≥16 MPa |
| Elongation at Break | Sheath≥150%, insulation≥300% |
| Installation Bending Radius | >8 times of outer cable diameter |
| Conductor Elongation at Break | ≥10% |
| Shrinkage of Insulation | ≥5% |
| Colour Migration Resistance of Insulation | No migration |
| Sheath Tensile Strength and Elongation at Break after Aging | ≥12.5 MPa, ≥100% |
| Low Temperature Bending Test | No cracking after the test |
| Heat Shock Test | No Cracking after the test |
| Operating Temperature | -20°C to +50°C |
| Installation Temperature | 0°C to +50°C |
| Storage Temperature and Humidity | -10°C to +40°C, <60% (RH) |
| Vertical Fire Propagation Test | Comply with IEC 60332-1-2 |
| Cable Length | 305.0 m ± 1.5 m |
| Gross Weight | ≥11.5 kg |
| Certification | RCM |
These specifications and characteristics outline physical, mechanical, electrical details.
| Brand | DataTek |
| SKU | 03JDCAT6BL |
| Barcode # | 9340591017133 |
| Package Weight | 14.100kg |
| Package Width | 0.450m |
| Package Height | 0.250m |
| Package Length | 0.450m |
| TYPE | VALUE |
|---|---|
| Type | Cable |
| Brand | DATATEK |
| Colour | Blue |
