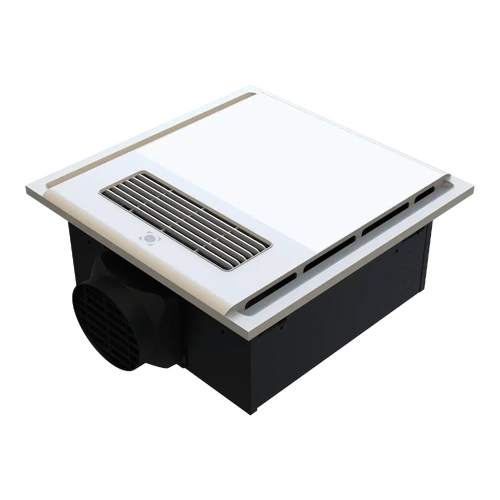

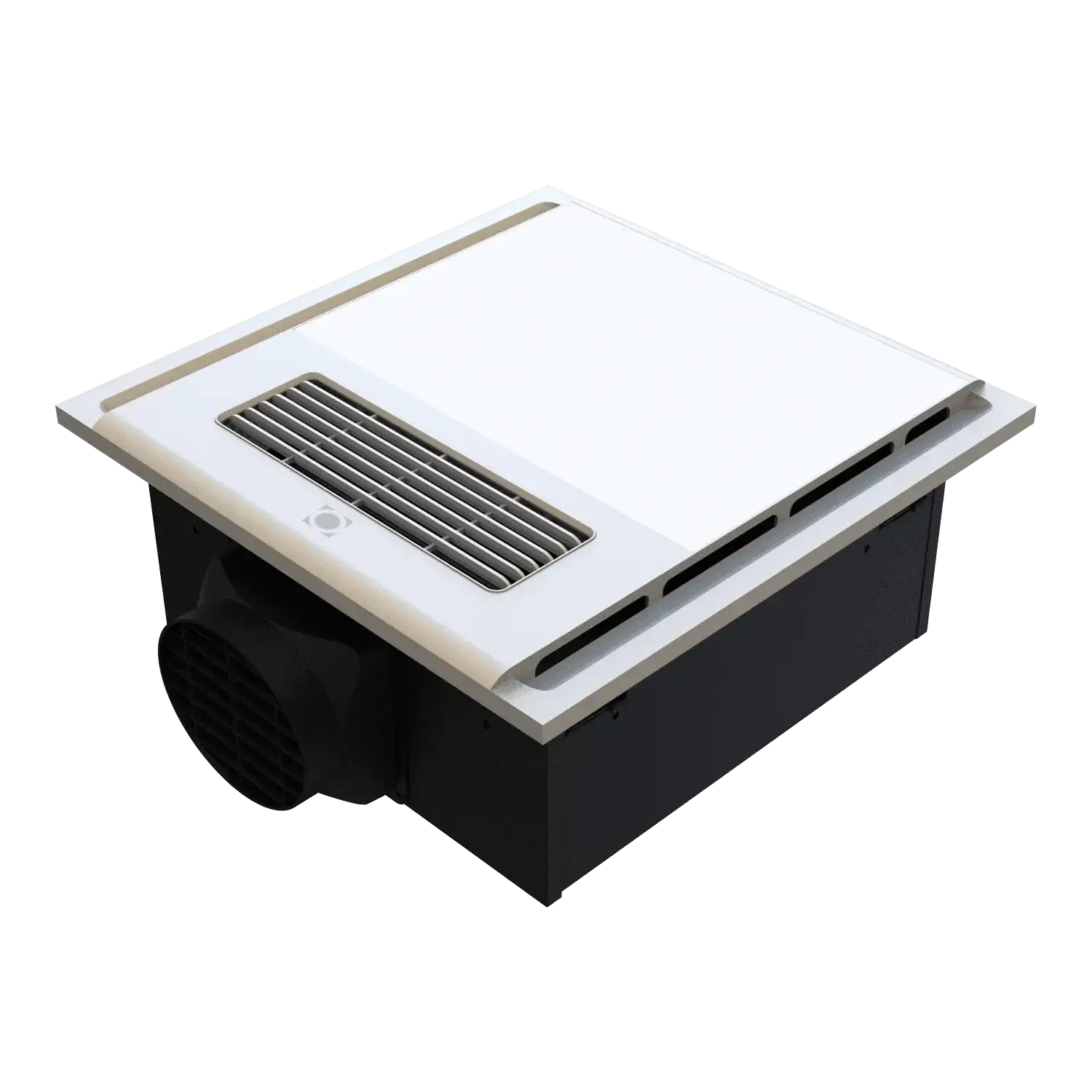

The Domus 56024 Heatcore is a retrofit-ready 4-in-1 bathroom unit that replaces older 3-in-1 infrared models with modern ceramic heating, quiet operation, and a flush-mounted finish. With a 2150W PTC heater, 300m³/hr extraction, and Tri-CCT LED lighting, it delivers comfort and energy efficiency in one smart upgrade.
Designed for fast retrofits, it fits most existing cutouts (330 x 350mm) and uses a 390 x 390mm fascia to cover and modernise the space. The included digital wall controller gives you simple access to all modes — including an “All-Off” button and a built-in 2-hour safety shut-off. No new wiring needed — just connect two actives from your old 5-core cable.
Perfect for updating tired heater/fan/lights with a quieter, smarter, better-looking solution.
56024 Features
56024 FAQ
Q: Will this fit where my old 3-in-1 infrared heater was?
A: Yes, it's designed to retrofit into common 330 x 350mm cutouts with no major modifications.
Q: Do I need to run new switch wires?
A: No, it connects using two actives from the existing 5-core cable — no additional wiring required.
Q: Can I adjust the light colour?
A: Yes, the Tri-CCT light can be set to warm, neutral, or cool white during installation.
(56024)
100-Day Fuss-Free Returns
We want you to love what you buy—but if you change your mind, that’s okay too. That’s why Sparky Direct offers a 100-day money-back guarantee.
If your item isn’t in its original condition, please contact us before returning it—we might save you time and money.
All products come with a manufacturer’s or supplier’s warranty
Damaged or Faulty Goods
If your order arrives damaged or is faulty, let us know within 24 hours.
Contact us via our chat to arrange the return.
Exclusions
We can’t accept returns for:
How to Request a Return
Warranty starts from the Invoice Date
5 Year Domus In-Home Warranty
Specification | Details |
---|---|
Product Name | HEATCORE 4-in-1 Retrofit Bathroom Heater |
Item Numbers | 56024 (White) |
Input Voltage | 240 V AC |
Total Power | 2250 W |
Heat Output | 2150 W (PTC Heating Element) |
Fan Motor Power | 60 W AC |
Air Extraction Rate | 300 m³/h |
Light Type | 12 W LED Tri-colour |
Colour Temperatures | 3000K / 4000K / 5000K (Changeable) |
Lumen Output | 850 lm (3000K), 950 lm (4000K), 900 lm (5000K) |
CRI | ≥80 |
IP Rating | IPX2 |
Noise Level | ≤46 dB |
Cutout Size | 330 x 350 mm |
Fascia Size | 390 x 390 mm |
Duct Size | 100 mm |
Functions | Heater, Exhaust Fan, Circulating Fan, Light |
Features | Heat Breeze Tech, Auto-Off After 2 Hours, All-Off Button |
Accessories Included | 6-Switch Digital Wall Controller, 3m Duct, Exterior Grille |
Warranty | 5 Years In-Home |
These specifications and characteristics outline physical, mechanical, electrical details.
Brand | Domus |
SKU | 56024 |
Model # | 56024 |
Barcode # | 9330772560244 |
Package Weight | 13.300kg |
Package Width | 0.230m |
Package Height | 0.470m |
Package Length | 0.492m |
TYPE | VALUE |
---|---|
Type | Bathroom Heat/Fan |
Brand | Domus |
Range | Heatcore |
Colour | White |
Fascia Size (mm) | 390x390mm |
Light Wattage (W) | 12W LED |
Heat Wattage (W) | 2150W |
Motor Wattage (W) | 60W AC |
Input Voltage (V) | 240V AC |
Duct Size (mm) | 100mm |
Heat Type | PTC Heating Element |
Colour Range (CCT) | 3000K - 4000K - 5000K (Changeable) |
Air Extraction (m³/hr) | 300m3 /h |
Power (W) | 2250W |
Cut Out (mm) | 330x350mm |
IP Rating | IPX2 |
CRI | ≥80 |
