        Elcon MC4PR-10MM | MC4-Evo2 Connector Pair | 10mm² | 1500V

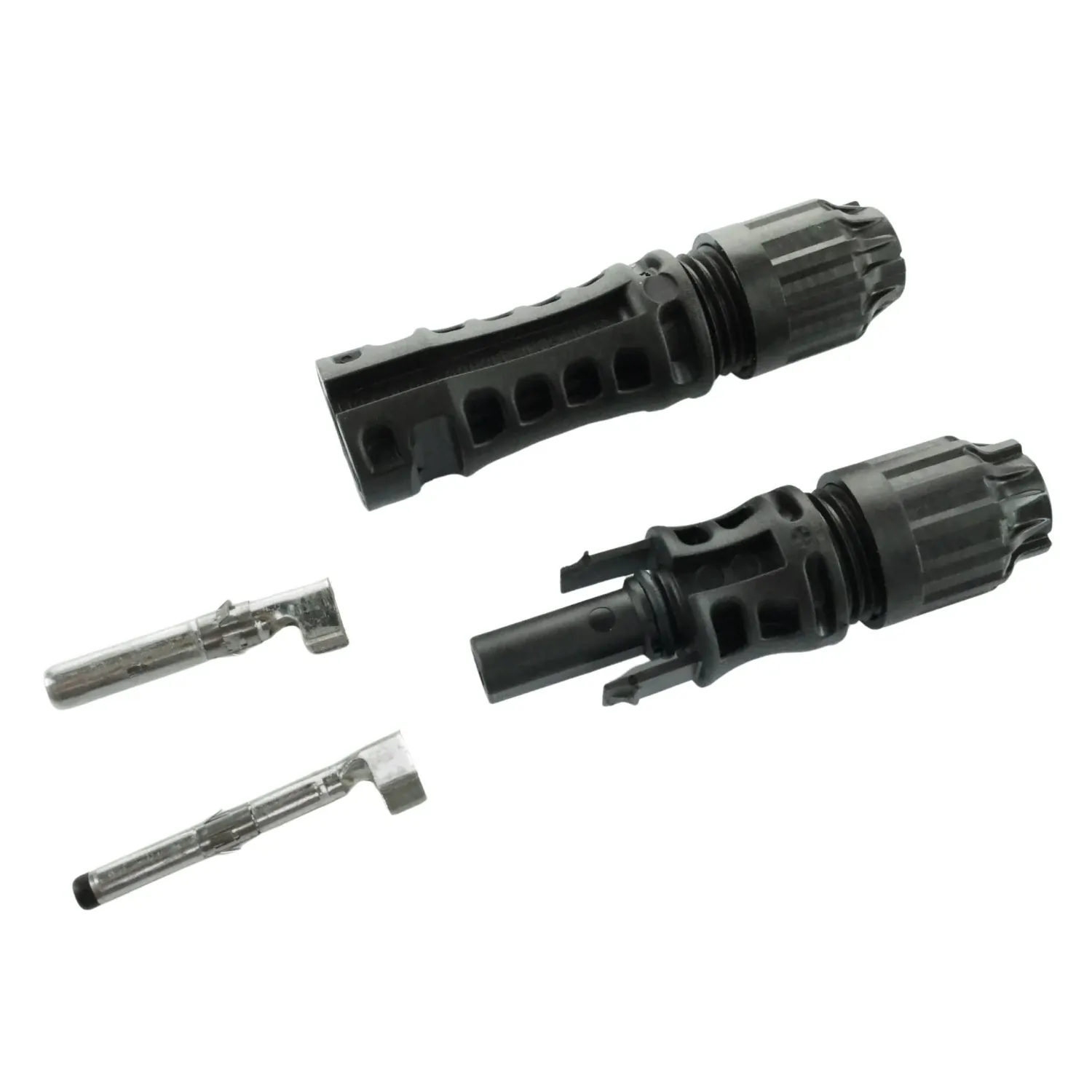

        The Elcon MC4PR-10MM EVO2 Connector Pair is a 10 mm² (8 AWG) MC4 male and female coupler set designed for high-current solar PV systems. Rated at 69 A @ 85 °C and up to 1500 V DC, these connectors offer exceptional conductivity and durability for professional-grade installations.

        Using Stäubli’s MULTILAM contact system, the connectors deliver ultra-low contact resistance (≤ 0.2 mΩ), ensuring minimal power loss even in high-load conditions. Certified to IEC 62852, UL 6703, and other international standards, they are IP65/IP68 rated, UV and ammonia resistant, and built to withstand salt mist and harsh environmental conditions. Designed for USE2 or PV-Wire, with a standard crimp termination for reliable field installation.

        Elcon MC4PR-10MM Features

        • Rated 69 A @ 85 °C: High-current performance with 10 mm² (8 AWG) cable
        • 1500 V DC rating: Fully compliant with IEC 62852 & UL 6703
        • IP65/IP68 protection: Sealed against dust and water when mated
        • MULTILAM contact system: Provides ≤ 0.2 mΩ contact resistance
        • –40 °C to +85 °C range: Operates reliably in all environments

        Where to use this Elcon MC4PR-10MM

        • Solar PV arrays: For 10 mm² high-current cabling
        • Battery energy storage systems (BESS): Using MC4-compatible connectors
        • Commercial & industrial solar sites: Operating up to 1500 V DC

        (MC4PR-10MM)

        Yes, the MC4PR-10MM is available through Sparky Direct with quick delivery across Australia.

        It connects 10 mm² solar cables safely and efficiently, ensuring a weatherproof, low-loss link between panels, inverters, or batteries.

        It uses the advanced Stäubli MULTILAM system, providing lower contact resistance and higher current handling for large-scale solar systems.

        These connectors are designed for 10 mm² (8 AWG) solar cables, ideal for high-current PV wiring.

        They use standard MC4-compatible crimp tools for safe, professional terminations. Installation should be completed by a licensed solar technician.

        Yes, they’re commonly used in battery energy storage systems (BESS) and hybrid solar setups rated up to 1500 V DC.

        100-Day Fuss-Free Returns
        We want you to love what you buy—but if you change your mind, that’s okay too. That’s why Sparky Direct offers a 100-day money-back guarantee.

        • Items must be unused, with all parts, accessories, and original packaging.
        • We can’t accept returns if the product is damaged, incomplete, or not in resalable condition.
        • Proof of purchase is required.
        • Return shipping is the responsibility of the customer.

        If your item isn’t in its original condition, please contact us before returning it—we might save you time and money.

        All products come with a manufacturer’s or supplier’s warranty

        • Warranty starts from the Invoice Date
        • Some suppliers offer in-home warranties and handle claims directly, so you won’t need to uninstall or return the product. Chat with us to check if your product qualifies.
        • Sparky Direct isn’t responsible for losses caused by product failure.
        • Warranties are void if products aren’t installed by a licensed electrician.

        Damaged or Faulty Goods
        If your order arrives damaged or is faulty, let us know within 24 hours.

        • Sparky Direct will pay for return shipping via an emailed return label.
        • If the fault is confirmed, we will send you a replacement item or provide a refund.

        Contact us via our chat to arrange the return.

        Exclusions
        We can’t accept returns for:

        • Items that have been installed, modified, or used
        • Clearance, End of life, Discontinued, or special order items (unless faulty)
        • All PPE Items
        • Goods returned without original packaging or proof of purchase

        How to Request a Return

        1. Contact our customer service team with your order number.
        2. Confirm it’s eligible under our return or warranty policy.
        3. Pack the item securely and return it using a trackable service.
        4. Once we receive and inspect it, we’ll process your refund or replacement.

        Warranty starts from Invoice Date

        Domestic Use: 1 Year
        Commercial Use: 1 Year
        Warranty Method: Return to Sparky Direct

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Elcon
        SKU MC4PR-10MM
        Model # MC4PR-10MM
        Package Weight 0.200kg
        Package Width 0.050m
        Package Height 0.050m
        Package Length 0.110m
        View Datasheet
        TYPE VALUE
        Type Solar
        Brand Elcon
        Colour Black
        Rated Current (A) 69
        Voltage (V) 1500
        Cable Size (mm²) 10
        IP Rating Mated IP65/IP68 (1h/1m)
        IP Rating Unmated IP2X
