        Learn more by watching our Eaton FAZ-C10-2-DC | 10A DC Circuit Breaker 2 Pole 10kA video.

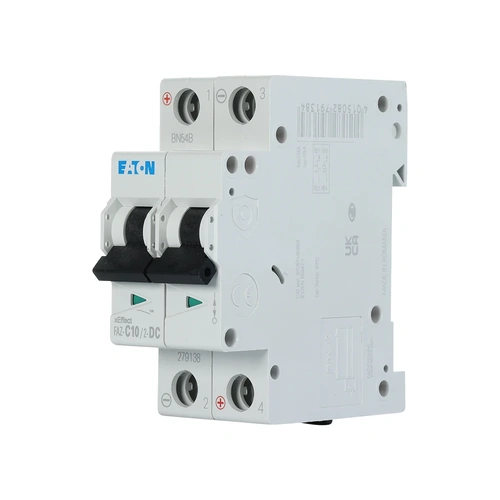

        Eaton FAZ-C10-2-DC | 10A DC Circuit Breaker 2 Pole 10kA

        The Eaton FAZ-C10-2-DC circuit breaker is a compact, efficient, and reliable solution for DC applications. Rated for up to 250V DC per pole, this two-pole miniature circuit breaker ensures robust performance with a short-circuit breaking capacity of 10kA. Its "C" tripping characteristic is ideal for applications with moderate inrush currents, offering flexibility across a range of scenarios.

        Engineered for durability, the FAZ-C10-2-DC supports up to 10,000 electrical operations and operates in temperatures from -25°C to 75°C. The breaker features twin-purpose terminals, accommodating conductors from 1mm² to 25mm², and is polarity-dependent to ensure correct orientation during installation. Compliant with IEC/EN 60947-2 standards, it provides reliable protection and safety for DC systems.

        Eaton FAZ-C10-2-DC Features:

        • Dual Poles: Two-pole configuration for comprehensive DC protection.
        • Voltage Rating: Operates at up to 250V DC per pole.
        • Rated Current: 10A, suitable for various DC applications.
        • High Durability: Supports up to 10,000 electrical operations for long-term use.
        • Tripping Characteristic: Type "C," suitable for loads with moderate inrush currents.
        • Compact Design: Measures 80mm in depth, 36mm in width, and 75.5mm in height.
        • User-Friendly Terminals: Twin-purpose terminals support conductor sizes from 1mm² to 25mm².
        • Impulse Withstand Voltage: Rated at 4kV for enhanced safety.
        • Environmental Tolerance: Operates efficiently in ambient temperatures from -25°C to 75°C.

        Eaton FAZ-C10-2-DC FAQ:

        Q: What is the rated voltage for this circuit breaker?
        A: The breaker is rated for up to 250V DC per pole.

        Q: Is this circuit breaker suitable for high short-circuit conditions?
        A: Yes, it has a rated short-circuit breaking capacity of 10kA, meeting IEC 60947-2 standards.

        Q: What type of tripping characteristic does this model have?
        A: It features a "C" tripping characteristic, ideal for applications with moderate inrush currents.

        Q: What conductor sizes are compatible with this breaker?
        A: The twin-purpose terminals accommodate conductor sizes ranging from 1mm² to 25mm².

        Q: How durable is this circuit breaker?
        A: It is rated for up to 10,000 electrical operations, ensuring long-lasting performance.

        (FAZ-C10-2-DC)

        100-Day Fuss-Free Returns
        We want you to love what you buy—but if you change your mind, that’s okay too. That’s why Sparky Direct offers a 100-day money-back guarantee.

        • Items must be unused, with all parts, accessories, and original packaging.
        • We can’t accept returns if the product is damaged, incomplete, or not in resalable condition.
        • Proof of purchase is required.
        • Return shipping is the responsibility of the customer.

        If your item isn’t in its original condition, please contact us before returning it—we might save you time and money.

        All products come with a manufacturer’s or supplier’s warranty

        • Warranty starts from the Invoice Date
        • Some suppliers offer in-home warranties and handle claims directly, so you won’t need to uninstall or return the product. Chat with us to check if your product qualifies.
        • Sparky Direct isn’t responsible for losses caused by product failure.
        • Warranties are void if products aren’t installed by a licensed electrician.

        Damaged or Faulty Goods
        If your order arrives damaged or is faulty, let us know within 24 hours.

        • Sparky Direct will pay for return shipping via an emailed return label.
        • If the fault is confirmed, we will send you a replacement item or provide a refund.

        Contact us via our chat to arrange the return.

        Exclusions
        We can’t accept returns for:

        • Items that have been installed, modified, or used
        • Clearance, End of life, Discontinued, or special order items (unless faulty)
        • All PPE Items
        • Goods returned without original packaging or proof of purchase

        How to Request a Return

        1. Contact our customer service team with your order number.
        2. Confirm it’s eligible under our return or warranty policy.
        3. Pack the item securely and return it using a trackable service.
        4. Once we receive and inspect it, we’ll process your refund or replacement.

        Warranty starts from Invoice Date

        Domestic Use: 1 Year
        Commercial Use: 1 Year
        Warranty Method: Return to Sparky Direct

        Specification Details
        Model FAZ-C10/2-DC
        Rated Current 10 A
        Voltage Type DC
        Rated Voltage 250 V DC (per pole)
        Breaking Capacity 10 kA (IEC/EN 60947-2)
        Number of Poles 2
        Release Characteristic C
        Dimensions (H x W x D) 75.5mm x 36mm x 80mm
        Mounting Method Top-hat rail (IEC/EN 60715)
        IP Rating IP20
        Compliance Standards IEC/EN 60947-2, EN45545-2, RoHS Conform
        Weight 0.237 kg

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Eaton
        SKU FAZ-C10-2-DC
        Barcode # 4015082791384
        Package Weight 0.240kg
        Package Width 0.075m
        Package Height 0.040m
        Package Length 0.090m
        View Datasheet
        View Manual
        TYPE VALUE
        Type Circuit Protection
        Brand Eaton
        Rated Current (A) 10
        Height (mm) 75.5
        Width (mm) 36
        Length (mm) 80
        Mounting Din Rail
        Voltage (V) 250 DC
        Number of Poles 2
        Breaking Capacity 10kA
        Curve C
