        Garland UTPL6BL305RBBW | Cat6 4pr 24AWG UTP Dataconnect 305MTR | Blue
        $192.50 $175.00 ex. GST
        Description

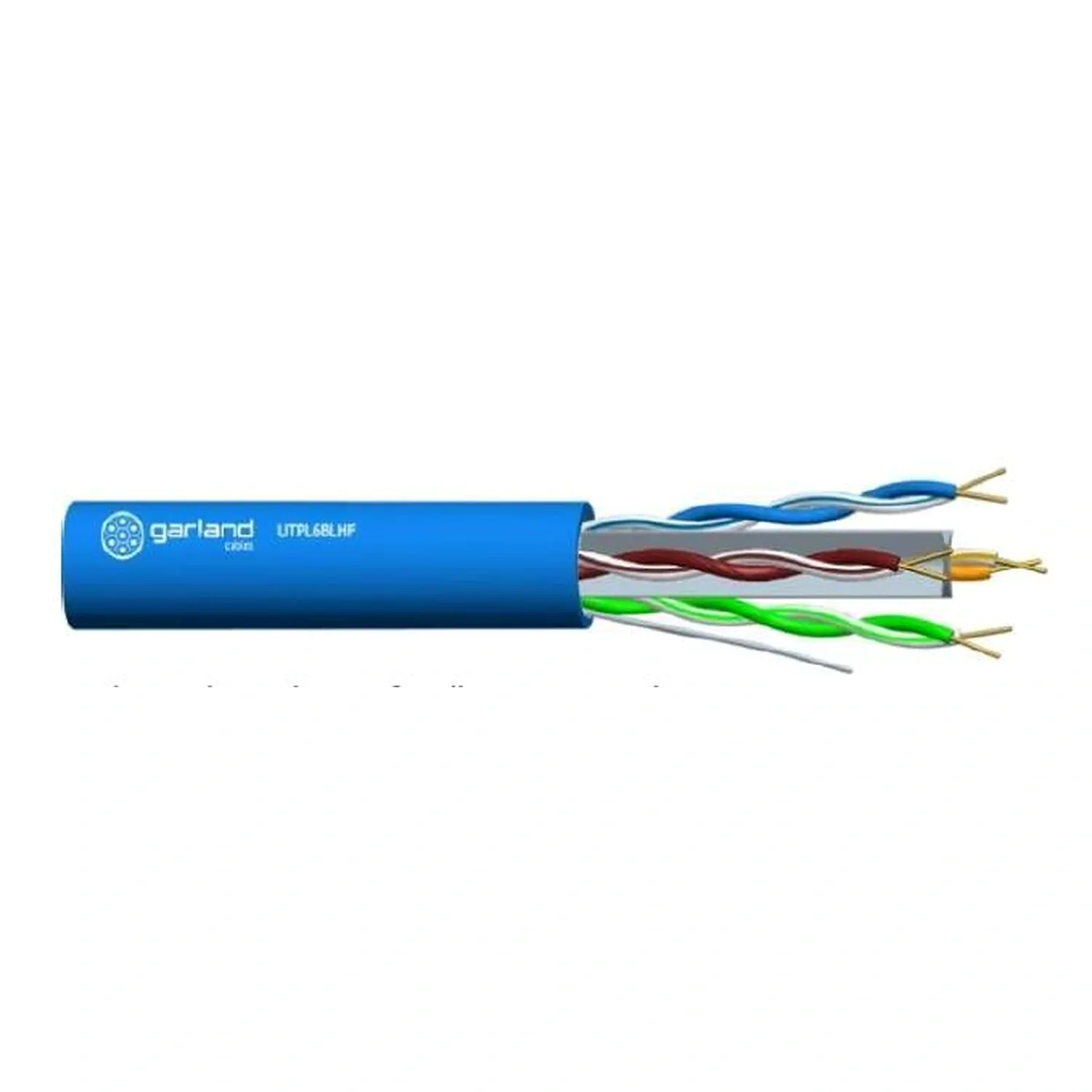

        Garland UTPL6BL305RBBW | Cat6 4pr 24AWG UTP Dataconnect 305MTR | Blue


        Description:

        Experience seamless and high-speed data connections with the Garland UTPL6BL305RBBW Cat6 4pr 24AWG UTP Dataconnect 305MTR. This superior data cable is designed to meet and exceed industry standards, ensuring you get reliable and lightning-fast connectivity for all your networking needs.

        Benefits That Set Garland UTPL6BL305RBBW Apart:

        • Industry-Grade Standards: This cable complies with ANSI/TIA 568-C.2, ISO/IEC 11801-2, AS/NZS 3080, AS/CA S-008, and AS 1049 standards. You can trust that it meets the highest industry benchmarks.

        • Versatile Applications: Whether it's for horizontal or fixed wiring in structured cabling or computer networks, this Cat6 cable shines. It's ideal for operating speeds up to 1 Gbit on Class E links, making it perfect for 10BaseT, 100BaseT, and 1000BaseT Ethernet applications.

        • Robust Construction: The Garland UTPL6BL305RBBW boasts a solid 24 AWG PACW, UTP (Unshielded Twisted Pair) design featuring 4 pairs of meticulously twisted wires. A cross-web separator enhances performance, while a rip cord ensures easy installation. The durable PE (Polyethylene) insulation and PVC sheath guarantee longevity and optimal signal integrity.

        FAQ:

        Q: What standards does this cable meet? A: The Garland UTPL6BL305RBBW complies with ANSI/TIA 568-C.2, ISO/IEC 11801-2, AS/NZS 3080, AS/CA S-008, and AS 1049 standards, ensuring it meets the highest industry benchmarks.

        Q: What applications is this cable suitable for? A: This cable is suitable for horizontal and fixed wiring in structured cabling and computer networks. It's optimized for operating speeds up to 1 Gbit on Class E links, making it ideal for 10BaseT, 100BaseT, and 1000BaseT Ethernet applications.

        Q: Can I expect long-lasting performance from this cable? A: Absolutely. The Garland UTPL6BL305RBBW is built with high-quality materials, including durable PE insulation and PVC sheath, ensuring both longevity and optimal signal integrity.

        Ensure your data connections are swift, reliable, and compliant with industry standards. Invest in the Garland UTPL6BL305RBBW Cat6 4pr 24AWG UTP Dataconnect 305MTR, and enjoy the peace of mind that comes with superior data connectivity.

        (UTPL6BL305RBBW)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 1 Year
        Commercial Use: 1 Year
        Warranty Method: Return to Sparky Direct

        Features
        Construction
        Conductor Material PACW
        Conductor Size 24AWG
        Conductor Stranding Solid
        Insulation Pairs 4
        Insulation Material HDPE
        Insulation Colour Blue/White-Blue Stripe
        Green/White-Green Stripe
        Orange/White-Orange Stripe
        Brown/White-Brown Stripe
        Insulation Nominal Thickness(mm) 0.2
        Insulation Nominal OD(MM) 1
        Filler Material Cross-web Separator, Rip Cord
        Sheath Material PVC
        Sheath Colour Refer to Packing Table
        Sheath Nominal OD(mm) 6.0
        Electrical Properties
        Max. Conductor DC Resistance @ 20°C

        8.5 Ω/100m

        Max. DC Conductor Resistance Unbalanced 5%
        Nominal Velocity of Propagation 64%
        Characteristic Impendence(1-250MHz) 100±15Ω
        Nom. Mutual Capacitance @ 1KHz 56 pF/m
        Max. Capacitance Unbalance @ 20°C 300 pF/100m
        Mechanical Properties
        Operating Temperature -15 to 75°C
        Max. Recommended Pulling Tension 126N
        Min. Bend Radius(install) 65mm
        Approximate Mass 4.64kg/100m

        Freq.(MHz)

        Min. RL (dB/100m,20°C) Max. IL (dB/100m,20°C) Min. NEXT (dB/100m,20°C) Min. PSNEXT (dB/100m,20°C) Min. ELFEXT (dB/100m,20°C) Min. PSELFEXT (dB/100m,20°C)
        1.0 20.0 2.0 74.3 72.3 67.8 64.8
        4.0 23.0 3.8 65.3 63.3 55.8 52.8
        8.0 24.5 5.3 60.8 58.8 49.7 46.7
        10.0 25.0 6.0 59.3 57.3 47.8 44.8
        16.0 25.0 7.6 56.2 54.24 43.7 40.7
        20.0 25.0 8.5 54.8 52.8 41.8 38.8
        31.25 23.6 10.7 51.9 49.9 37.9 34.9
        62.5 21.5 15.4 47.4 45.4 31.9 28.9
        100 20.0 19.8 44.3 42.3 27.8 24.8
        200 18.0 29.0 39.8 37.8 21.8 18.8
        250 17.3 32.8 38.3 36.3 19.8 16.8



        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Garland Cables
        SKU UTPL6BL305RBBW
        Barcode # 9329849027544
        Shipping Weight 12.6000kg
        Shipping Width 0.330m
        Shipping Height 0.340m
        Shipping Length 0.260m
        Shipping Cubic 0.029172000m3
        TYPE VALUE
        Type Network Cable
        Brand Garland
        Colour Blue
        Length (mtr) 305
        Cable Cat 6
