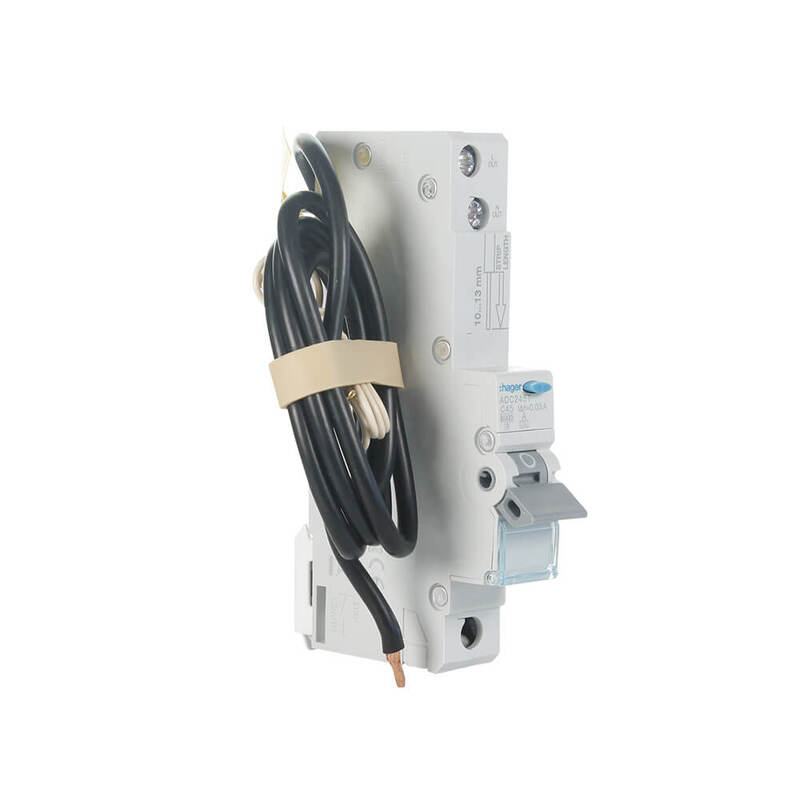

Name: Hager ADC245T | 45A Single Pole RCBO Breaker | 30mA 6ka
Brand: Hager Electrical
SKU: ADC245T
Price: 51.15 AUD
Availability: InStock

Scratch and Win with Clipsal on order $190 + FREE SHIPPING on Clipsal Orders $330 More

Search Results:

Products
Pages

Search Results:

Product Category Suggestions

Pages

Learn more by watching our Hager ADC245T | 45A Single Pole RCBO Breaker | 30mA 6ka video.

Hager ADC245T | 45A Single Pole RCBO Breaker | 30mA 6ka

Description:

The Hager ADC245T is a powerful 45A Single Pole RCBO Breaker meticulously engineered to provide superior protection in electrical circuits. Featuring a 30mA residual current sensitivity combined with a 6kA rated short circuit breaking capacity, this breaker is tailored for applications requiring higher load handling. Ideal for electricians, this device ensures the safety and reliability of electrical installations in residential, commercial, and industrial settings.

Features:

High-Load Capacity: A 45A-rated current allows for the safe operation of high-power devices and appliances.
Advanced Safety: 30mA trip sensitivity offers enhanced protection against electrical faults, preventing potential electric shocks and fires.
Robust Performance: With a 6kA breaking and opening capacity, it meets the highest demands for electrical safety, according to IEC60898-1.
Durable and Reliable: Capable of 2000 electrical cycles and 10000 mechanical operations, ensuring longevity and consistent performance.
Versatile Installation: DIN rail type O (symmetrical) fixing mode and a compact design facilitate easy integration into various electrical setups.
Temperature Adaptability: Efficiently operates within a wide temperature range, from -5°C to 40°C, adjusting its rated current to suit environmental conditions.

FAQ:

Q: What applications is the Hager ADC245T best suited for?
A: Its 45A rating makes it ideal for high-demand installations in both commercial and industrial environments, as well as large residential properties.

Q: How does the RCBO protect against electrical hazards?
A: The device quickly trips upon detecting residual currents of 30mA, effectively minimizing the risk of electric shocks and fire hazards.

Q: Can the Hager ADC245T be used in any climate?
A: Yes, designed to operate in temperatures ranging from -5°C to 40°C, it ensures reliable protection across various environmental conditions.

Q: Is installation of the Hager ADC245T complex?
A: With straightforward DIN rail mounting and clear connectivity options, it offers a user-friendly installation process for qualified electricians.

(ADC245T)

100-Day Fuss-Free Returns
We want you to love what you buy—but if you change your mind, that’s okay too. That’s why Sparky Direct offers a 100-day money-back guarantee.

Items must be unused, with all parts, accessories, and original packaging.
We can’t accept returns if the product is damaged, incomplete, or not in resalable condition.
Proof of purchase is required.
Return shipping is the responsibility of the customer.

If your item isn’t in its original condition, please contact us before returning it—we might save you time and money.

All products come with a manufacturer’s or supplier’s warranty

Warranty starts from the Invoice Date
Some suppliers offer in-home warranties and handle claims directly, so you won’t need to uninstall or return the product. Chat with us to check if your product qualifies.
Sparky Direct isn’t responsible for losses caused by product failure.
Warranties are void if products aren’t installed by a licensed electrician.

Damaged or Faulty Goods
If your order arrives damaged or is faulty, let us know within 24 hours.

Sparky Direct will pay for return shipping via an emailed return label.
If the fault is confirmed, we will send you a replacement item or provide a refund.

Exclusions
We can’t accept returns for:

Items that have been installed, modified, or used
Clearance, End of life, Discontinued, or special order items (unless faulty)
All PPE Items
Goods returned without original packaging or proof of purchase

How to Request a Return

Contact our customer service team with your order number.
Confirm it’s eligible under our return or warranty policy.
Pack the item securely and return it using a trackable service.
Once we receive and inspect it, we’ll process your refund or replacement.

Warranty starts from Invoice Date

Domestic Use: 1 Year
Commercial Use: 1 Year
Warranty Method: Return to Sparky Direct

Feature	Description
Neutral position	Right
Number of protected poles	1
Number of poles	1 P
Type of pole	1 P
Fixing mode	DIN rail type O (symmetrical)
Curve	C
Number of modules	1
Top connection alignment for modular devices	Shifted terminal
Bottom connection alignment for modular devices	Aligned terminal
Rated short circuit breaking capacity Icn AC according to IEC60898-1	6 kA
Rated operational voltage Ue	230/240 V
Type of supply voltage	AC
Frequency	50/60 Hz
Rated insulation voltage	250 V
Rated impulse withstand voltage	4000 V
Rated residual operating current	30 mA
Rated current	45 A
Withstand not tripping on 8-20 μs wave	0.25 kA
Breaking and opening capacity	6000 A
min/max threshold value of the AC thermal operation	1.13 / 1.45 In
Magnetic regulating current	5 / 10 In
Electric current/temperature	-25°C/55.45A ~ 70°C/41A
Frequency	50/60 Hz
Total power loss under IN	12.9 W
Power loss per pole at In	7.5 W
Electric endurance in number of cycles	2000
Number of mechanical operations	10000
Standards	IEC 61009-1
Protection index IP	IP20
Residual current type	A
Operating temperature	-5…40 °C

These specifications and characteristics outline physical, mechanical, electrical details.

Brand	Hager Electrical
SKU	ADC245T
Model #	ADC245T
Barcode #	3250611035770
Package Weight	0.230kg
Package Width	0.040m
Package Height	0.080m
Package Length	0.150m

View Datasheet

View Manual

TYPE	VALUE
Type	Breaker
Brand	Hager Electrical
Colour	White
Poles	1
RCBO	Yes
