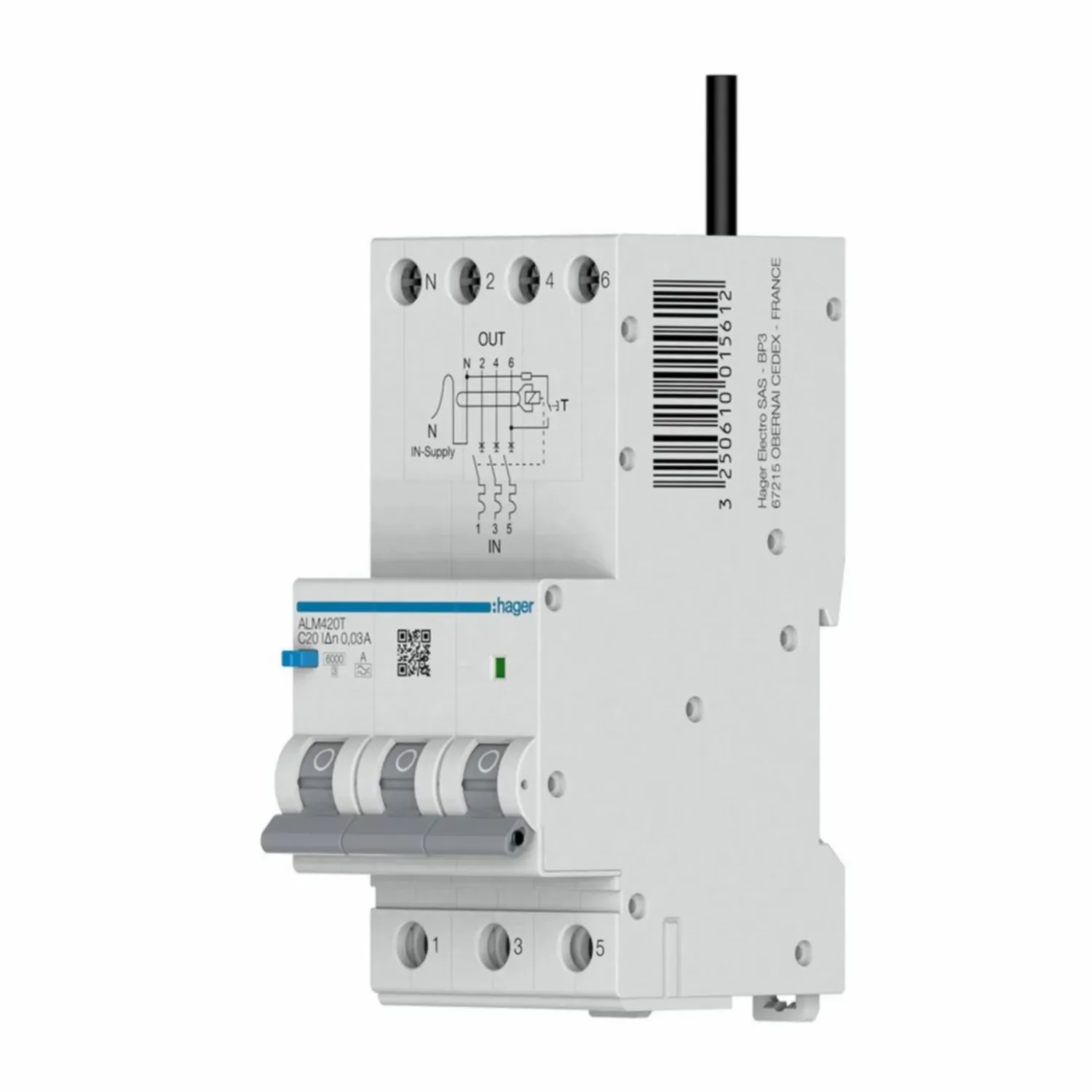

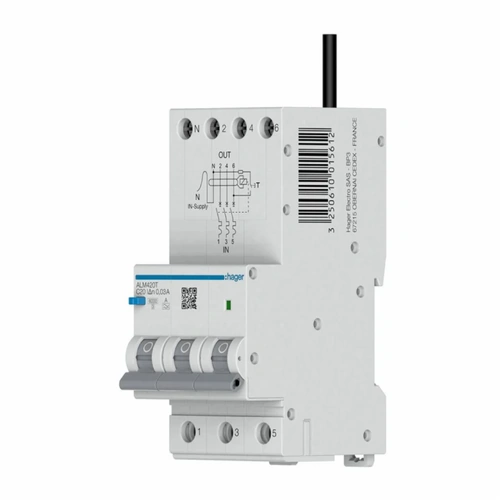

        Hager ALM420T | 20A 3P+N RCBO 6kA w/Tails | 3 Module

        The Hager ALM420T is a 3P+N RCBO that provides combined overcurrent and earth leakage protection in a space-saving 3-module design. Rated at 20A, Type A, and 30mA with a C-curve tripping characteristic, it’s built for 400-415V AC three-phase systems commonly used in commercial and light-industrial environments.

        This RCBO features a 6 kA short-circuit breaking capacity and is DIN-rail mountable for quick, easy installation. Pre-fitted tails reduce installation time and accommodate 1-25 mm² conductors. With IP20 protection and a 4kV impulse withstand rating, the ALM420T ensures long-term safety and compliance with IEC/AS standards.

        Hager ALM420T Features

        • 3P+N RCBO (3 Module): Compact unit for protection against overcurrent and earth leakage.
        • 20A Rated, C Curve: Ideal for typical commercial and light industrial circuits.
        • 30mA Earth Leakage, Type A: Personal protection against electric shock.
        • 6kA Breaking Capacity: High fault current protection for safety compliance.
        • Supplied with Tails: Pre-wired for fast installation.
        • DIN Rail & IP20 Rated: Fits modern switchboards and enclosures.

        Where to use this Hager ALM420T

        • Three-phase installations requiring combined RCD and circuit breaker protection.
        • Commercial and light industrial boards with space or wiring constraints.
        • New builds and switchboard upgrades needing compliant RCBOs with tails.

        (ALM420T)

        Hager ALM 3 Pole RCBOs are used to provide combined overcurrent and residual current protection for three-phase electrical circuits in residential, commercial, and light industrial installations.

        The range has a 6kA short-circuit breaking capacity, suitable for many commercial and industrial distribution boards.

        A 3 pole RCBO protects three active phases and the neutral, disconnecting all conductors together in the event of a fault.

        The range is available in 10A through to 63A, covering a wide variety of three-phase circuit requirements.

        The range includes C curve options, suitable for general three-phase loads with moderate inrush current.

        Yes. Sparky Direct stocks the Hager ALM 3 Pole RCBO range, with fast dispatch and fast Australia-wide delivery.

        100-Day Fuss-Free Returns
        We want you to love what you buy—but if you change your mind, that’s okay too. That’s why Sparky Direct offers a 100-day money-back guarantee.

        • Items must be unused, with all parts, accessories, and original packaging.
        • We can’t accept returns if the product is damaged, incomplete, or not in resalable condition.
        • Proof of purchase is required.
        • Return shipping is the responsibility of the customer.

        If your item isn’t in its original condition, please contact us before returning it—we might save you time and money.

        All products come with a manufacturer’s or supplier’s warranty

        • Warranty starts from the Invoice Date
        • Some suppliers offer in-home warranties and handle claims directly, so you won’t need to uninstall or return the product. Chat with us to check if your product qualifies.
        • Sparky Direct isn’t responsible for losses caused by product failure.
        • Warranties are void if products aren’t installed by a licensed electrician.

        Damaged or Faulty Goods
        If your order arrives damaged or is faulty, let us know within 24 hours.

        • Sparky Direct will pay for return shipping via an emailed return label.
        • If the fault is confirmed, we will send you a replacement item or provide a refund.

        Contact us via our chat to arrange the return.

        Exclusions
        We can’t accept returns for:

        • Items that have been installed, modified, or used
        • Clearance, End of life, Discontinued, or special order items (unless faulty)
        • All PPE Items
        • Goods returned without original packaging or proof of purchase

        How to Request a Return

        1. Contact our customer service team with your order number.
        2. Confirm it’s eligible under our return or warranty policy.
        3. Pack the item securely and return it using a trackable service.
        4. Once we receive and inspect it, we’ll process your refund or replacement.

        Warranty starts from Invoice Date

        Domestic Use: 2 Year
        Commercial Use: 2 Year
        Warranty Method: Return to Sparky Direct

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Hager Electrical
        SKU ALM420T
        Model # ALM420T
        Package Weight 0.432kg
        Package Width 0.070m
        Package Height 0.084m
        Package Length 0.054m
        View Datasheet
        View Brochure
        View Manual
        TYPE VALUE
        Type Circuit Protection
        Brand Hager Electrical
        Rated Current (A) 20
        Curve C
        Rated Voltage (V) 400-415
        Residual Current Type Type A
