Learn more by watching our Hager EGN103 | Digital Time Switch 1 Channel Weekly Cycle video.

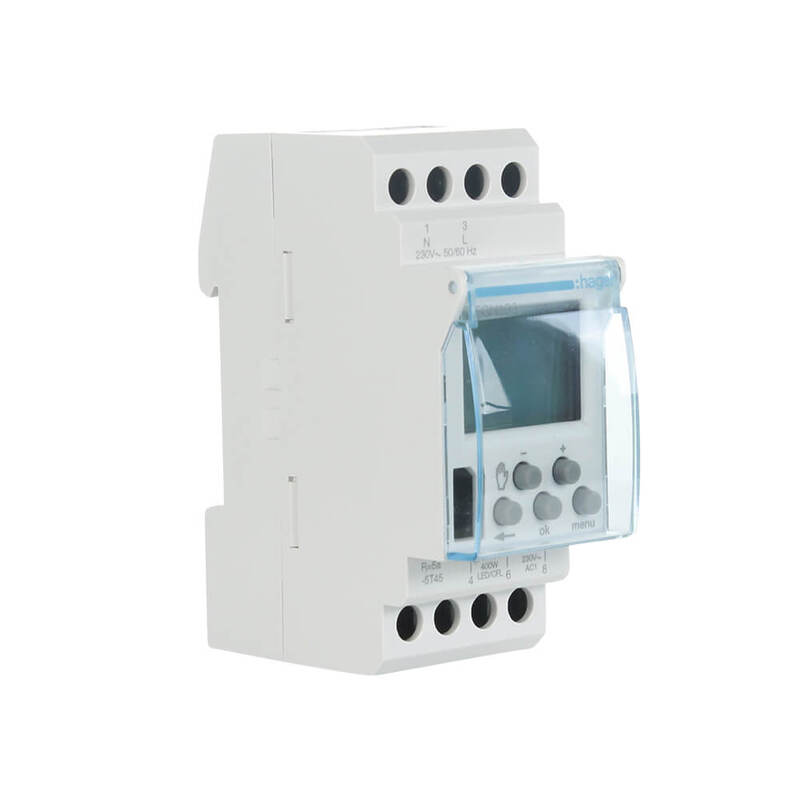

The Hager EGN103 is a single-channel electronic time switch that drives connected loads on a seven-day program. Output is one changeover contact rated 16 A. The EGN103 mounts on DIN rail to EN 60715 and takes two modules on the board. Supply is 230 V AC or 240 V AC at 50/60 Hz, and 56 On or Off program steps are held in memory.
A manual switch leaves a load running until someone gets to the board. The EGN103 puts that on a schedule instead, with 56 program steps across seven days, entered by day or by group of days. Automatic daylight savings changeover holds the schedule when the clocks move, and the Australian setting follows the first Sunday in October and the first Sunday in April.
The EGN103 leaves the factory with the time and day already set, so the clock does not need establishing on site. Programming works with the unit off, which means the schedule can be loaded before the board is energised. An optional Bluetooth key lets the program be built in a free phone app and copied into the switch.
The EGN103 is not suitable for SELV loads. The case is rated IP20, so the unit is not built for exposed or unenclosed positions and belongs inside a board. Operating temperature runs from -5 to +45 degrees C, and positions outside that range sit beyond the specified conditions.
(EGN103)
The Hager EGN103 is a one-channel electronic time switch with a seven-day program. It switches connected loads through a 16 A changeover contact on a set weekly schedule, and mounts on DIN rail inside a switchboard or enclosure.
The EGN103 holds 56 program steps, each set to On or Off. Steps are entered by day or by group of days, and the shortest gap allowed between two steps is one minute.
The contact carries up to 16 A AC1 at 230 V. Incandescent and 230 V halogen loads are rated to 2300 W on the normally open contact, and compact fluorescent or LED loads to 400 W. Minimum breaking capacity is 100 mA.
The EGN103 must be installed by a qualified electrician working to the installation standards that apply. It is a DIN rail device wired into a switchboard, and a 16 A circuit breaker is specified upstream of the switch.
A lithium battery holds the clock and the stored program through a mains failure, with a rated life of five years. The display drops out after a minute without supply and the switch returns to auto mode once power comes back.
Programming over Bluetooth is available with the Hager EGN003 key, which plugs into the switch and pairs with a free configuration app for iOS and Android. The key is sold separately. Programs can also be entered on the keypad.
The keypad can be locked with a Hager EG004 key, and unlocked the same way. Locking stops the schedule being altered by accident once the switch is commissioned.
The EGN103 is not suitable for controlling SELV loads. The IP20 case means the unit is built for mounting inside a board rather than an exposed position, and operating temperature is limited to a range of -5 to +45 degrees C.
The Hager EGN103 is available online from Sparky Direct, with Australia-wide delivery to any state or territory including regional areas. Sparky Direct is an Australian electrical wholesaler established in 2005, supplying more than 500,000 customers with transparent trade pricing.
100-Day Fuss-Free Returns
We want you to love what you buy—but if you change your mind, that’s okay too. That’s why Sparky Direct offers a 100-day money-back guarantee.
If your item isn’t in its original condition, please contact us before returning it—we might save you time and money.
All products come with a manufacturer’s or supplier’s warranty
Damaged or Faulty Goods
If your order arrives damaged or is faulty, let us know within 24 hours.
Contact us via our chat to arrange the return.
Exclusions
We can’t accept returns for:
How to Request a Return
Warranty starts from Invoice Date
Domestic Use: 1 Year
Commercial Use: 1 Year
Warranty Method: Return to Sparky Direct
| Specification | Details |
|---|---|
| Fixing Mode | DIN rail type O (symmetrical) |
| With GPS | No |
| Hour Program | Yes |
| Number of Modules | 2 |
| Connection Mode | Radio |
| Rated Operational Voltage Ue | 230 V AC |
| Nominal Voltage | 230 V |
| Type of Supply Voltage | AC |
| Frequency | 50/60 |
| Switching Current at 250 V~ | 16 A |
| Depth of Installed Product | 61.6 mm |
| Height of Installed Product | 90 mm |
| Width of Installed Product | 35.8 mm |
| Frequency Range | 50…60 Hz |
| Power Consumed | 0.39 VA |
| Power Consumption (Operation) | 350 mW |
| Running Accuracy | ± 1.5 s/day |
| Battery / Storage Battery | With battery type: Lithium 1/2 AA |
| Fluorescent Lamps | Max. 1000 VA |
| Max. Power with Fluorescent Parallel Lamps | 400 W |
| Max. Power Fluo. Duo Lamp Comp. Series | 1000 W |
| Compact Fluorescent Lamps | 400 W |
| Fluorescent Lamps Parallel Compensated | 400 W |
| Max. Load Fluorescent Lamp | 400 W |
| Max. Power with Incandescent Lamps | 2300 W |
| 230 V Incandescent Lamps and Halogen Lamps | 2300 W |
| Tightening Torque | 1.2 Nm |
| Connection Cross-Sect. Flexible Conductor | 1 / 6mm² |
| Connection Cross-Sect. Rigid Cable | 1.5 / 10mm² |
| Number of Contacts | 1 |
| Type of Contacts | 1 changeover |
| Type of Connection | With screw terminal |
| Contact | With failsafe break contact (NC contact) |
| Number of Program Steps | 56 |
| Shortest Switching Time | 1 mn |
| Programming | Possible without mains power |
| Annual Program | No |
| Astro Program | No |
| Daily Program | Yes |
| Time | Automatic summer/winter time change-over |
| Weekly Program | Yes |
| Memory Card Included | No |
| Type of Programmable Thermostat | Digital |
| Number of Channels | 1 |
| Number of Switching Times for On/Off | 56 |
| Supply Failure Reserve | 5 years |
| Summer-/Winter Switchover | Yes |
| With Cyclic Program | No |
| With Holidays Program | No |
| With Impulse Program | No |
| With Preset Program | No |
| With Random Program | No |
| Local Operation/Hand Operation | Yes |
| Protection Index IP | IP20 |
| Degree of Pollution | 2 |
| Working Accuracy | ± 1.5 s / 24H |
| Relative Humidity | 95 % |
| Device Family | EG |
These specifications and characteristics outline physical, mechanical, electrical details.
| Brand | Hager Electrical |
| SKU | EGN103 |
| Model # | EGN103 |
| Barcode # | 3250618502435 |
| Package Weight | 0.195kg |
| TYPE | VALUE |
|---|---|
| Type | Timer |
| Brand | Hager Electrical |
| Colour | White |
| Rated Current (A) | 16 |
| Mounting | DIN rail |
| Size | 2 modules (17.5 mm x 2) |
| Voltage (V) | 230-240 |
| IP Rating | IP20 |
