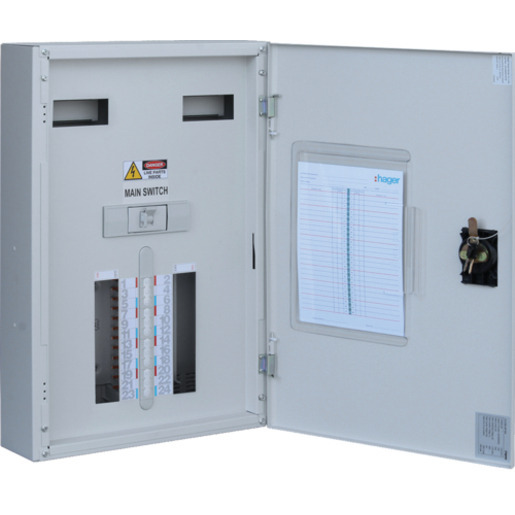

        Hager JVC2400S16TW | INVICTA 24P Chassis 160A TPN board
        $759.00 $690.00 ex. GST
        Description

        Hager JVC2400S16TW | INVICTA 24P Chassis 160A TPN board

        Description:

        The Hager JVC2400S16TW Invicta 24P Chassis 160A TPN board is a cutting-edge solution designed to streamline electrical installations in small to medium commercial settings as well as large residential projects. Its robust architecture and surface-mounting capabilities ensure a secure and straightforward installation process, making it a preferred choice for professional electricians. The board's compatibility with 6kA MCBs and one kombo 6kA single module RCBOs presents an economical yet efficient solution for addressing the basic electrical needs of end-users.

        Features:

        • Versatile Installation: Designed for surface mounting, facilitating easy integration into various project environments.
        • High Capacity: Supports a rated current of 160A with a 3-pole main switch, suitable for high-demand applications.
        • Comprehensive Protection: Although it lacks overvoltage protection, its design ensures reliable performance under standard operating conditions.
        • Modular Configuration: Accommodates up to 16 modules, providing flexibility in circuit management and expansion.
        • Durable Construction: Made from steel with a light grey RAL 7035 finish, offering both aesthetic appeal and long-lasting durability.
        • Security Features: Equipped with a keylock door closure for enhanced security and control over access.
        • Standard Compliance: Meets AS/NZS 61439-1 requirements, ensuring safety and reliability in electrical installations.

        FAQ:

        Q: Can the Hager Invicta 24P Chassis be expanded for future needs?
        A: Yes, the board's design allows for extension, making it adaptable to growing electrical requirements.

        Q: What type of protection does the Hager JVC2400S16TW offer?
        A: It provides a protection class of IP30 against ingress and IK05 for protection against mechanical impacts, ensuring the safety of internal components.

        Q: Is the Hager Invicta 24P Chassis suitable for outdoor installations?
        A: With an IP30 rating, it is designed for indoor use, providing protection against solid objects but not waterproof for outdoor environments.

        Q: Does it come with an energy meter or bell transformer?
        A: No, the Hager Invicta 24P Chassis does not include an energy meter or bell transformer, focusing on providing a straightforward and efficient electrical distribution solution.

        (JVC2400S16TW)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 1 Year
        Commercial Use: 1 Year
        Warranty Method: Return to Sparky Direct

        Features
        Specification Detail
        Fixing mode Surface-mounting
        Number of poles of the main switch 3
        Overvoltage protection No
        Number of modules 16
        Rated operational voltage Ue 415 V
        Nominal voltage 400 V
        Frequency 50/60 Hz
        Rated current 160 A
        Insertion depth 117 mm
        Depth of installed product 135 mm
        Internal depth 115 mm
        Height of installed product 800 mm
        Width of installed product 480 mm
        Thickness of sidewall material 1.2 mm
        Type of door closing With keylock
        Interlockable No
        Number of keylock of the door 1
        Transparent cover or door No
        Colour Light grey
        RAL colour RAL 7035 - Light grey
        Material Steel
        Number of accessible phases 24
        With energy meter No
        Quantity of rails 1
        Can be accessorized Yes
        With bell transformer No
        Extension possible Yes
        With socket No
        IK protection code against mechanical impacts 05
        Protection index IP IP30
        Protection class isol.class I
        Glow wire test Yes according to AS/NZS 61439-1
        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Hager Electrical
        SKU JVC2400S16TW
        Barcode # 3250611002321
        Shipping Weight 21.0000kg
        Shipping Width 0.480m
        Shipping Height 0.800m
        Shipping Length 0.135m
        Shipping Cubic 0.051840000m3
        TYPE VALUE
        Type Enclosure
        Brand Hager
        Colour Grey
