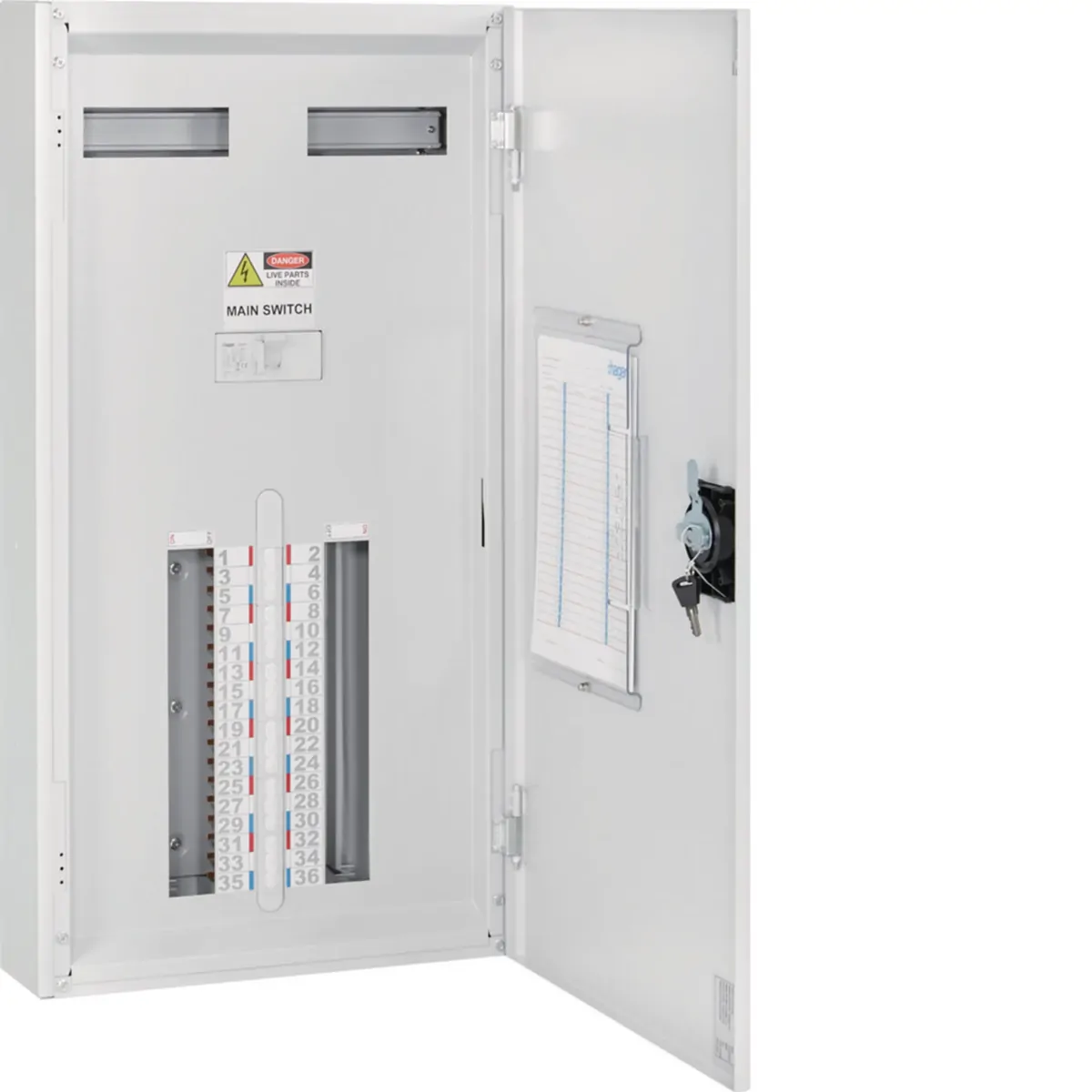

        Hager JVC3600S16TW | INVICTA 36P Chassis 160A TPN board

        Description:

        The Hager JVC3600S16TW Invicta 36P Chassis 160A TPN board is a premium electrical panelboard designed to meet the demands of both small to medium commercial installations and large residential projects. This solution is engineered to optimize electrical distribution efficiency, seamlessly integrating with 6kA MCBs and one kombo 6kA single module RCBOs for an economical approach to electrical management. Its sturdy construction and versatile design make it a top choice for electricians aiming for reliability and adaptability in their electrical projects.

        Features:

        • Expanded Capacity: It features a 36-phase accessible configuration, suitable for larger and more complex installations.
        • Robust Design: Constructed from steel with a light grey RAL 7035 finish, combining durability with a modern aesthetic.
        • Secure Installation: Offers a surface-mounting fixing mode and includes a keylock door, ensuring secure access and installation.
        • Adaptable Configuration: With 16 modules, it accommodates various circuit requirements, making it flexible for diverse electrical setups.
        • High Performance: Rated for 415 V operational voltage and 160 A current, it's built to support high-demand environments.
        • Safety Compliant: Meets AS/NZS 61439-1 standards, providing assurance of quality and safety in its operation.

        FAQ:

        Q: Can the Hager Invicta 36P Chassis be used in outdoor installations?
        A: With an IP30 rating, it is primarily designed for indoor use, offering protection against solid objects but not suitable for outdoor conditions without additional protection.

        Q: Is the panelboard customizable for future expansion?
        A: Yes, the design supports extension, allowing for future modifications and expansions to cater to evolving electrical needs.

        Q: How does the Hager JVC3600S16TW ensure secure access?
        A: It includes a door with a keylock mechanism, providing secure and controlled access to the panelboard's contents.

        Q: Does it come equipped with an energy meter or any measuring devices?
        A: No, the Hager Invicta 36P Chassis does not include an energy meter or bell transformer, focusing on streamlined and efficient power distribution.

        (JVC3600S16TW)

        100-Day Fuss-Free Returns
        We want you to love what you buy—but if you change your mind, that’s okay too. That’s why Sparky Direct offers a 100-day money-back guarantee.

        • Items must be unused, with all parts, accessories, and original packaging.
        • We can’t accept returns if the product is damaged, incomplete, or not in resalable condition.
        • Proof of purchase is required.
        • Return shipping is the responsibility of the customer.

        If your item isn’t in its original condition, please contact us before returning it—we might save you time and money.

        All products come with a manufacturer’s or supplier’s warranty

        • Warranty starts from the Invoice Date
        • Some suppliers offer in-home warranties and handle claims directly, so you won’t need to uninstall or return the product. Chat with us to check if your product qualifies.
        • Sparky Direct isn’t responsible for losses caused by product failure.
        • Warranties are void if products aren’t installed by a licensed electrician.

        Damaged or Faulty Goods
        If your order arrives damaged or is faulty, let us know within 24 hours.

        • Sparky Direct will pay for return shipping via an emailed return label.
        • If the fault is confirmed, we will send you a replacement item or provide a refund.

        Contact us via our chat to arrange the return.

        Exclusions
        We can’t accept returns for:

        • Items that have been installed, modified, or used
        • Clearance, End of life, Discontinued, or special order items (unless faulty)
        • All PPE Items
        • Goods returned without original packaging or proof of purchase

        How to Request a Return

        1. Contact our customer service team with your order number.
        2. Confirm it’s eligible under our return or warranty policy.
        3. Pack the item securely and return it using a trackable service.
        4. Once we receive and inspect it, we’ll process your refund or replacement.

        Warranty starts from Invoice Date

        Domestic Use: 1 Year
        Commercial Use: 1 Year
        Warranty Method: Return to Sparky Direct

        Specification Detail
        Fixing mode Surface-mounting
        Number of poles of the main switch 3
        Overvoltage protection No
        Number of modules 16
        Rated operational voltage Ue 415 V
        Nominal voltage 400 V
        Frequency 50/60 Hz
        Rated current 160 A
        Insertion depth 117 mm
        Depth of installed product 135 mm
        Internal depth 115 mm
        Height of installed product 900 mm
        Width of installed product 480 mm
        Thickness of sidewall material 1.2 mm
        Type of door closing With keylock
        Interlockable No
        Number of keylock of the door 1
        Transparent cover or door No
        Colour Light grey
        RAL colour RAL 7035 - Light grey
        Material Steel
        Number of accessible phases 36
        With energy meter No
        Quantity of rails 1
        Can be accessorized Yes
        With bell transformer No
        Extension possible Yes
        With socket No
        IK protection code against mechanical impacts 05
        Protection index IP IP30
        Protection class isol.class I
        Glow wire test Yes according to AS/NZS 61439-1

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Hager Electrical
        SKU JVC3600S16TW
        Model # JVC3600S16TW
        Barcode # 3250611002345
        Package Weight 23.700kg
        Package Width 0.530m
        Package Height 0.850m
        Package Length 0.185m
        View Datasheet
        TYPE VALUE
        Type Enclosure
        Brand Hager
        Colour Grey
