Learn more by watching our Major Tech VBW12SA | 12 Pole Surface Mount Distribution Board IK08 | IP66 video.

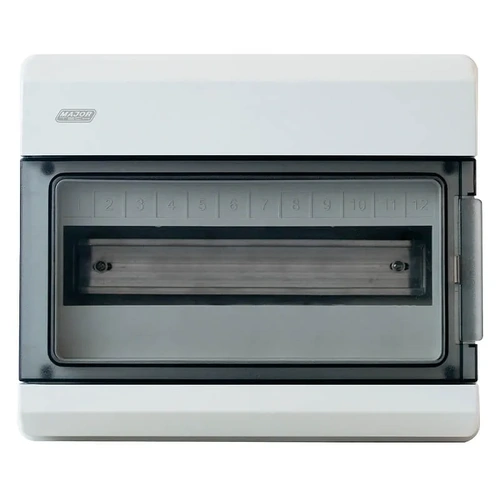

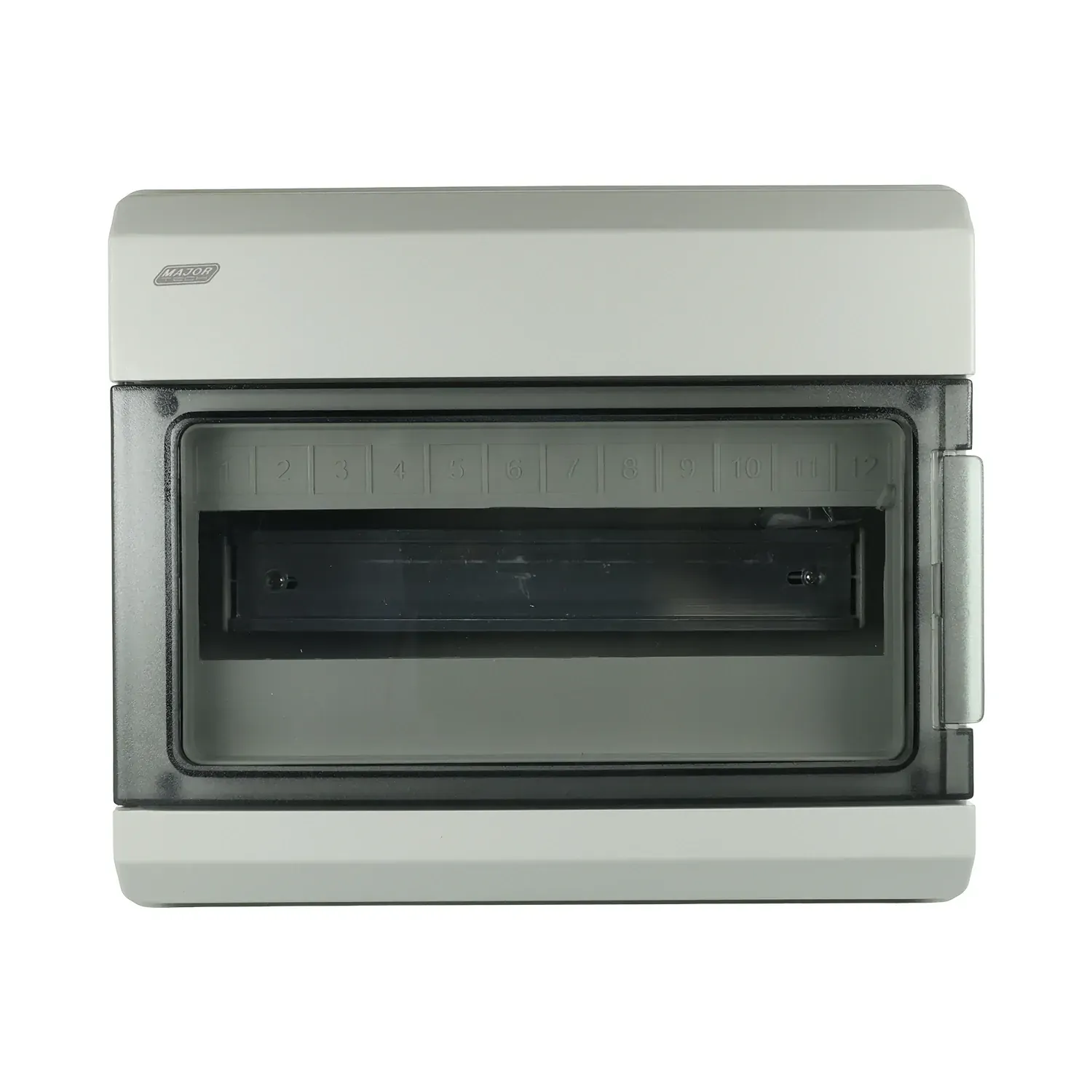

The Major Tech VBW12SA is a 12-pole surface-mount distribution board built for safe, weatherproof electrical distribution in demanding environments. With an IP66 rating for dust and water protection and IK08 impact resistance, it’s ideal for outdoor, industrial, and marine applications.
Constructed from high-grade polycarbonate, it resists fire up to 850°C for 30 seconds and withstands tough site conditions. The clip-on transparent cover offers smooth push-to-open access while maintaining full enclosure integrity. It supports up to 12 x 18mm modules on a single DIN rail and is rated ≤125A at ≤1000VAC or ≤1500VDC.
Compliant with AS/NZS 61439, AS/NZS 61000, and IEC standards, the VBW12SA includes copper Earth & Neutral Bars and comes with a 5-year limited warranty, delivering safety, performance, and long-term reliability.
Major Tech VBW12SA Features
Where to use this Major Tech VBW12SA
(VBW12SA)
It can accommodate up to 12 individual 18mm modules on a single DIN rail, providing flexibility for small to medium installations.
The VBW12SA is IP66-rated for full dust and water protection and IK08-rated for impact resistance, making it suitable for harsh and exposed locations.
Yes, the housing is tested to resist ignition at up to 850°C for 30 seconds, providing additional safety in high-temperature conditions.
The VBW12SA complies with AS/NZS 61439 and AS/NZS 61000 for electrical and environmental safety.
Yes, both are included and made from copper for reliable, compliant wiring.
The board measures 230mm (H) x 273mm (W) x 110mm (D), compact enough for confined or external wall mounting.
100-Day Fuss-Free Returns
We want you to love what you buy—but if you change your mind, that’s okay too. That’s why Sparky Direct offers a 100-day money-back guarantee.
If your item isn’t in its original condition, please contact us before returning it—we might save you time and money.
All products come with a manufacturer’s or supplier’s warranty
Damaged or Faulty Goods
If your order arrives damaged or is faulty, let us know within 24 hours.
Contact us via our chat to arrange the return.
Exclusions
We can’t accept returns for:
How to Request a Return
Warranty starts from Invoice Date
Domestic Use: 5 Year
Commercial Use: 5 Year
Warranty Method: Return to Sparky Direct
These specifications and characteristics outline physical, mechanical, electrical details.
| Brand | Major Tech |
| SKU | VBW12SA |
| Model # | VBW12SA |
| Barcode # | 6008229042867 |
| Package Weight | 1.190kg |
| Package Width | 0.240m |
| Package Height | 0.280m |
| Package Length | 0.120m |
| TYPE | VALUE |
|---|---|
| Type | Enclosures |
| Brand | Major Tech |
| Colour | White |
| Height (mm) | 230 |
| Width (mm) | 273 |
| Length (mm) | 110 |
| Mounting | Surface Mount |
| Material | Polycarbonate Plastic |
| IP Rating | IP66 |
| Number of Rows | 1 |
| Number of Modules | 12 |
| IK Rating | IK08 |
| Fire Resistance | 850°C |
