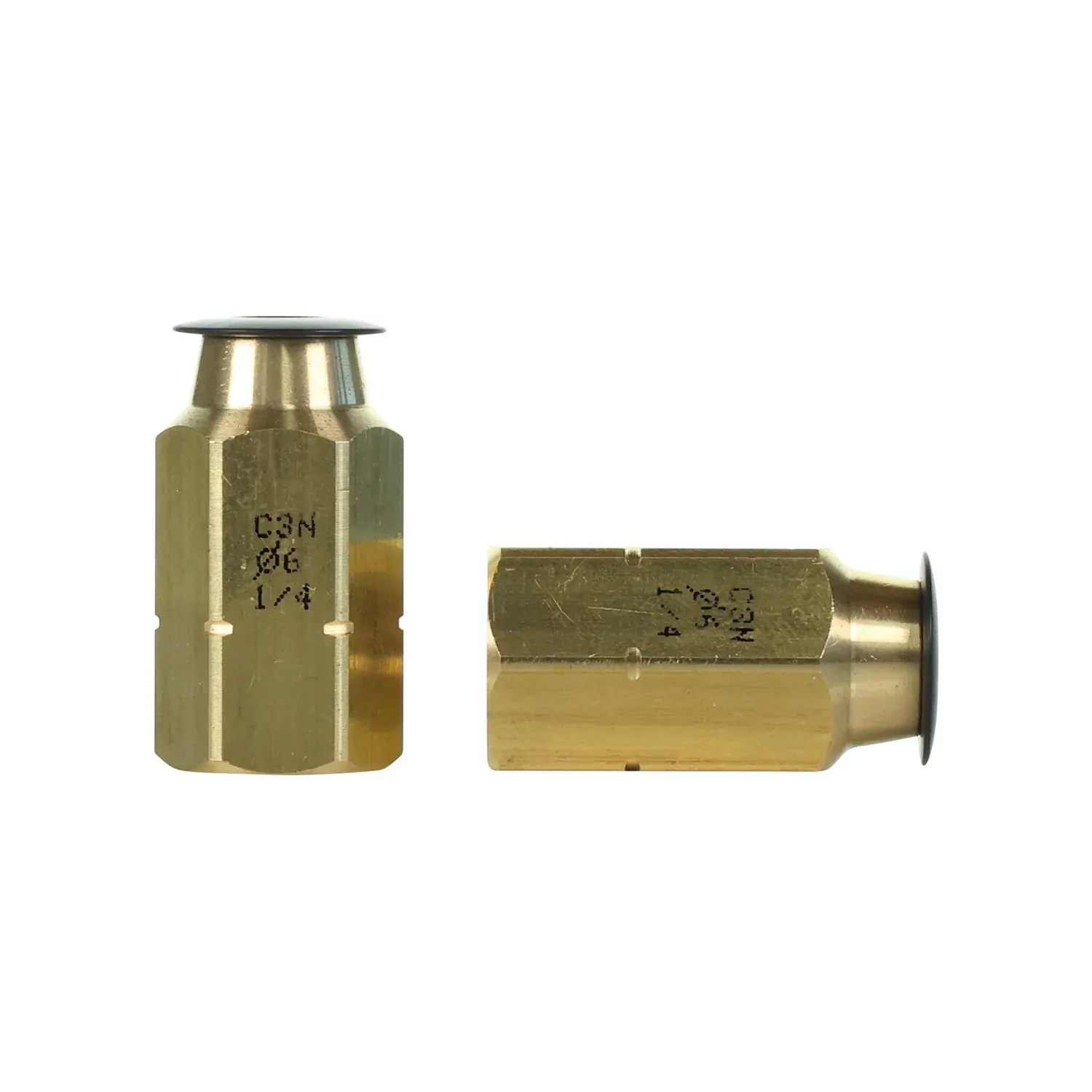

        Inoac CJ-06G | Conic Joint No-Flare 1/4" HVAC Fitting | 2 Pack

        The Inoac CJ-06G is a 1/4" no-flare HVAC fitting designed for quick, secure refrigerant line connections — no flaring, deburring, or torque wrenches required. With a two-step tightening process, it ensures consistent, leak-free seals and cuts install time dramatically.

        Rated up to 625 psi, it’s built for high-pressure refrigerants like R32 and R410A, and features a dual O-ring seal with a metal backup ring for long-lasting reliability. The CJ-06G works with both aluminium and copper tubing and includes a water-stop design to prevent galvanic corrosion between dissimilar metals. Supplied in a 2 pack.

        Installation Instructions

        1. Cut and Deburr the Pipe: Make sure the pipe ends are clean, round, and free of burrs.
        2. Insert the Fitting: Push the pipe into the Conic Joint fitting until it reaches the internal stop.
        3. Use the Correct Tightening Tool (Sold Separately): CJTT-0612 for CJ-06G (1/4") and CJ-12G (1/2"), CJTT-0915 for CJ-09G (3/8") and CJ-15G (5/8").
        4. Tighten in Two Stages: Using a standard wrench and the compatible tool, apply the first stage of compression. Continue to the second stage until firm resistance is met. Do not overtighten.
        5. Pressure Test: Pressurise the system and check for leaks before final commissioning.

        CJ-06G Features

        • No-Flare Installation: Quick, tool-light connection with no flaring or torque wrench needed.
        • 625 psi Pressure Rating: Handles modern refrigerants like R32 and R410A with ease.
        • Dual O-Ring + Metal Backup Seal: Provides a long-lasting, pressure-tight seal.
        • Aluminium & Copper Compatible: Ideal for use with soft tubing of either material.
        • Corrosion Control Design: Water-stop feature reduces galvanic reaction at connection point.

        (CJ-06G)

        1/4" Conic Joint Fitting FAQ

        Do I need specialised tools?

        No. Just a standard wrench — no flaring tools or torque wrenches needed.

        Is this compatible with R32 and R410A?

        Yes. It’s rated for high-pressure refrigerants up to 625 psi.

        Can I use this on aluminium tubing?

        Yes. It’s designed for both aluminium and copper, with no risk of flaring damage.

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 1 Year
        Commercial Use: 1 Year
        Warranty Method: Return to Sparky Direct

        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Inoac
        SKU CJ-06G
        Model # CJ-06G
        Barcode # 14905564167691
        Package Weight 0.085kg
        Package Width 0.120m
        Package Height 0.030m
        Package Length 0.070m
        TYPE VALUE
        Type Air-Conditioner Accessories
        Brand Inoac
        Quantity 2
        Suits Pipe Size 1/4" (6.35mm)
