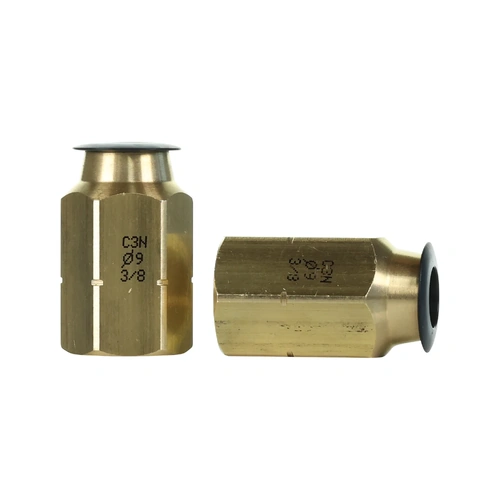

        Inoac CJ-09G | Conic Joint No-Flare 3/8" HVAC Fitting | 2 Pack

        The Inoac CJ-09G is a 3/8" no-flare HVAC fitting designed to simplify refrigerant line installations with a fast, secure connection — no flaring, deburring, or torque wrenches required. Its two-step tightening process ensures a reliable, professional seal every time, saving time on-site.

        Rated for 625 psi, the CJ-09G is compatible with high-pressure refrigerants like R32 and R410A. It features a double O-ring seal with metal backup, supporting both aluminium and copper tubing while preventing leaks and corrosion. A water-stop isolation feature helps reduce galvanic reaction between dissimilar metals. Supplied in a 2 pack for convenience.

        Installation Instructions

        1. Cut and Deburr the Pipe: Make sure the pipe ends are clean, round, and free of burrs.
        2. Insert the Fitting: Push the pipe into the Conic Joint fitting until it reaches the internal stop.
        3. Use the Correct Tightening Tool (Sold Separately): CJTT-0612 for CJ-06G (1/4") and CJ-12G (1/2"), CJTT-0915 for CJ-09G (3/8") and CJ-15G (5/8").
        4. Tighten in Two Stages: Using a standard wrench and the compatible tool, apply the first stage of compression. Continue to the second stage until firm resistance is met. Do not overtighten.
        5. Pressure Test: Pressurise the system and check for leaks before final commissioning.

        CJ-09G Features

        • No-Flare Installation: Two-step tightening with no need for flaring tools or torque wrenches.
        • 625 psi Pressure Rating: Built for high-pressure refrigerants including R32 and R410A.
        • Dual O-Ring + Metal Backup Seal: Delivers a tight, durable seal with leak protection.
        • Compatible with Aluminium & Copper: Designed for soft tubing without risk of flaring damage.
        • Water-Stop Corrosion Control: Reduces galvanic corrosion between mixed-metal connections.

        CJ-09G FAQ

        Q: Do I need specialised tools?
        A: No. A standard wrench is all that’s needed — no flaring or torque tools required.

        Q: Is this fitting suitable for R410A and R32 systems?
        A: Yes. It’s rated up to 625 psi and fully compatible with both refrigerants.

        Q: Can I use this on aluminium tubing?
        A: Yes. It’s safe for use with both aluminium and copper tubing.

        (CJ-09G)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 1 Year
        Commercial Use: 1 Year
        Warranty Method: Return to Sparky Direct

        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Inoac
        SKU CJ-09G
        Model # CJ-09G
        Barcode # 14905564167707
        Package Weight 0.085kg
        Package Width 0.120m
        Package Height 0.030m
        Package Length 0.070m
        TYPE VALUE
        Type Air-Conditioner Accessories
        Brand Inoac
        Quantity 2
        Suits Pipe Size 3/8" (9.52mm)
