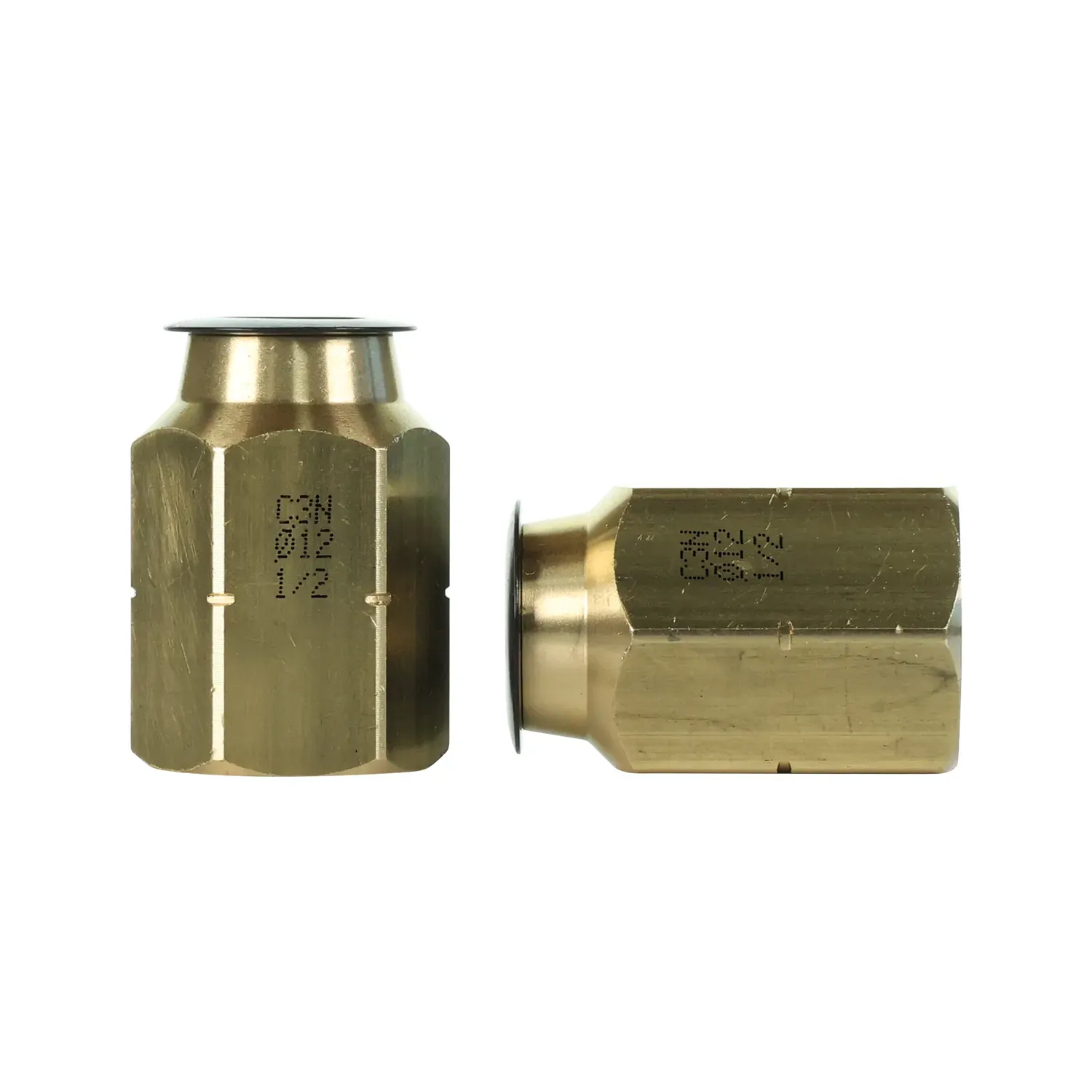

        Inoac CJ-12G | Conic Joint No-Flare 1/2" HVAC Fitting | 2 Pack

        The Inoac CJ-12G is a 1/2" no-flare HVAC fitting designed for fast, consistent refrigerant line connections without the need for flaring, deburring, or torque wrenches. With its simple two-step tightening process, it delivers a clean, professional-grade seal in less time.

        Rated for 625 psi, this fitting supports high-pressure refrigerants like R32 and R410A. It features a dual O-ring seal and metal backup ring for long-term reliability, and it’s compatible with both aluminium and copper tubing. A built-in water-stop system helps prevent galvanic corrosion at mixed-metal connections. Supplied in a 2 pack for convenience.

        Installation Instructions

        1. Cut and Deburr the Pipe: Make sure the pipe ends are clean, round, and free of burrs.
        2. Insert the Fitting: Push the pipe into the Conic Joint fitting until it reaches the internal stop.
        3. Use the Correct Tightening Tool (Sold Separately): CJTT-0612 for CJ-06G (1/4") and CJ-12G (1/2"), CJTT-0915 for CJ-09G (3/8") and CJ-15G (5/8").
        4. Tighten in Two Stages: Using a standard wrench and the compatible tool, apply the first stage of compression. Continue to the second stage until firm resistance is met. Do not overtighten.
        5. Pressure Test: Pressurise the system and check for leaks before final commissioning.

        CJ-12G Features

        • No-Flare Installation: Quick two-step process with no flaring tools or torque wrenches required.
        • 625 psi Pressure Rating: Suitable for modern refrigerants including R32 and R410A.
        • Dual O-Ring + Metal Backup Seal: Provides a durable, leak-free seal under pressure.
        • Aluminium & Copper Compatible: Ideal for use with soft tubing without flaring damage.
        • Water-Stop Isolation Design: Minimises galvanic corrosion between dissimilar metals.

        CJ-12G FAQ

        Q: Do I need any special tools to install this?
        A: No. A standard wrench is all that’s required. No flaring or torque tools needed.

        Q: Can it be used with R410A and R32?
        A: Yes. It’s rated for both refrigerants up to 625 psi.

        Q: Is it safe to use with aluminium tubing?
        A: Yes. It’s designed for both aluminium and copper tubing.

        (CJ-12G)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 1 Year
        Commercial Use: 1 Year
        Warranty Method: Return to Sparky Direct

        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Inoac
        SKU CJ-12G
        Model # CJ-12G
        Barcode # 14905564167714
        Package Weight 0.085kg
        Package Width 0.120m
        Package Height 0.030m
        Package Length 0.070m
        TYPE VALUE
        Type Air-Conditioner Accessories
        Brand Inoac
        Quantity 2
        Suits Pipe Size 1/2 (12.7mm)
