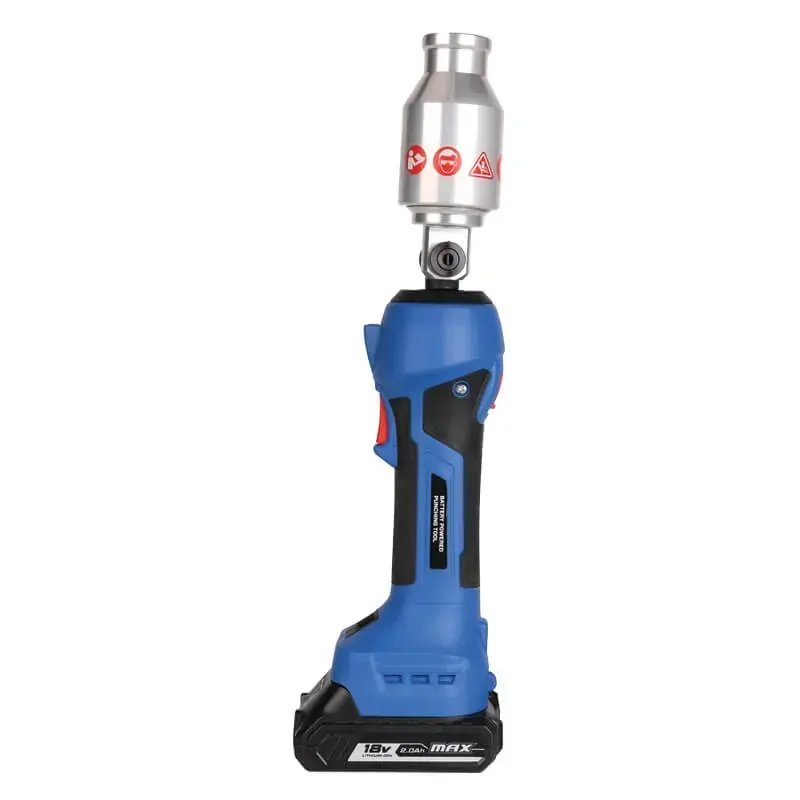

The Major Tech EPT60 is a battery-powered hydraulic punching tool rated at 60kN, running on an 18V 2.0Ah lithium-ion battery. It drives a two-stage hydraulic system through a 25mm stroke, with a punching head that rotates 180 by 360 degrees. The EPT60 ships as a kit with eight punching dies from 16.2mm to 63.5mm. Two batteries, a charger, a strap, and a carry case are included.
Cutting a clean aperture through a gland plate or enclosure wall is slow with a hole saw, and the swarf accumulates inside the board. A hydraulic punch shears the aperture in a single stroke. The EPT60 generates 60kN through a two-stage hydraulic system, accelerating on approach and concentrating force at the cut. The 180 by 360 degree rotating head positions the tool square to the work overhead or within a confined enclosure.
On a switchboard assembly, punching eliminates the hole saw, the deburring, and the subsequent clean-up. The OLED display reports punching time, battery charge, maintenance intervals, and fault codes, indicating the tool's condition rather than failing unexpectedly mid-job. An in-line grip distributes the weight through the forearm across repeated cycles. Two batteries in the kit allow one to charge while the other operates.
The EPT60 punches mild and stainless steel sheet and is not a tool for masonry, timber, or solid bar. The published capacity figures are inconsistent with the supplied die range, so confirm the maximum diameter and material thickness with the supplier before relying on the tool for a given job. A hydraulic punch develops crushing force at the head, so keep hands clear of the die and work to the manufacturer's operating instructions.
(EPT60)
Eight dies are supplied, from 16.2mm through to 63.5mm. The published material thickness figures do not line up with that die range, so confirm the capacity for your diameter and material with the supplier before ordering.
The tool is rated at 60kN with a 25mm stroke, driven by a two-stage hydraulic system. The two stages let the ram travel quickly on approach and develop its force at the point of cut.
The tool runs on an 18V 2.0Ah lithium-ion battery, and two are supplied in the kit. The included charger accepts AC 100V to 240V at 50 or 60Hz, which covers Australian mains.
The kit contains the punching tool, punching dies, a battery charger, two batteries, a strap, and a carry case. Major Tech supplies this tool as a complete kit rather than as a bare unit.
The display reports punching time, battery charge level, maintenance reminders, and fault codes. That gives the operator service status and a fault indication without the tool being pulled apart.
The punching head rotates 180 by 360 degrees, so the tool can be positioned square to the work on a mounted enclosure. The in-line grip is designed around that kind of single-operator work.
Sparky Direct also lists the Major Tech ECT240 and ECT400 battery-powered crimping tools, along with the MTKBAG heavy duty bag. Check the battery platform on each tool before assuming packs are interchangeable.
The Major Tech EPT60 is available online from Sparky Direct, with Australia-wide delivery to any state or territory including regional areas. Sparky Direct is an Australian electrical wholesaler established in 2005, supplying more than 500,000 customers with transparent trade pricing.
The manufacturer's technical data rates the fan at 105 litres per second against 83 Pa of static pressure. Free-delivery airflow with no duct resistance is higher, around 136 L/s. Design to the duty figure rather than the open-outlet number.
Total sound pressure is 36 dBA measured at 3 metres. The technical data notes the A-weighted figure is approximate, because octave band data is not published for this fan.
The housing installs into a 279mm cut-out and is covered by a 329mm round grille. That overlap gives some tolerance when the fan replaces an older unit on an existing opening.
The fan is supplied with a 1.2 metre lead and a two-pin plug, so it needs a socket within reach in the ceiling space. Supply is 240V single phase at 50Hz, drawing 0.25A. A licensed electrician carries out the work.
The damper closes when the fan stops, blocking outside air, insects, and roof-space air from tracking back down the duct into the room. It is integrated rather than a separate in-line component.
The outlet spigot is 150mm, suiting standard 150mm flexible or rigid duct. Sparky Direct also lists the AIRWARE AIRAWFX150-3 flexible aluminium duct and the Sigrist NRD-150 non-return damper in the same size.
An electronically commutated motor controls speed electronically, and this one is rated at 0.038kW drawing 0.25A. The manufacturer's technical data also states 2019 and 2022 NCC/BCA Section J compliance for the fan.
The Airvent ECHB-150N is available online from Sparky Direct, with Australia-wide delivery to any state or territory including regional areas. Sparky Direct is an Australian electrical wholesaler established in 2005, supplying more than 500,000 customers with transparent trade pricing.
100-Day Fuss-Free Returns
We want you to love what you buy—but if you change your mind, that’s okay too. That’s why Sparky Direct offers a 100-day money-back guarantee.
If your item isn’t in its original condition, please contact us before returning it—we might save you time and money.
All products come with a manufacturer’s or supplier’s warranty
Damaged or Faulty Goods
If your order arrives damaged or is faulty, let us know within 24 hours.
Contact us via our chat to arrange the return.
Exclusions
We can’t accept returns for:
How to Request a Return
Warranty starts from Invoice Date
Domestic Use: 2 Year
Commercial Use: 2 Year
Warranty Method: Return to Sparky Direct
| Specification | Details |
|---|---|
| Punching Dies | Ø 16.2mm, Ø 20.4mm, Ø 22.5mm, Ø 25.4mm, Ø 32.5mm, Ø 40.5mm, Ø 50.8mm, Ø 63.5mm |
| Rated Pressure | 60kN |
| Stroke | 25mm |
| Round Punch Size | Ø 61.5mm in 3.5mm mild steel Ø 161.9mm in 2mm mild steel Ø 61.5mm in 2.5mm stainless steel |
| Battery | 18V Li-ion 2.0Ah |
| Charger | AC 100V – 240V 50/60Hz |
These specifications and characteristics outline physical, mechanical, electrical details.
| Brand | Major Tech |
| SKU | EPT60 |
| Model # | EPT60 |
| Barcode # | 6008229042089 |
| Package Weight | 2.500kg |
| TYPE | VALUE |
|---|---|
| Type | Punchdown Tools & Accessories |
| Brand | Major Tech |
| Colour | Blue & Black |
| Tool Type | Powered Tool |
| Battery | 18V 2.0Ah Li-ion |
| Included | Lithium Batteries, Charger, Carrying Case |
| Rated Pressure | 60kN |
| Punching Dies | Ø 16.2mm, Ø 20.4mm, Ø 22.5mm, Ø 25.4mm, Ø 32.5mm, Ø 40.5mm, Ø 50.8mm, Ø 63.5mm |
