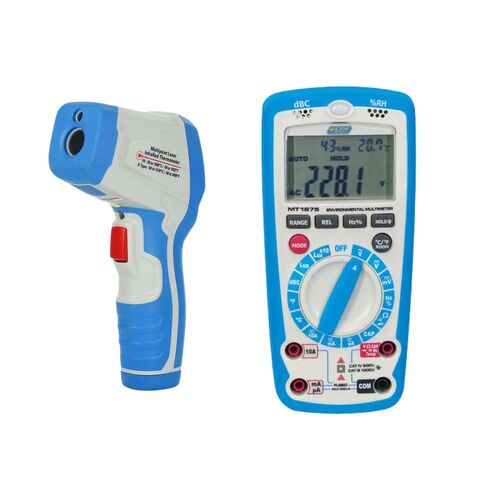

Major Tech MATE-5 | MT694 IR Thermometer + MT1875 Environmental Multimeter
$452.10
$411.00 ex. GST
Est Dispatch 1-2 days
Search Results:
Search Results:
Search Results:
Search Results:
Major Tech MATE-5 | MT694 IR Thermometer + MT1875 Environmental Multimeter
Learn more by watching our Major Tech MATE-5 | MT694 IR Thermometer + MT1875 Environmental Multimeter video.
Additional related video.
Additional related video.
Major Tech MT694 | 1000ºC Multipoint Laser Infrared Thermometer
Download the Datasheet
Description:
The MT694 is a small and compact pistol grip type infrared thermometer which can provide fast and accurate readings for most surface temperature measurements due to its sampling rate of 150 milliseconds. The distance to spot ratio is 20:1 and the temperature range is from -50°C to 1000°C. This meter features a multipoint laser which increases the target accuracy when the unit is at the optimum distance from the object being measured. Special features include adjustable emissivity from 0.10 to 1.0, external Type-K temperature measurements, response time 150mS, max hold, large backlit LCD display, High and Low alarm and a trigger lock for continuous use.
Features:
Major Tech MT1875 | 6-in-1 Environmental Multimeter
Download the Datasheet
Description:
The MT1875 is a 6-in-1 Digital Multimeter with Environmental Measurement. It has been designed to combine the functions of Sound Level, Light Meter, Humidity, Temperature and non contact voltage detector all in one meter. Sound level can be used in factories, schools, offices and homes, checking acoustics of studios, auditoriums and hi-fi installations. Light meter is fully cosine corrected for the angular incidence of light. Temperature is measured via a K-Type thermocouple. The Digital Multimeter function includes AC volt, DC volt, AC current, DC current, Resistance, Capacitance, Frequency and Duty Cycle.
Features:
(MATE-5)
Warranty starts from Invoice Date
Domestic Use: 1 Year
Commercial Use: 1 Year
Warranty Method: Return to Sparky Direct
| Function | Range | Resolution | Accuracy |
| Infrared Temperature Range | -50°C – 1000°C | 0.1°C | ±(1% ± 1°C) |
| Type-K Temperature Range | -50°C – 1350°C | 0.1°C | ±(0.5% ± 1.5°C) |
| Spectral Response | 8 to 14um | ||
| Display | LCD Display | ||
| Spot Ration | 20:1 | ||
| Adjustable Emissivity | 0.10 – 1.0 | ||
| Laser Targeting | Multi Point | ||
| Min/Max/Diff/Ave | Yes | ||
| Hi/Low Alarm | Yes | ||
| Back Light | Yes | ||
| Enclosure | Moulded IP54 | ||
| Low Battery Indication | Yes | ||
| Batteries | 2 x AAA | ||
| Weight | 248g | ||
| Dimensions | 170 x 50 x 90mm | ||
| Function | Range | Resolution | Accuracy |
| DC Voltage | 400.0mV – 600V | 0.1mV | ±(1.0% + 4 Digits) |
| AC Voltage | 400.0mV – 600V | 0.1mV | ±(1.0% + 4 Digits) |
| DC Current | 400.0μA – 10A | 0.1μA | ±(1.0%+ 2 Digits) |
| AC Current | 400.0μA – 10A | 0.1μA | ±(1.2% + 2 Digits) |
| Duty Cycle | 0.1 to 99.90% | 0,001 | ±(1.2% + 2 Digits) |
| Resistance | 400.0Ω – 40.00MΩ | 0.1Ω | ±(1.5% + 2 Digits) |
| Frequency | 5.000Hz – 10.00MHz | 0.001Hz | ±(1.2% + 3 Digits) |
| dB Measurements | 35-110dB | 0.1dB | ±(5dB + 94dB) |
| Capacitance | 50.00nF – 100.0μF | 10pF | ±(3.0% + 5 Digits) |
| Temperature | -20°C to750°C | 1°C | ±(3.0%+ 5 Digits) |
| Humidity | 33%-99% | 1%RH | ±(3.0%+ 5 Digits) |
| Lux | 4000-40,000Lux | 1Lux | ±(5.0% + 10 Digits) |
| AC Bandwidth | 50Hz to 400Hz | ||
| Digital Display | 4000 | ||
| Continuity | Yes | ||
| Diode Test | Yes | ||
| Non-Contact Voltage (NCV) | Yes | ||
| Overrange Indication | Yes | ||
| Input Impedance | >10MΩ VDC & >9MΩ VAC | ||
| Data Hold | Yes | ||
| Enclosure | Double moulded | ||
| Low Battery Indication | Yes | ||
| Battery | 9V | ||
| Weight | 335g | ||
| Dimensions | 170 x 79 x 50mm | ||
| Safety Specs | IEC61010-1 CAT IV 600V | ||
These specifications and characteristics outline physical, mechanical, electrical details.
| Brand | Major Tech |
| SKU | MATE-5 |
| TYPE | VALUE |
|---|---|
| Brand | Major Tech |
| Combo | MT694 + MT1875 |
| Colours | Blue, Red, White |
