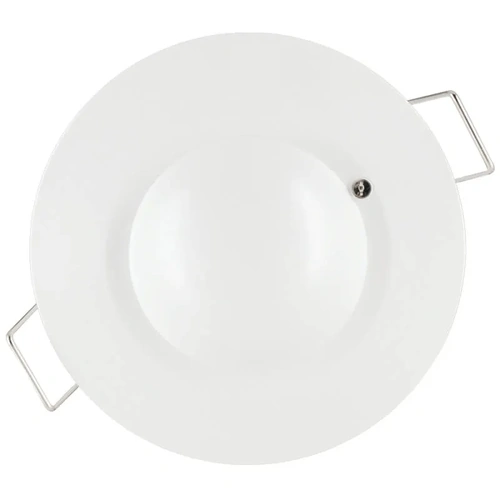

        Major Tech MS363 | 360° Indoor Microwave Motion Sensor Ceiling Mount | IP20

        The Major Tech MS363 is a 360° microwave ceiling sensor designed for smart motion detection in indoor automation applications. It uses 5.8GHz radar technology to detect subtle movement and body heat, even through glass, plaster, or doors - offering better coverage and reliability than standard PIR sensors.

        Perfect for homes, schools, and offices, the MS363 includes adjustable detection distance, time delay, and lux settings for custom operation. It supports up to 300W LED/CFL and is rated IP20 for dry, indoor use.

        MS363 Features

        • 360° Ceiling Coverage: Wide-range detection up to 16 metres
        • Microwave Radar Detection: Senses motion through non-metallic barriers
        • Adjustable Time Delay: Set from 10 seconds to 12 minutes
        • Lux Control: Ambient light threshold from 3 to 2000 LUX
        • Low Power Standby: Energy-efficient with <0.9W consumption
        • Load Rating: 1200W incandescent or 300W LED/CFL

        MS363 FAQ

        Q: Can this be mounted on any indoor ceiling?
        A: Yes, it’s designed for indoor use with a 1.5m-3.5m install height.

        Q: Does it detect through doors or walls?
        A: Yes, it uses microwave radar to detect motion through thin, non-metallic materials.

        Q: What lighting types does it support?
        A: It can control LED/CFL up to 300W and incandescent loads up to 1200W.

        (MS363)

        Warranty

        Warranty starts from Invoice Date

        5 Years Limited Warranty
        Warranty Method: Return to Sparky Direct

        Features
        Specification Details
        Function 360°
        Detection Distance 2m – 16m (Adjustable) <24°C
        Detection Motion Speed 0.6 to 1.5 m/s
        HF System 5.8GHz CW Radar, ISM Band
        Ambient Light <3 to 2000 Lux (Adjustable)
        Installation Height 1.5m – 3.5m
        Voltage 220 to 240V AC
        Power Frequency 50/60Hz
        Rated Load Incandescent: 1200W
        LED / CFL: 300W
        Time Delay 10 sec (±3 sec) to 12 min (±1 min)
        Power Consumption <0.9W
        Mounting Ceiling Mount
        Working Temperature -20°C to 40°C
        Working Humidity <93% RH
        IP Rating IP20 (Indoor installation)
        Standards IEC 60669-1 / 60669-2-1
        AS/NZS 60669.1 / 60669.2.1
        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Major Tech
        SKU MS363
        Model # MS363
        Barcode # 6008229026997
        Package Weight 0.135kg
        Package Width 0.080m
        Package Height 0.120m
        Package Length 0.100m
        TYPE VALUE
        Type Sensor
        Brand Major Tech
        Voltage (V) 220 to 240V AC
        Time Delay 10 sec (±3 sec) to 12 min (±1 min)
        Detection Distance 2m - 16m (Adjustable) <24°C
        Detection Area 360°
        Detection Motion Speed 0.6 to 1.5m/s
        HF System 5.8GHz CW Radar, ISM Band
        Ambient Light <3 to 2000 Lux (Adjustable)
        Installation Height (M) 1.5-3.5M
