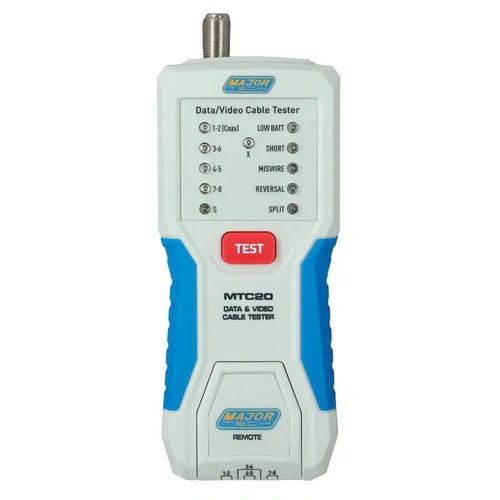

        Major Tech MTC20 | Data Video Cable Tester 305m

        The Major Tech MTC20 is a handy tool for testing network and coaxial cables, making troubleshooting quick and easy. It works with RJ45-terminated network cables and coaxial cables with F connectors, making it a must-have for network techs, IT professionals, and AV installers.

        With clear LED indicators, it detects wiring faults like split pairs, opens, shorts, reversals, and miswires. The detachable remote terminator allows for long-distance testing, and it supports both shielded and unshielded cables, including Cat 3, Cat 5, Cat 6, Cat 7, and coaxial lines. Running on two AAA batteries, it also features a low battery indicator to ensure it's always ready to use.

        Major Tech MTC20 Features:

        • Supports RJ45 & Coaxial Cables – Tests network and video cables up to 305m.
        • Detects Wiring Faults – Identifies split pairs, shorts, miswires, and reversed pairs.
        • LED Status Indicators – Provides clear feedback on cable continuity and errors.
        • Detachable Remote Terminator – Allows for easy long-distance testing.
        • Battery-Powered & Portable – Runs on two AAA batteries with a low battery indicator.

        MTC20 FAQ:

        Q: What types of cables can this tester handle?
        A: It supports Cat 3, Cat 5, Cat 6, Cat 7, and coaxial cables with F connectors.

        Q: How far can this tester measure cables?
        A: It can test cable lengths up to 305 meters (1000 feet).

        Q: Does it indicate wiring issues?
        A: Yes, it detects split pairs, shorts, miswires, reversals, and continuity problems with LED indicators.

        (MTC20)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 1 Year
        Commercial Use: 1 Year
        Warranty Method: Return to Sparky Direct

        Features
        Function Range
        Operating Temperature 0°C to 50°C
        Operating Humidity 10% to 90%, non-condensing
        Maximum Voltage 60V DC or 55V AC (between 2 pins)
        Battery Type 2 x AAA 1.5V
        Cable Types Supported Shielded or Unshielded: Cat 7, Cat 7a, Cat 6a, Cat 6, Cat 5e, Cat 5, Cat 3, Coax
        Maximum Cable Length 305 meters
        Minimum Cable Length 0.5 meters for split pair detection
        Maximum Cable Resistance Max. 100 ohms DC
        LED Status Indicators Twisted pairs (RJ45)/Coax, Continuity, X (Cross-overs), S (Shield status), Split, Reversal, Miswire, Short, and Low Battery
        Detachable Remote RJ45
        Dimensions 141 × 54.5 × 27.8 mm
        Weight 122g
        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Major Tech
        SKU MTC20
        Barcode # 6008229041556
        Package Weight 0.256kg
        Package Width 0.137m
        Package Height 0.046m
        Package Length 0.230m
        TYPE VALUE
        Type Cable Mapper
        Brand Major Tech
        Dimensions 141 x 55 x 28mm
        Battery 2 x AAA 1.5V
        Weight 122g
        Cable Types Shielded or Unshielded: Cat 7, Cat 7a, Cat 6a, Cat 6, Cat 5e, Cat 5, Cat 3, Coax
        Maximum Voltage 60V DC/55V AC
        Maximum Cable Length 305m
