Learn more by watching our Major Tech MTC20 | Data Video Cable Tester 305m video.

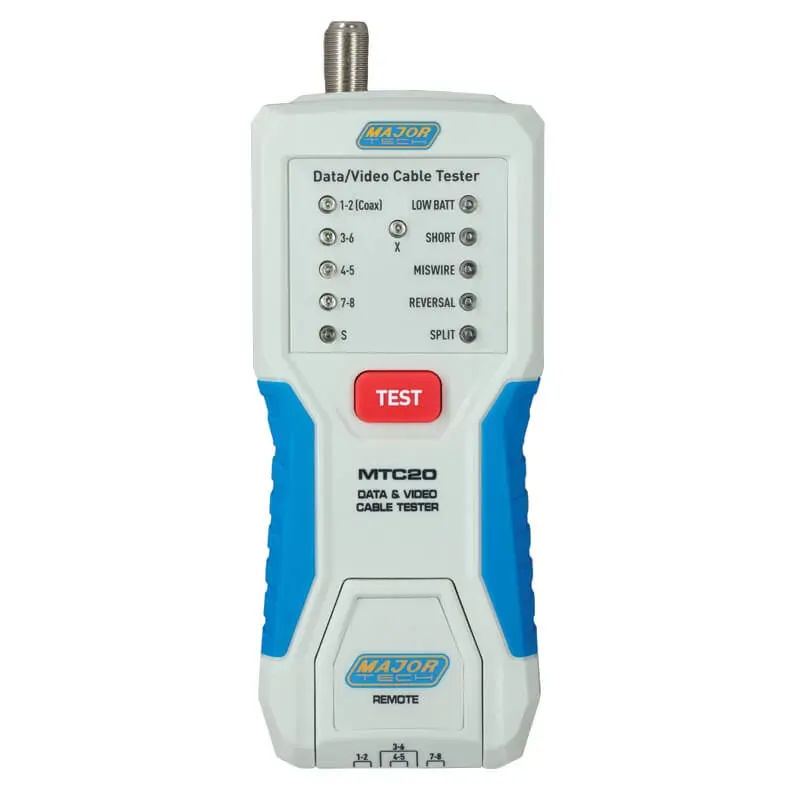

The Major Tech MTC20 is a handheld data and video cable tester that maps and checks network and coaxial runs. It tests RJ45-terminated network cable and coaxial cable with F connectors at lengths up to 305 metres. The MTC20 flags split pairs, opens, shorts, reversals, miswires, and shield status through a bank of clear LED indicators. It runs on two AAA batteries and ships with a detachable remote terminator for long runs.
Structured cabling faults are hard to chase once the cable disappears into a wall or ceiling. A drop that will not link, a patch lead that fails, or a coax run with no signal all need checking before the wall goes back on. The MTC20 confirms continuity and correct pin-to-pin wiring on both data and video cable, so faults show up on the LED bank rather than after handover. Its detachable remote terminator lets one person test a run end to end across a building.
Data and comms work sits alongside power for a lot of sparkies, and a single tester that covers RJ45 and coaxial saves carrying two tools. The MTC20 checks Cat 3 through to Cat 7a plus coax, shielded or unshielded, so it handles most jobs from old phone cable to current data runs. It runs on two AAA batteries with a low-battery indicator, so there is no charging routine before a callout. At 122 grams it drops into a tool pouch and stays out of the way until a run needs checking.
The MTC20 maps wiring, continuity, and shield status; it does not certify cable to a performance category or measure bandwidth, PoE, or signal loss. It is a wiring and continuity tester, not a live-circuit tester, so it must not be connected to energised mains or any cable carrying more than 60V DC or 55V AC. Performance certification for warranty-backed data installs sits outside what this unit does.
(MTC20)
The MTC20 tests RJ45-terminated network cable and coaxial cable with F connectors. It supports shielded and unshielded Cat 3, Cat 5, Cat 5e, Cat 6, Cat 6a, Cat 7, and Cat 7a, plus coax, on runs up to 305 metres.
The tester detects split pairs, opens, shorts, reversals, cross-overs, and miswires. A bank of LED indicators shows twisted-pair status, continuity, shield status, split, reversal, miswire, short, and low battery, so a fault reads straight off the unit.
The MTC20 does not certify cable to a performance category. It is a wiring and continuity tester, also called a cable mapper, that confirms the pins are wired correctly and the run is continuous end to end. It does not measure bandwidth or signal loss.
The remote terminator clips off the main unit. You leave the tester at one end of a cable run and place the RJ45 remote at the far end, then read the result on the LED bank. One person can test a long run across a building without a helper.
The tester runs on two AAA 1.5V batteries. A low-battery indicator sits in the LED bank and warns when the cells are getting flat, so a weak battery does not cause a misread during testing. Battery power keeps the unit portable for on-site work.
The MTC20 carries a two-year warranty for both domestic and commercial use through Sparky Direct. Warranty starts from the invoice date and is handled on a return-to-base basis. Faulty units are forwarded to Major Tech's authorised service centre for assessment.
The MTC20 is for unpowered data and coaxial cable only. It must not be connected to energised mains or any cable carrying more than 60V DC or 55V AC between pins. Isolate and disconnect a cable before testing to protect the unit.
The Major Tech MTC20 is available online from Sparky Direct, with Australia-wide delivery to any state or territory including regional areas. Sparky Direct is an Australian electrical wholesaler established in 2005, supplying more than 500,000 customers with transparent trade pricing.
100-Day Fuss-Free Returns
We want you to love what you buy—but if you change your mind, that’s okay too. That’s why Sparky Direct offers a 100-day money-back guarantee.
If your item isn’t in its original condition, please contact us before returning it—we might save you time and money.
All products come with a manufacturer’s or supplier’s warranty
Damaged or Faulty Goods
If your order arrives damaged or is faulty, let us know within 24 hours.
Contact us via our chat to arrange the return.
Exclusions
We can’t accept returns for:
How to Request a Return
Warranty starts from Invoice Date
Domestic Use: 2 Year
Commercial Use: 2 Year
Warranty Method: Return to Sparky Direct
All Major Tech Meters sold through Sparky Direct are covered by the manufacturer’s warranty. If you believe your meter is faulty or defective, you may request an assessment under this warranty policy.
To initiate a warranty claim:
Return to Sparky Direct
Ship the meter back to Sparky Direct along with:
Please ensure the unit is securely packaged to prevent damage in transit.
Forwarded for Assessment
Upon receiving your meter, we will forward it to Major Tech’s authorised service centre for inspection, testing, and calibration.
Major Tech’s service lab will assess the returned unit to determine:
As Major Tech’s service labs are independent providers, Sparky Direct cannot govern or guarantee turnaround times or any costs incurred for repairs outside of warranty coverage.
| Function | Range |
|---|---|
| Operating Temperature | 0°C to 50°C |
| Operating Humidity | 10% to 90%, non-condensing |
| Maximum Voltage | 60V DC or 55V AC (between 2 pins) |
| Battery Type | 2 x AAA 1.5V |
| Cable Types Supported | Shielded or Unshielded: Cat 7, Cat 7a, Cat 6a, Cat 6, Cat 5e, Cat 5, Cat 3, Coax |
| Maximum Cable Length | 305 meters |
| Minimum Cable Length | 0.5 meters for split pair detection |
| Maximum Cable Resistance | Max. 100 ohms DC |
| LED Status Indicators | Twisted pairs (RJ45)/Coax, Continuity, X (Cross-overs), S (Shield status), Split, Reversal, Miswire, Short, and Low Battery |
| Detachable Remote | RJ45 |
| Dimensions | 141 × 54.5 × 27.8 mm |
| Weight | 122g |
These specifications and characteristics outline physical, mechanical, electrical details.
| Brand | Major Tech |
| SKU | MTC20 |
| Barcode # | 6008229041556 |
| Package Weight | 0.256kg |
| TYPE | VALUE |
|---|---|
| Type | Cable Mapper |
| Brand | Major Tech |
| Dimensions | 141 x 55 x 28mm |
| Battery | 2 x AAA 1.5V |
| Weight | 122g |
| Cable Types | Shielded or Unshielded: Cat 7, Cat 7a, Cat 6a, Cat 6, Cat 5e, Cat 5, Cat 3, Coax |
| Maximum Voltage | 60V DC/55V AC |
| Maximum Cable Length | 305m |
