Learn more by watching our Major Tech MTi13 | Thermal Imager 256x192px 2.8" LCD video.

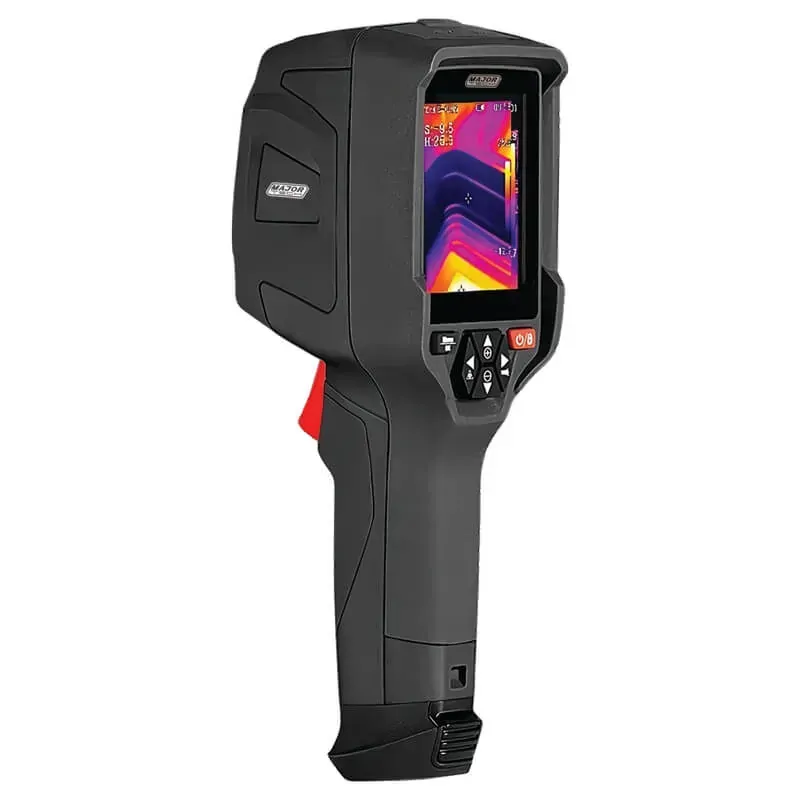

The MTi13 Thermal Imager features a 256×192 pixel uncooled microbolometer sensor for real-time temperature analysis in electrical, mechanical, and HVAC applications. It delivers smooth imaging at 25Hz on a 2.8" LCD and supports IR, visual, and picture-in-picture fusion modes.
With Wi-Fi and USB-C connectivity, it enables live streaming and easy file transfer. Thermview Pro software allows detailed analysis, while features like hot/cold markers, adjustable emissivity, and a wide -20°C to 550°C range support predictive maintenance and diagnostics.
Q: Can I transfer thermal videos and images to a PC or mobile?
A: Yes, via USB-C or Wi-Fi using the included Thermview Pro software.
Q: Does it support live streaming?
A: Yes, it streams thermal video in real time over Wi-Fi or USB.
Q: What is the temperature measurement range?
A: -20°C to 550°C with ±2°C or ±2% accuracy.
(MTi13)
Warranty starts from Invoice Date
Domestic Use: 2 Year
Commercial Use: 2 Year
Warranty Method: Return to Sparky Direct
All Major Tech Meters sold through Sparky Direct are covered by the manufacturer’s warranty. If you believe your meter is faulty or defective, you may request an assessment under this warranty policy.
To initiate a warranty claim:
Return to Sparky Direct
Ship the meter back to Sparky Direct along with:
Please ensure the unit is securely packaged to prevent damage in transit.
Forwarded for Assessment
Upon receiving your meter, we will forward it to Major Tech’s authorised service centre for inspection, testing, and calibration.
Major Tech’s service lab will assess the returned unit to determine:
As Major Tech’s service labs are independent providers, Sparky Direct cannot govern or guarantee turnaround times or any costs incurred for repairs outside of warranty coverage.
| Specification | Details |
|---|---|
| Field of View | 62° x 48° |
| Spatial Resolution (IFOV) | 4.6mrad |
| Thermal Sensitivity/NETD | <0.04°C at +30°C / 40mK |
| Image Range | 25Hz |
| Focus Mode | Auto Focus |
| Zoom | 1 - 32x continuous, digital zoom |
| Focal Length | 7.5mm |
| FPA / Spectral Range | Uncooled microbolometer / 8–14μm |
| IR Resolution | 256 x 192 Pixels |
| Display | 2.8” LCD, 240 x 320 |
| Image Modes | IR, Visual, Auto Fusion |
| Picture in Picture | IR on visual or visual on IR |
| Colour Palettes | Iron, Rainbow, Grey, Grey Inverted, Brown, Blue-Red, Hot-Cold, Feather |
| Temperature Range | -20°C to 400°C |
| Temperature Accuracy | ±2°C or ±2% of reading |
| Measurement Tools | Centre spot, 2 lines, 3 areas with max/min/avg, Auto hot/cold markers |
| Emissivity Correction | 0.01 to 1.0, standard table |
| Measurement Corrections | Emissivity, Reflective temp, Ambient temp, Distance, Relative humidity, Infrared compensation |
| Storage (Video) | 4GB Micro SD, MPEG-4, 640×480 @30fps, >60 minutes |
| Storage (Images) | JPEG or HIR, >6000 pictures |
| Camera | 2MP, FOV 65° |
| Connectivity | USB-Type C, Wi-Fi 802.11 |
| Power Source | Li-ion battery, 4 hours |
| Charging | In-camera (AC adapter) |
| Weight | 500g |
| Dimensions | 224 x 77 x 96mm |
| Safety Specs | EN61010-1 |
These specifications and characteristics outline physical, mechanical, electrical details.
| Brand | Major Tech |
| SKU | MTi13 |
| TYPE | VALUE |
|---|---|
| Type | Thermometer |
| Brand | Major Tech |
| Battery Life | 4 Hours |
| Temperature Range | -20°C to 400°C |
| Display | 2.8” LCD, 240 x 320 |
| Field of View | 62° x 48° |
| Image Frequency | 25Hz |
| Focal length | 7.5mm |
| IR Resolution | 256 x 192 |
| Media Storage | 4GB Micro SD Card |
| Connections | USB Type C, Data and Live Video transfer to PC/App |
