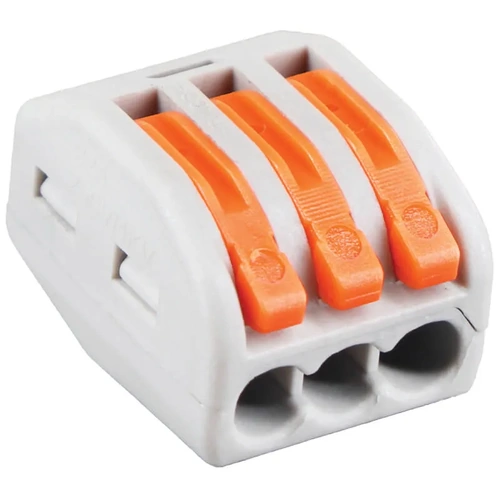

        Major Tech PCT-213B | 2.5mm² 3-Pole Splicing Connector Blocks | Jar of 70

        The Major Tech PCT-213B is a 3-pole screwless splicing connector built for fast, reliable, and tool-free wiring. Designed to simplify installs in tight switchboards or junctions, it’s perfect for electricians working on fast-paced jobs or quick maintenance tasks.

        Each connector handles up to 2.5mm² conductors, with quick clamp levers for rapid connection and disconnection. Rated at 32A / 450V and insulated to 4kV, these connectors provide a safe, reusable alternative to screw terminals or twist connectors.

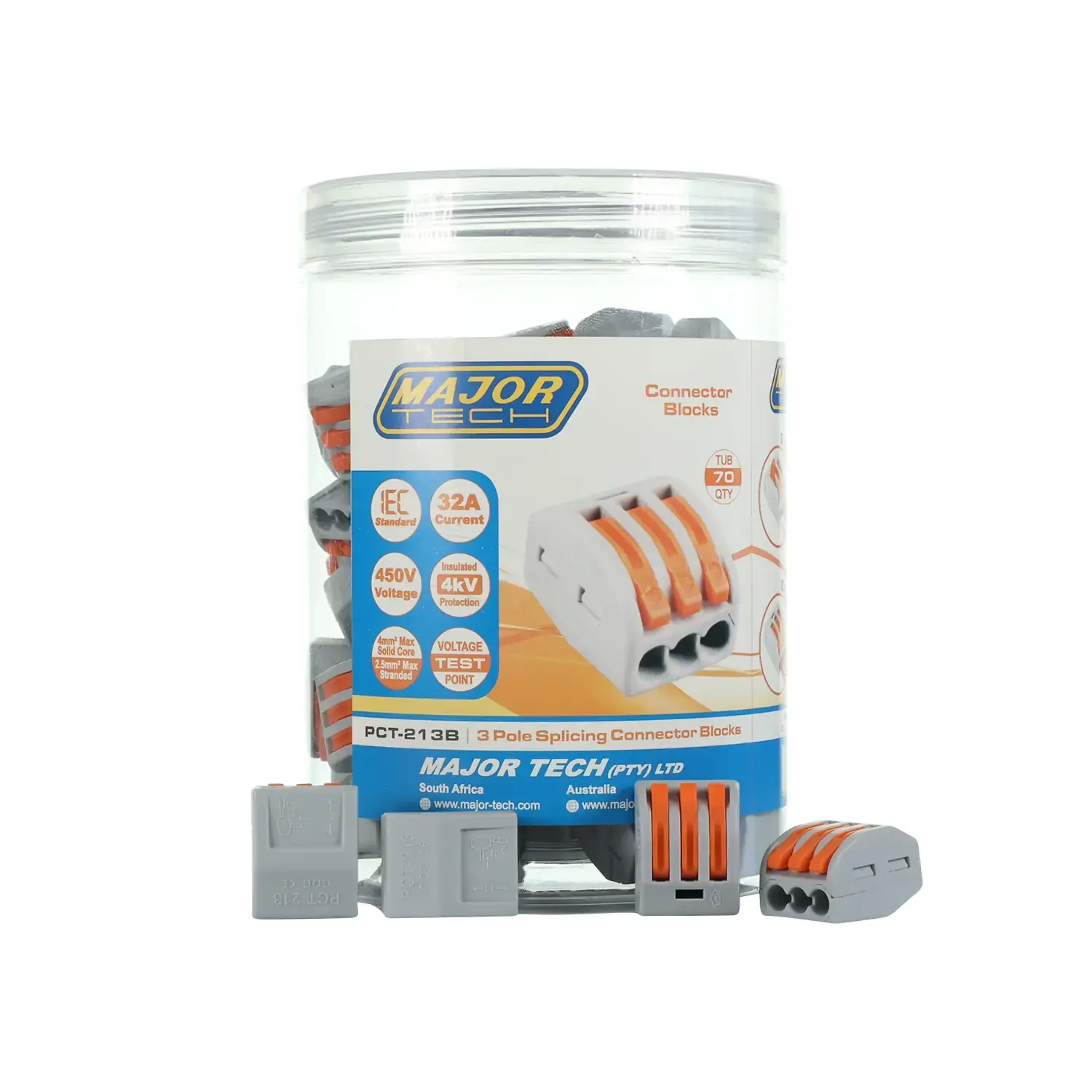

        Supplied in a jar of 70, they’re easy to grab and go for bulk jobs.

        PCT-213B Features

        • 3-Pole Connector: For linking or branching two conductors up to 2.5mm²
        • Tool-Free Clamp: No screwdriver needed - just strip and push
        • Quick Release Lever: Allows for fast rework or repositioning
        • High Electrical Ratings: 32A / 450V rated, 4kV dielectric strength
        • Compact Size: 17.1 x 21.2 x 14.5mm - fits tight enclosures
        • Supplied in Jar of 70: Trade-sized pack for bulk use

        PCT-213B FAQ

        Q: What wire sizes are supported?
        A: Up to 2.5mm² solid or stranded conductors.

        Q: Do I need tools to install?
        A: No - the lever clamps make installation fully tool-free.

        Q: Can these be reused?
        A: Yes, the quick-release lever lets you disconnect and reuse without damage.

        (PCT-213B)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 1 Year
        Commercial Use: 1 Year
        Warranty Method: Return to Sparky Direct

        Features
        Specification Details
        Application Splicing / Linking
        Pole 3
        Rated Current 32A
        Rated Voltage 450V
        Voltage Resistance 4kV
        Strip Length 11mm to 12mm
        Dimensions 17.1 × 21.2 × 14.5mm
        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Major Tech
        SKU PCT-213B
        Model # PCT-213B
        Barcode # 6008229041426
        Package Weight 0.370kg
        Package Width 0.085m
        Package Height 0.125m
        Package Length 0.085m
        TYPE VALUE
        Type Electrical Accessories
        Colour Grey
        Nominal Voltage 450V
        Dimensions 17.1 x 21.2 x 14.5mm
        Rated Current 32A
        Connection points 3
