Martec | Proton DC Ceiling Fan 1320mm 36W with 24W Tricolour LED | Matt White

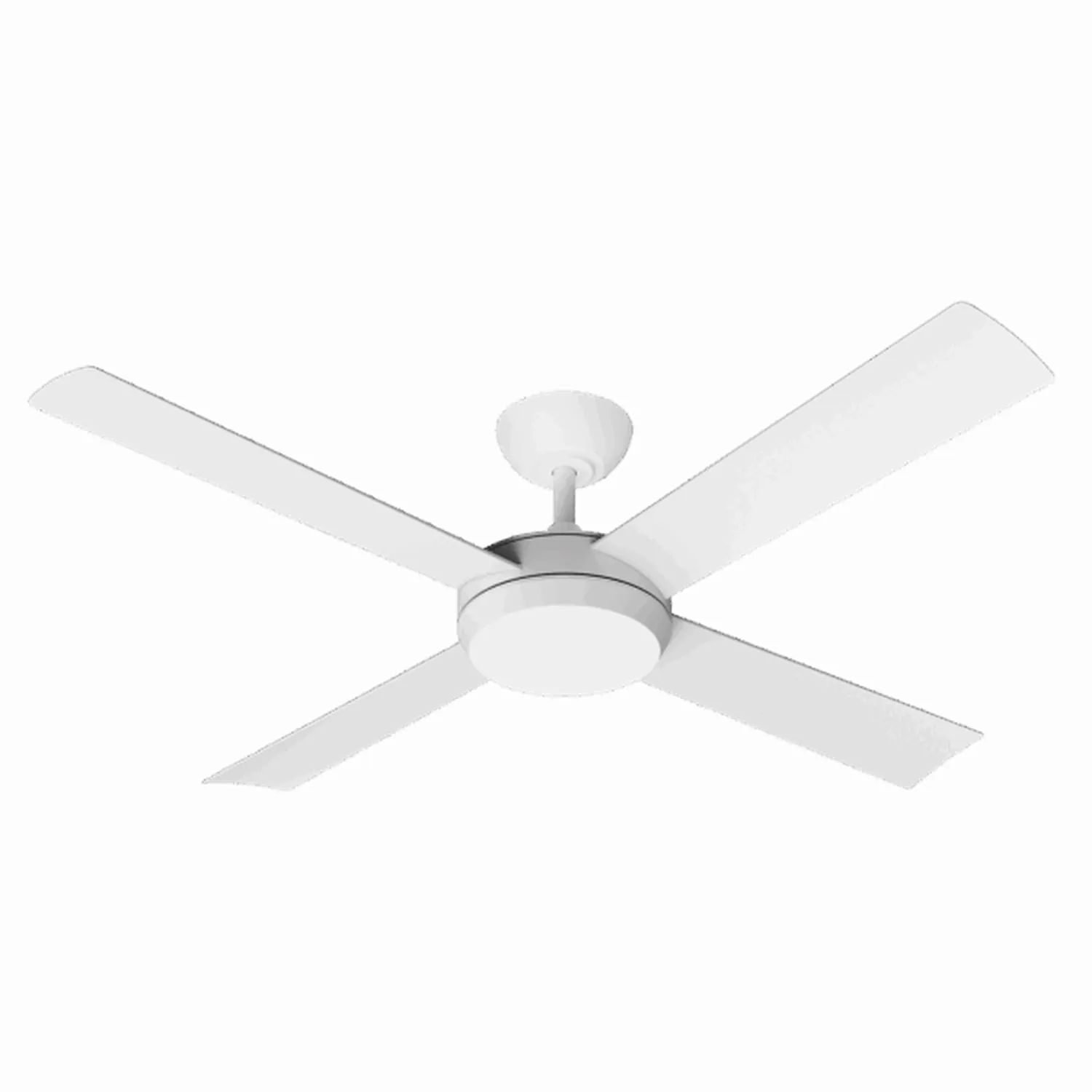

The Martec MPDC1343W is a 1320mm (52 inch) ceiling fan with an integrated 24W tricolour LED light, driven by a 36W brushless DC motor and finished in matt white. The MPDC1343W carries four ABS blades set at a 12.5 degree pitch and runs on 220-240V a.c. at 50-60Hz. A wall control is supplied with the fan, which is fully reversible for summer and winter operation.
Where a bedroom or covered patio has only one ceiling point, the fan and the light have to share it. The MPDC1343W puts both on that point: up to 12,000m3/hr of air movement from a 36W brushless DC motor, plus up to 2500 lumens from the LED. The light switches between 3000K, 4000K and 5000K at the wall. Four ABS blades turn at up to 210 RPM, with the body sitting 325mm below the ceiling.
AS/NZS 60335-1 clause 7.12.2 requires a complete all-pole isolation switch in the fixed wiring, and Martec voids the warranty where the fan goes in without one. The wall control is supplied with the fan, though the wall plate is not. Fan and light must run on the same phase, and both circuits need isolating before any service work.
Features
- 36W brushless DC motor — draws 36W at full output, with no brushes to wear in the motor assembly.
- 1320mm blade span — a 52 inch sweep for living rooms, larger bedrooms and covered outdoor areas.
- Four ABS blades — moulded ABS blades set on a 12.5 degree pitch across the 1320mm span.
- Three speed settings — 9,380m3/hr on speed one, 10,368m3/hr on speed two and 12,000m3/hr on speed three.
- Airflow efficiency to 333m3/hr per watt — the MPDC1343W moves up to 333 cubic metres of air per hour for every watt drawn.
- 210 RPM maximum — blade speed tops out at 210 revolutions per minute on the highest setting.
- 24W tricolour LED — an integrated LED light module built into the base of the motor housing.
- Switchable 3000K, 4000K, 5000K — one fitting covers warm white, natural white and cool white colour temperatures.
- Up to 2500 lumens — the LED module puts out up to 2500 lumens at full output.
- 50,000 hour rated lifetime — the LED is rated at 50,000 hours measured at 25 degrees Celsius ambient.
- All-ABS construction — body, canopy and blades are ABS, with a PMMA lens cover over the light.
- 20kg ceiling support required — the mounting structure must carry at least 20kg, fixed to solid bracing rather than plasterboard alone.
Where to use
- Bedrooms and children's rooms — speed one runs at 9,380m3/hr, low enough for overnight air movement without a wind tunnel.
- Single ceiling points — the MPDC1343W puts fan and light on one point where the room has no separate light outlet.
- Living and dining rooms — the 1320mm sweep covers a larger lounge or open dining zone.
- Covered patios and alfresco areas — rated for covered outdoor use, so it suits roofed entertaining spaces and verandahs.
- Mixed lighting schemes — the 3000K to 5000K switching lets one model match warm living areas and cooler kitchens on the same job.
- Flat and raked ceilings — the hangsure canopy handles ceiling slope up to 10 degrees without an accessory kit.
- Year-round rooms — reverse operation pushes warm air down in winter and pulls air up through the blades in summer.
The MPDC1343W is rated for indoor and covered outdoor use only, so do not install it where it is open to rain, wind, dust or salt air. It is not suitable for corrugated, apex or metal grid ceilings, and a slope beyond 10 degrees needs an angle canopy kit. Keep blade clearance at 2.1m minimum above the floor and 300mm from walls.
