        Matchmaster 07MM-ES06 | 6 Way All Ports Splitter | F-Type
        $11.88 $10.80 ex. GST

        Learn more by watching our Matchmaster 07MM-ES06 | 6 Way All Ports Splitter | F-Type video.

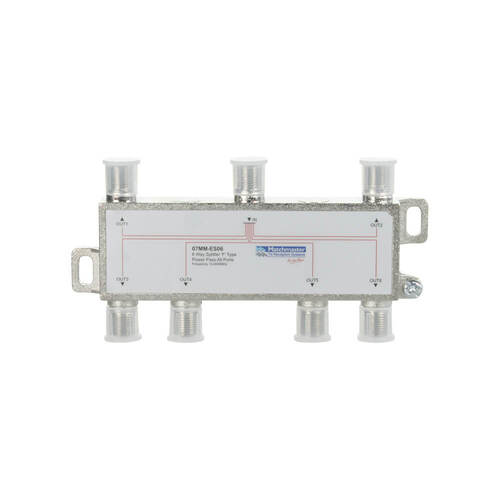

        Matchmaster 07MM-ES06 | 6 Way All Ports Splitter | F-Type


        The Matchmaster 07MM-ES06 offers a practical and cost-effective solution for electricians engaged in domestic and MATV installations. This 6-way splitter is versatile, and suitable for both satellite and Free-to-Air (FTA) applications, making it a valuable tool in a wide range of settings.

        Featuring an F-type all-port DC power pass, the splitter is capable of handling frequencies from 5-2400MHz, thereby accommodating the needs of both CATV and satellite frequency ranges. This broad frequency range ensures compatibility with a variety of setups, enhancing its utility in different installation scenarios.

        Designed with efficiency in mind, the ES series splitters, including this 6-way model, are packaged in simple polybags. This approach minimizes waste and maximizes storage space in work vehicles, a thoughtful consideration for professionals on the move.

        With options available in 2, 3, 4, 6, and 8-way configurations, the MATCHMASTER 07MM-ES06 provides flexibility and adaptability, ensuring that electricians have the right tool for any installation requirement.


        • 6-Way Splitter: Suitable for multiple connection setups.
        • F-Type All Port Power Pass: Versatile for satellite and FTA systems.
        • Wide Frequency Range: 5-2400MHz pass for CATV and satellite.
        • Cost-Effective: Economical choice for varied installations.
        • Compact Packaging: Minimizes waste, easy to store.


        Q: Is this splitter suitable for both satellite and FTA systems?
        A: Yes, it's designed to work with both satellite and FTA setups.

        Q: What is the frequency range of this splitter?
        A: It supports a frequency range of 5-2400MHz, covering both CATV and satellite frequencies.

        Q: Is it easy to store and transport?
        A: Absolutely, its compact packaging is designed to minimize waste and maximize storage space.



        Warranty starts from Invoice Date

        Domestic Use: 1 Year
        Commercial Use: 1 Year
        Warranty Method: Return to Sparky Direct



        Frequency Range 5-40MHz 40-1000MHz 1000-1750MHz 1750-2400MHz
        Insertion Loss ≤10.0dB ≤12.5dB ≤13.8dB ≤17dB
        Mutual Isolation ≥18dB ≥20dB ≥20dB ≥20dB
        Return Loss ≥10dB ≥10dB ≥10dB ≥10dB

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Matchmaster
        SKU 07MM-ES06
        Barcode # 9322190029052
        Shipping Weight 0.1200kg
        Shipping Width 0.155m
        Shipping Height 0.025m
        Shipping Length 0.090m
        Shipping Cubic 0.000348750m3
        TYPE VALUE
        Type TV Data Phone
        Brand Matchmaster
        Suitable For Satellite and FTA
        Splitter 6 Way 'F' Type
