Mercator | Ford Wi-Fi Batten Light 40W 4000lm Adjustable CCT | IP20 White

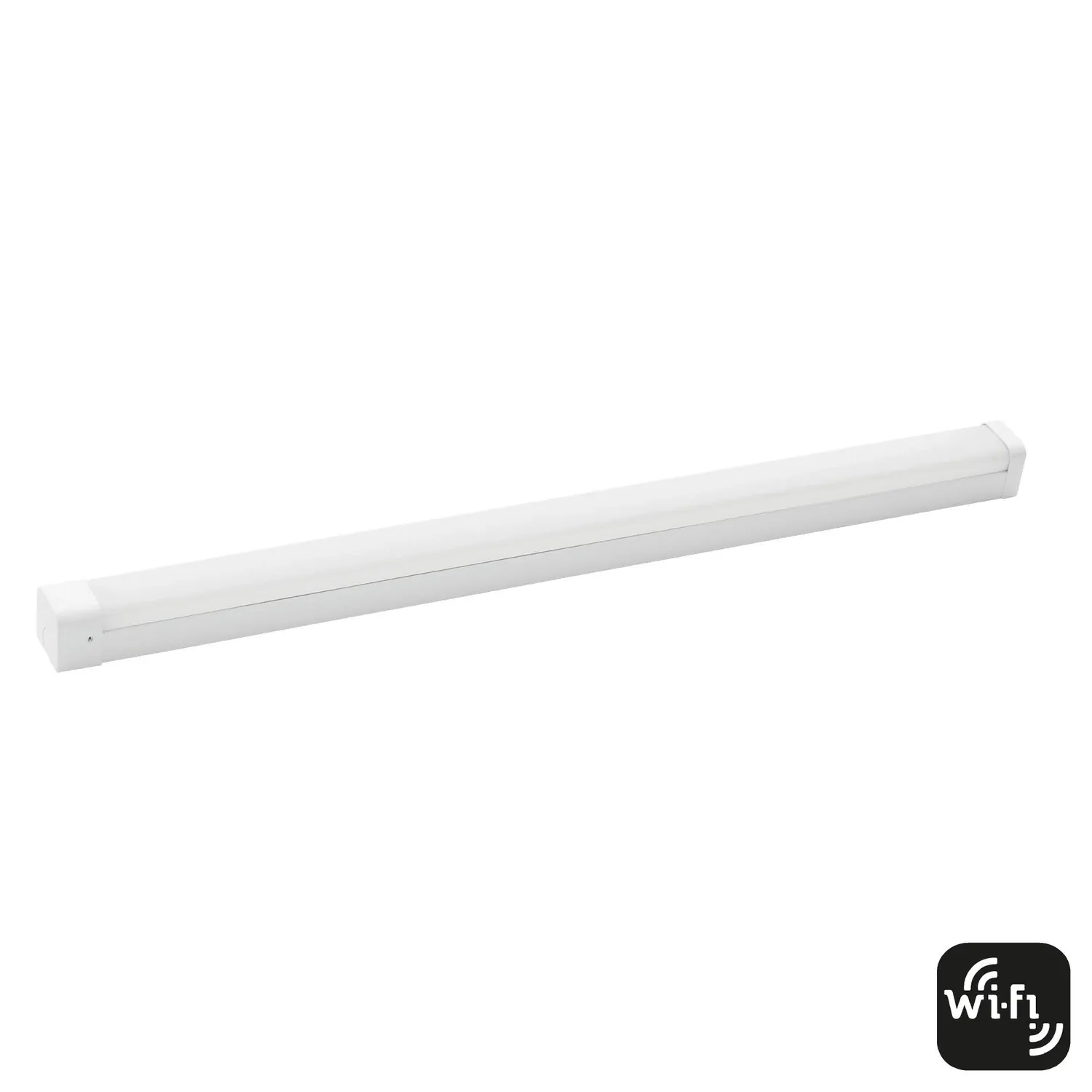

The Mercator SMI7040-WIFI is a 40W Wi-Fi LED batten light from the Ford range, rated 4000 lumens with colour temperature adjustable from 3000K to 5700K through the Ikuü app. The SMI7040-WIFI measures 1235mm, throws a 130 degree beam at CRI above 80, and joins an existing 2.4GHz Wi-Fi network with no hub required. It runs on 220 to 240V a.c. and complies with AS/NZS 60598.1, AS/NZS 60598.2.1, and AS/NZS 4268.
A batten luminaire is conventionally a specification made once and regretted subsequently. Colour temperature is fixed at purchase or configured on a switch inside the fitting, so altering it later requires a ladder, a screwdriver, and the luminaire off the ceiling. The SMI7040-WIFI relocates that specification decision to the phone. 3000K to 5700K adjusts through the app after handover, alongside dimming, timers, and schedules. A client who wants warmer illumination in the laundry gets it without a service attendance.
There is no hub to supply, mount, or support. The luminaire joins the customer's existing 2.4GHz network directly, and pairs to Alexa or Google Assistant from there. A single part number then accommodates a warm rumpus room and a cool workshop, reducing the inventory carried on the vehicle. The installation carries one absolute rule worth establishing before quotation: the SMI7040-WIFI is app dimmable only and must not be wired to any other dimmer.
Features
- 40W at 4000 lumens — the SMI7040-WIFI delivers full batten output with CRI above 80 for accurate colour rendering in work areas.
- Adjustable CCT 3000K to 5700K — colour temperature is set and changed through the Ikuü app rather than a switch inside the fitting.
- App dimmable only — dimming runs through the app, and Mercator states the luminaire must not be used in conjunction with any other dimmer.
- Wi-Fi with no hub required — the fitting joins an existing 2.4GHz network directly over IEEE 802.11 b/g/n, with no gateway to supply or support.
- Timers and schedules — the Ikuü app sets customisable timers and schedules on iOS or Android, so the SMI7040-WIFI runs to a program.
- Alexa and Google Assistant — voice control works with both platforms once the fitting is paired in the app.
- 130 degree beam angle — a wide spread suited to garages, workshops, and utility spaces from a single 1235mm fitting.
- Polycarbonate and coated steel housing — a 1235 x 77 x 73mm body in white, weighing 1.8kg.
- IP20 indoor use only — no ingress protection against water, so the fitting is rated for dry interior positions only.
- Under 1W standby — the Wi-Fi radio draws less than a watt when the light is off.
- AS/NZS compliant — meets AS/NZS 60598.1, AS/NZS 60598.2.1, AS/NZS 4268, CISPR 15, and CISPR 32.
- Three-year in-home warranty — Mercator handles the claim in place, with proof of purchase and the certificate of compliance from the installation required.
Where to use
- Garages and home workshops — the SMI7040-WIFI puts 4000 lumens at CRI above 80 over a bench, with cool white selected in the app for detail work.
- Laundries and utility rooms — warmer output suits a space inside the house that a workshop-white batten would make feel institutional.
- Storerooms and back-of-house — schedules hold the light off outside trading hours without a timer in the board.
- Retail stockrooms and staff areas — voice and app control suits staff whose hands are full, and the SMI7040-WIFI needs no hub on the network.
- Home offices and studies — colour temperature shifts from cool through the working day to warm in the evening from the phone.
- Rumpus and games rooms — dimming and warm CCT turn a work-grade batten into a liveable ceiling light.
- Granny flats and secondary dwellings — one specification covers every room, with the occupant tuning each fitting after handover.
The SMI7040-WIFI is rated IP20, indoor use only, so carports, eaves, undercover outdoor areas, and any damp or splash-exposed position are outside its rating. It is app dimmable only and must not be wired in conjunction with another dimmer, which rules out an existing dimmer circuit without alteration. The fitting needs an existing 2.4GHz Wi-Fi network in range, so 5GHz-only routers and sites with no wireless coverage will not support the smart functions.
