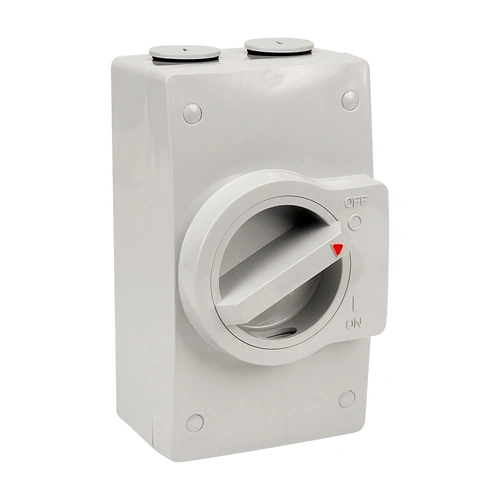

        NHP NL320L | NLINE Weatherproof Isolator 3 Pole 20A 500V IP66 | M120

        The NHP NL320L is a 3 pole, 20A weatherproof isolator rated at 500V AC, designed for rugged outdoor switching where safety and reliability matter most. Part of the NLINE series, it features a UV-resistant IP66 plastic housing and a large isolator handle for easy operation — even with gloves on.

        Engineered for tough environments, the NL320L includes a stainless steel cover and screws, accepts 2.5–16mm² cables, and is wall-mountable only. Fully compliant with AS/NZS3133, it's a dependable solution for industrial, commercial, and external electrical installations.

        NL320L Features

        • 3 Pole, 20A, 500V AC Rated: Suitable for multi-phase switching in high-demand circuits.
        • IP66 Weatherproof Rating: Built for outdoor and harsh environmental conditions.
        • Large Isolator Handle: Easy to grip and operate, even with gloves.
        • UV-Resistant Housing: Long service life in sun-exposed areas.
        • Stainless Steel Cover and Screws: Boosts durability and ingress protection.

        NL320L FAQ

        Q: Is this isolator suitable for outdoor use?
        A: Yes. It’s IP66 rated with UV-stable materials for long-term external use.

        Q: Can I use this for 3-phase switching?
        A: Yes. It’s a 3 pole device rated for 500V AC applications.

        Q: What size cables does it support?
        A: It handles 2.5mm² to 16mm² cables, both solid and stranded.

        (NL320L)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 1 Year
        Commercial Use: 1 Year
        Warranty Method: Return to Sparky Direct

        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand NHP
        SKU NL320L
        Model # NL320L
        Package Weight 0.615kg
        Package Width 0.096m
        Package Height 0.185m
        Package Length 0.103m
        TYPE VALUE
        Type Isolators & Switches Weatherproof
        Brand NHP
        Colour Grey
        Rated Current (A) 20A
        Height (mm) 165mm
        Width (mm) 95mm
        Depth (mm) 91mm
        Protection IP66
        Mounting Surface Mount
        Voltage (V) 500
        Material Poly Carbonate
        Number of Poles 3
