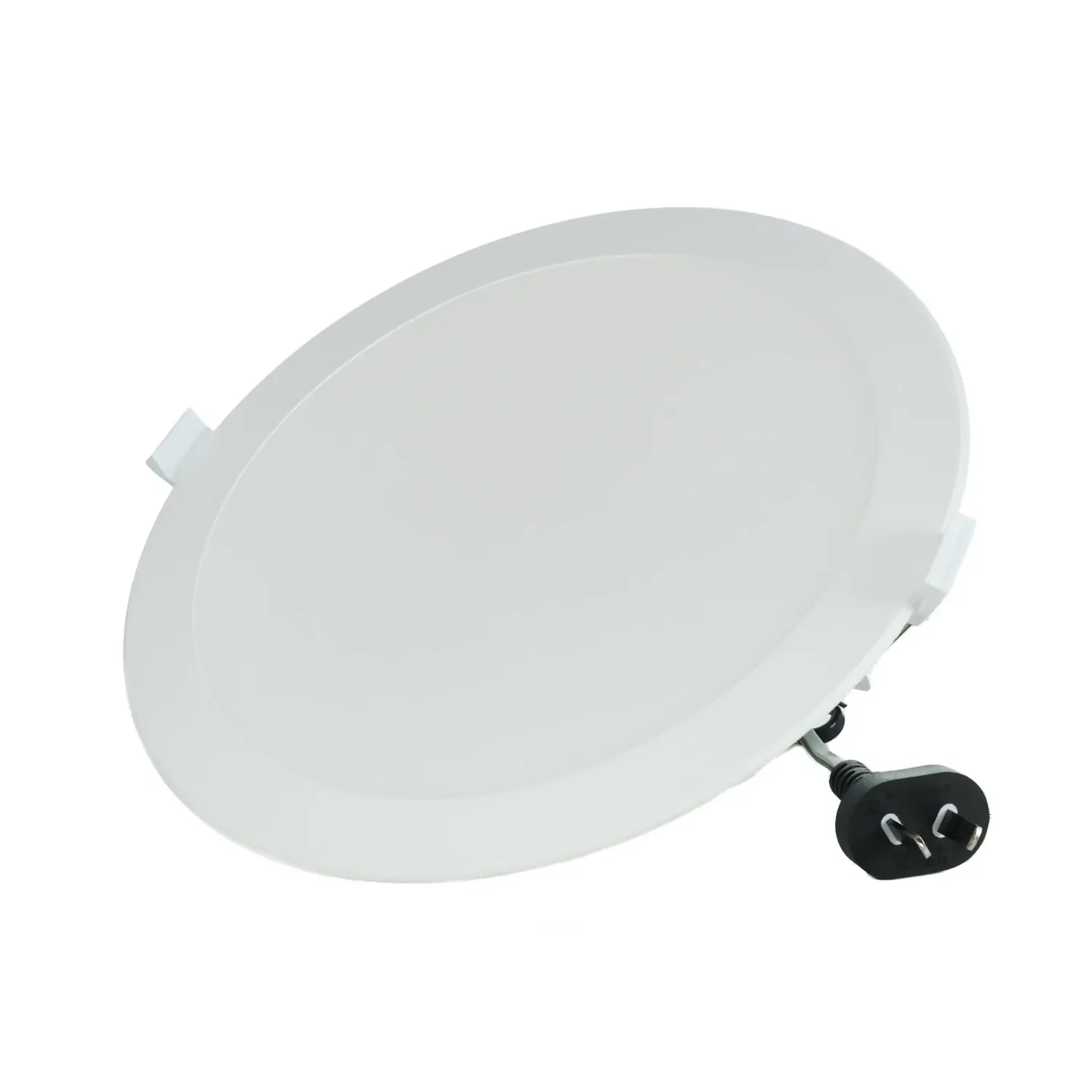

        NLS | 24W 235mm LED Downlight Tri-CCT | Up to 2520lm

        The NLS 20094 is a 24W recessed LED downlight rated 240V AC, with selectable colour output of 3000K, 4000K or 6000K and light output up to 2520 lumens. The 20094 fits a 200mm ceiling cut-out, has a 235mm face and a body depth of 90mm, and throws a 120 degree beam. It carries an IP44 rating on the front face only and runs on a dimmable driver.

        High ceilings and large open rooms defeat a standard 90mm downlight: the light lands in pools, the fitting count climbs, and the ceiling ends up peppered with holes. The 20094 answers that with up to 2520 lumens from a single 24W fitting and a 200mm aperture that pushes light out instead of down a narrow cone. A selectable 3000K, 4000K and 6000K output means the same fitting covers a warm living space and a cool commercial fit-out without a second part number.

        Fewer, larger fittings mean fewer cut-outs, fewer terminations and less time in the ceiling on a big job. The 235mm face covers a rough or oversized 200mm hole, which matters on plasterboard cut by hand rather than by hole saw. Quoting stays simple when one 24W tri-CCT downlight covers warehouse offices, high-ceiling living rooms and retail spaces. The dimmable driver then lets the client pull the level back without a separate fitting type on the order.

        Features

        • Up to 2520 lumen output — enough light from one fitting to cover the area that would otherwise take two or three smaller downlights.
        • 24W power draw — 240V AC operation at 24 watts, keeping circuit loading manageable across a large ceiling grid.
        • Tri-CCT colour selection — 3000K warm white, 4000K neutral white and 6000K daylight are chosen at the fitting, so the NLS 20094 suits domestic and commercial ceilings from one box.
        • 200mm cut-out — a large aperture that spreads light broadly and suits rooms where standard downlights leave dark gaps.
        • 235mm face diameter — the trim covers the 200mm hole with margin either side, hiding rough edges on hand-cut plasterboard.
        • 90mm body depth — the 20094 needs clear void above the ceiling lining to seat fully.
        • Dimmable driver — the fitting runs on a dimmer rated for LED loads, giving level control in living areas and meeting rooms.
        • 120 degree beam angle — wide spread keeps light even between fittings and reduces scalloping on long ceiling runs.
        • IP44 front face — the visible face is rated against splash and moisture from below, suiting protected wet-area ceilings.
        • Recessed mounting — sits flush in the ceiling with no surface hardware or visible fixings.
        • Front-only IP rating — the body and driver above the ceiling carry no ingress rating, so the roof space must stay dry and enclosed.
        • Colour set at the fitting — the selection is made at the downlight, not from a wall switch, so changing it later means dropping the fitting out of the ceiling.

        Where to use

        • High-ceiling living areas — the NLS 20094 delivers up to 2520 lumens, which carries down through raked and double-height ceilings where a small downlight fades.
        • Open-plan kitchens and dining — a 200mm aperture at 120 degrees covers bench and table zones with fewer fittings across the ceiling.
        • Commercial offices and meeting rooms — 4000K or 6000K settings suit workspaces where task light levels matter.
        • Retail and showroom ceilings — the 20094 lights display floors evenly without crowding the ceiling grid with small fittings.
        • Warehouse offices and amenities blocks — a single high-output fitting covers rooms that would otherwise need multiple points.
        • Protected bathroom and laundry ceilings — the IP44 front face suits ceilings exposed to steam and splash from below.
        • Dimmed lounge and function spaces — the fitting pairs with a dimmer rated for LED loads where evening levels are wanted.
        • New commercial fit-outs — one specified downlight across the plan simplifies ordering and fit-off scheduling on staged jobs.

        The NLS 20094 is not rated for exposed outdoor locations or any position where water can reach the body or driver from above. The IP44 rating applies to the front face only, so the fitting is not suitable for open eaves, unlined verandah ceilings, or damp roof spaces. The 90mm body depth and 200mm cut-out also rule out shallow voids and ceilings with framing or services too close to allow the hole.

        (20094NLS)

        The NLS 20094 fits a 200mm cut-out. The face measures 235mm across, so the trim covers the hole with margin either side. Body depth is 90mm, so the ceiling void needs to be clear of framing and services above the opening.

        Where a ceiling socket is already in place, the 20094 can be swapped over without a licensed electrician. Installing a new socket, running new cable, or altering the existing ceiling wiring is licensed electrical work and must be carried out by a licensed electrician.

        The colour is selected at the fitting, with 3000K warm white, 4000K neutral white and 6000K daylight available. Set it before the downlight goes up. Changing the setting afterwards means dropping the fitting back out of the ceiling, as there is no wall switch control.

        The 20094 puts out up to 2520 lumens at 120 degrees, roughly double a typical 13W downlight. That allows wider spacing on the ceiling grid and fewer fittings for the same light level, particularly on high or raked ceilings.

        The fitting runs on a dimmable driver. It needs a dimmer rated for LED loads, such as a trailing edge type, matched to the total connected wattage on the circuit. A dimmer intended for incandescent or halogen loads may flicker or limit the dimming range.

        The visible front face is rated against splash and moisture from below, which suits a protected bathroom or laundry ceiling. The body and driver above the ceiling carry no ingress rating, so the roof space must stay dry and the fitting is not for exposed outdoor positions.

        The NLS 20094 is available online from Sparky Direct, with Australia-wide delivery to any state or territory including regional areas. Sparky Direct is an Australian electrical wholesaler established in 2005, supplying more than 500,000 customers with transparent trade pricing.

        100-Day Fuss-Free Returns
        We want you to love what you buy—but if you change your mind, that’s okay too. That’s why Sparky Direct offers a 100-day money-back guarantee.

        • Items must be unused, with all parts, accessories, and original packaging.
        • We can’t accept returns if the product is damaged, incomplete, or not in resalable condition.
        • Proof of purchase is required.
        • Return shipping is the responsibility of the customer.

        If your item isn’t in its original condition, please contact us before returning it—we might save you time and money.

        All products come with a manufacturer’s or supplier’s warranty

        • Warranty starts from the Invoice Date
        • Some suppliers offer in-home warranties and handle claims directly, so you won’t need to uninstall or return the product. Chat with us to check if your product qualifies.
        • Sparky Direct isn’t responsible for losses caused by product failure.
        • Warranties are void if products aren’t installed by a licensed electrician.

        Damaged or Faulty Goods
        If your order arrives damaged or is faulty, let us know within 24 hours.

        • Sparky Direct will pay for return shipping via an emailed return label.
        • If the fault is confirmed, we will send you a replacement item or provide a refund.

        Contact us via our chat to arrange the return.

        Exclusions
        We can’t accept returns for:

        • Items that have been installed, modified, or used
        • Clearance, End of life, Discontinued, or special order items (unless faulty)
        • All PPE Items
        • Goods returned without original packaging or proof of purchase

        How to Request a Return

        1. Contact our customer service team with your order number.
        2. Confirm it’s eligible under our return or warranty policy.
        3. Pack the item securely and return it using a trackable service.
        4. Once we receive and inspect it, we’ll process your refund or replacement.

        Warranty starts from Invoice Date

        Domestic Use: 2 Year
        Commercial Use: 2 Year
        Warranty Method: Return to Sparky Direct

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand NATIONAL LIGHT SOURCES
        SKU 20094NLS
        Model # 20094NLS
        Barcode # 9336700018290
        Package Weight 0.587kg
        TYPE VALUE
        Brand National Light Sources
        Colour White
        Mounting Recessed
        Lumens (lm) 2520
        Lighting Technology LED
        Light Colour (K) 3000/4000/6000
        Voltage (V) 240
        Wattage (W) 24
        Dimmable Yes
        Diameter (mm) 235
        IP Rating IP44 (front face only)
        Cutout Size (mm) 200
