        NLS | Hanging Mount Bracket for Slim LED Exit Sign | 520mm Drop

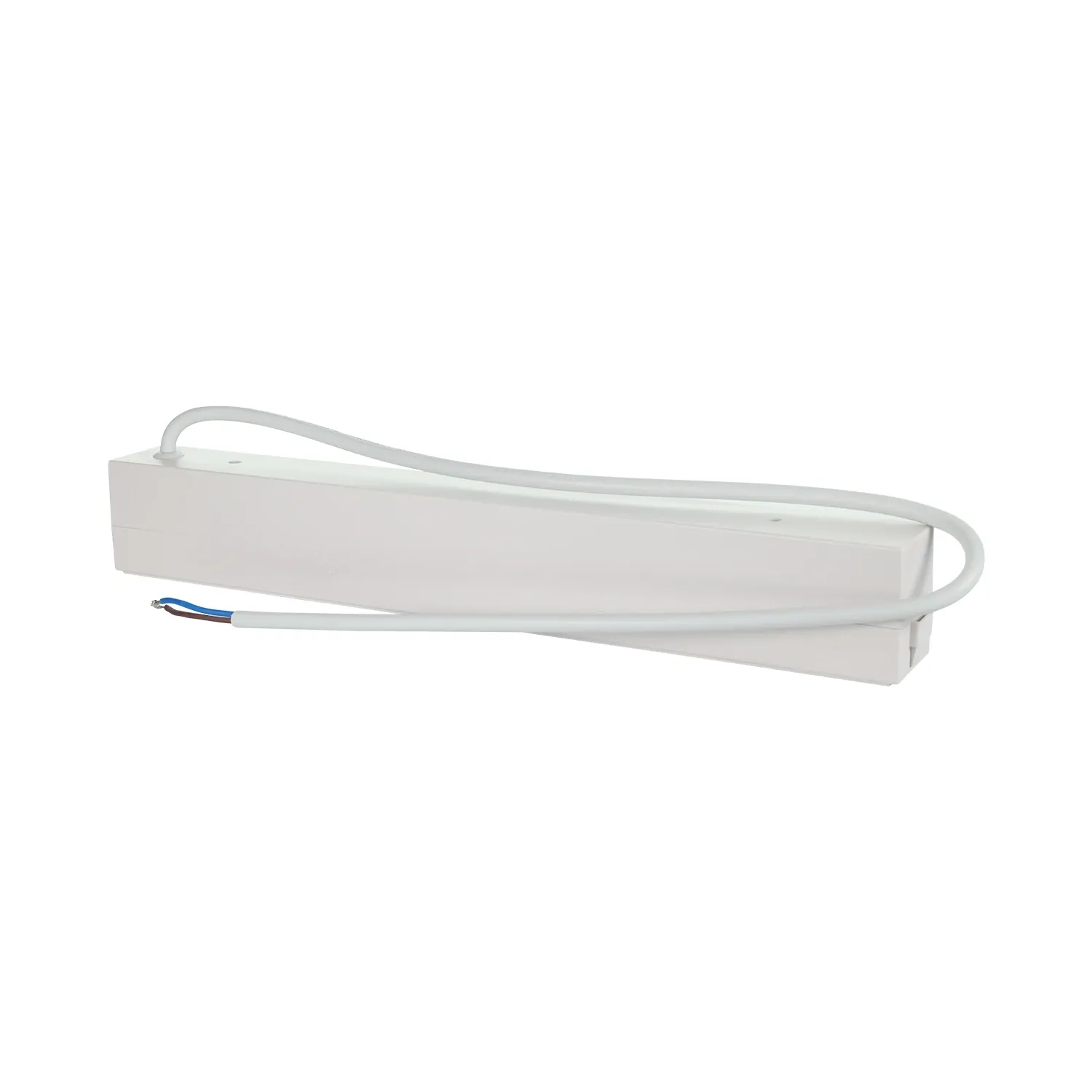

        The NLS 20291 is a hanging mount bracket for the NLS 20273NLS Slim LED Exit Sign. It suspends the sign below the ceiling rather than fixing it flat to a surface. The 20291 has a 520mm suspension drop and comes with a 610mm lead already fitted.

        An exit sign fixed flat to a high ceiling sits above the sightline of people moving through the space. Hanging the sign below the slab brings the legend down to where it reads from floor level. The 20291 is a suspension bracket rather than a flat fixing, made for open ceiling voids.

        Features

        • Suits the 20273NLS — the 20291 is made for the NLS 20273NLS Slim LED Exit Sign rather than for exit signage generally.
        • 520mm suspension drop — the bracket hangs the sign 520mm below the ceiling line, which brings the legend into the sightline in taller spaces.
        • 610mm lead pre-fitted — the 20291 arrives with a 610mm lead already attached, so the connection is made at the ceiling outlet rather than at the sign.
        • 320mm bracket width — the bracket measures 320mm across, matching the width of the Slim LED Exit Sign it carries.
        • Bracket only — the 20291 is the mounting hardware, so the exit sign itself is ordered separately.

        Where to use

        • High and open ceilings — the 520mm drop suits warehouses, atriums and open-plan floors where a flush sign would sit too high to read.
        • Offset ceiling outlets — the 20291 lead reaches from the sign back to a ceiling outlet that does not sit directly above it.
        • Commercial and public buildings — the 20291 suits offices, retail, schools and transport buildings where exit signage hangs from the ceiling.

        The 20291 is made for the NLS 20273NLS Slim LED Exit Sign and is not a universal bracket. The exit sign itself is not supplied with it. Exit and emergency lighting placement is governed by AS 2293, so confirm mounting height and position with the licensed electrician doing the work.

        (20291)

        The 20291 is a hanging mount bracket made for the NLS 20273NLS Slim LED Exit Sign. It is model-specific rather than a universal suspension kit, so it is not intended for other exit signs.

        The suspension drop is 520mm. The bracket itself measures 320mm wide, 45mm high and 35mm long, and it arrives with a 610mm lead already fitted for the connection back to the ceiling outlet.

        No. The bracket is the mounting hardware only. The Slim LED Exit Sign is ordered separately, as are the fixings suited to the ceiling substrate the bracket is being hung from.

        The NLS 20291 is available online from Sparky Direct, with Australia-wide delivery to any state or territory including regional areas. Sparky Direct is an Australian electrical wholesaler established in 2005, supplying more than 500,000 customers with transparent trade pricing.

        100-Day Fuss-Free Returns
        We want you to love what you buy—but if you change your mind, that’s okay too. That’s why Sparky Direct offers a 100-day money-back guarantee.

        • Items must be unused, with all parts, accessories, and original packaging.
        • We can’t accept returns if the product is damaged, incomplete, or not in resalable condition.
        • Proof of purchase is required.
        • Return shipping is the responsibility of the customer.

        If your item isn’t in its original condition, please contact us before returning it—we might save you time and money.

        All products come with a manufacturer’s or supplier’s warranty

        • Warranty starts from the Invoice Date
        • Some suppliers offer in-home warranties and handle claims directly, so you won’t need to uninstall or return the product. Chat with us to check if your product qualifies.
        • Sparky Direct isn’t responsible for losses caused by product failure.
        • Warranties are void if products aren’t installed by a licensed electrician.

        Damaged or Faulty Goods
        If your order arrives damaged or is faulty, let us know within 24 hours.

        • Sparky Direct will pay for return shipping via an emailed return label.
        • If the fault is confirmed, we will send you a replacement item or provide a refund.

        Contact us via our chat to arrange the return.

        Exclusions
        We can’t accept returns for:

        • Items that have been installed, modified, or used
        • Clearance, End of life, Discontinued, or special order items (unless faulty)
        • All PPE Items
        • Goods returned without original packaging or proof of purchase

        How to Request a Return

        1. Contact our customer service team with your order number.
        2. Confirm it’s eligible under our return or warranty policy.
        3. Pack the item securely and return it using a trackable service.
        4. Once we receive and inspect it, we’ll process your refund or replacement.

        Warranty starts from Invoice Date

        Domestic Use: 1 Year
        Commercial Use: 1 Year
        Warranty Method: Return to Sparky Direct

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand NATIONAL LIGHT SOURCES
        SKU 20291
        Model # 20273NLS
        Package Weight 0.244kg
        TYPE VALUE
        Type Lighting
        Brand National Light Sources
        Mounting Surface mount
