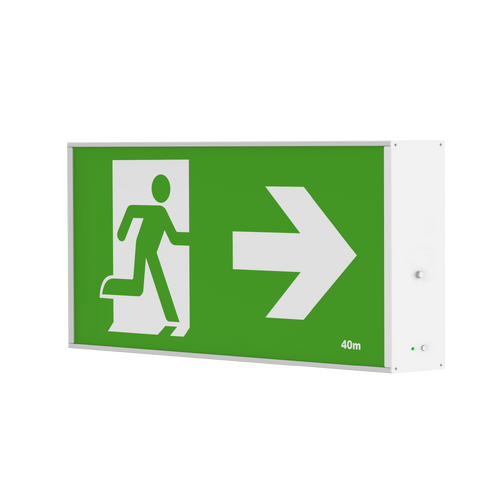

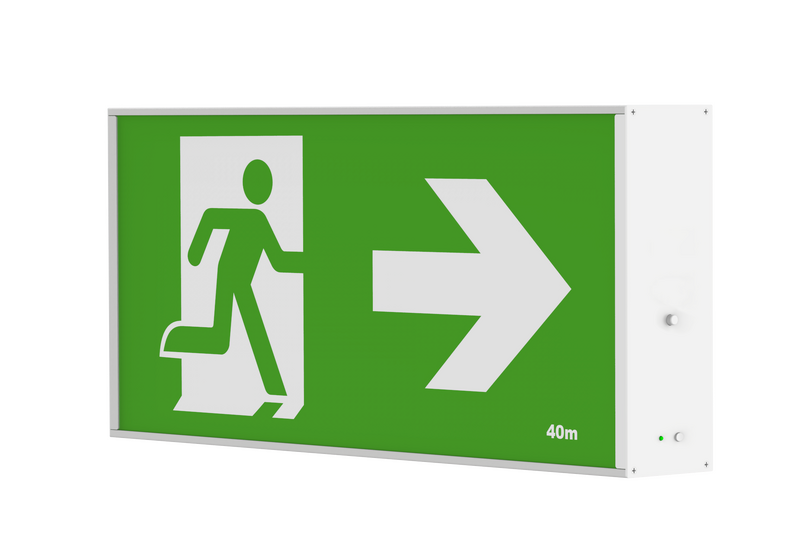

XLED XEX40SML-S | Jumbo 5W Ceiling or Wall LED Exit Sign
Description:
The XLED XEX40SML-S Jumbo is an exceptional LED Exit Sign designed for large spaces, ensuring safety with its 40m viewing distance. Suitable for warehouses and distribution centres, this sign combines clarity, energy efficiency, and a robust design. Featuring a polycarbonate body and acrylic diffuser, it operates in temperatures from -25°C to 50°C and accommodates surface or wall mounting. The intelligent charging system and a LiFePo4 battery support 24-hour charging for 2 hours of operation, while the 50,000-hour lifespan and 12 Epistar LEDs ensure long-term reliability and visibility.
Features:
FAQ:
Q: Is it suitable for outdoor use?
A: Designed primarily for indoor use with an IP20 rating.
Q: What’s the auto-test feature for?
A: Facilitates easy routine checks to ensure operational efficiency.
Q: How long does it operate after charging?
A: Provides 2 hours of operation, with continuous charging for constant readiness.
Maximize safety and efficiency with the XLED XEX40SML-S LED Exit Sign, the ideal solution for clear and reliable emergency signage in expansive indoor areas.
(XEX40SML-S)
Warranty starts from Invoice Date
Domestic Use: 1 Year
Commercial Use: 1 Year
Warranty Method: Return to Sparky Direct
| Specification | Details |
|---|---|
| Model | XEX40SML-S |
| Operating Mode | Maintained or Non-Maintained |
| Voltage (V) | 220-240V |
| Operating Temperature | -25°C ~ 50°C |
| Fitting Colour | White |
| IP Rating | IP20 |
| Wiring | Hard Wired |
| Mounting Type | Surface or wall mount |
| Testing System | Auto test and Manual test button |
| Construction | Polycarbonate body, Acrylic pictogram diffuser |
| Classification | C0:D10 C90:D8 |
| Life Span (hrs) | 50,000 hrs |
| Dimensions (mm) | L 522mm x W 80mm x H 267mm |
| Battery | LiFePo4 3.2V 3000mAh |
| Power Consumption | 5W |
| Charging Method | Intelligent current limited constant voltage charger |
| Charging Time (hr) | 24hrs |
| Charging Operation | Continuous |
| Duration (hr) | 2hrs |
| LED Type | Epistar SMD2835 |
| LED Quantity | 12 |
| CCT | 6500K |
| CRI | ≥80 |
| Viewing Distance | 40 metres |
These specifications and characteristics outline physical, mechanical, electrical details.
| Brand | ILD |
| SKU | XEX40SML-S |
| Barcode # | 0796548148938 |
| Shipping Weight | 4.2000kg |
| Shipping Width | 0.160m |
| Shipping Height | 0.360m |
| Shipping Length | 0.610m |
| Shipping Cubic | 0.035136000m3 |
| TYPE | VALUE |
|---|---|
| Type | Lighting |
| Brand | XLED |
| Colour | White |
| Lighting Technology | LED |
