What is the NLS 30216 mainly used for?

The NLS 30216 is used to create a fixed 90 degree direction change in 32mm conduit runs.

What conduit size does this elbow suit?

It is designed for the common 32mm grey medium-duty conduit.

Why use a solid elbow instead of bending conduit?

It helps create neat direction changes without needing to bend conduit on site.

Does the grey finish match standard conduit systems?

Yes. The grey colour is designed to suit common conduit installations.

Does it help create cleaner cable pathways?

Yes. It helps guide conduit neatly around corners and direction changes.

Can I buy the NLS 30216 from Sparky Direct?

Yes. Sparky Direct stocks the NLS 30216 with fast dispatch across Australia.

NLS 30216 | 32mm Solid Elbow Conduit Fitting

Name: NLS 30216 | 32mm Solid Elbow Conduit Fitting | Grey
Brand: NATIONAL LIGHT SOURCES
SKU: 30216
Price: 1.93 AUD
Availability: InStock

NLS | 32mm Solid Elbow Conduit Fitting | Grey

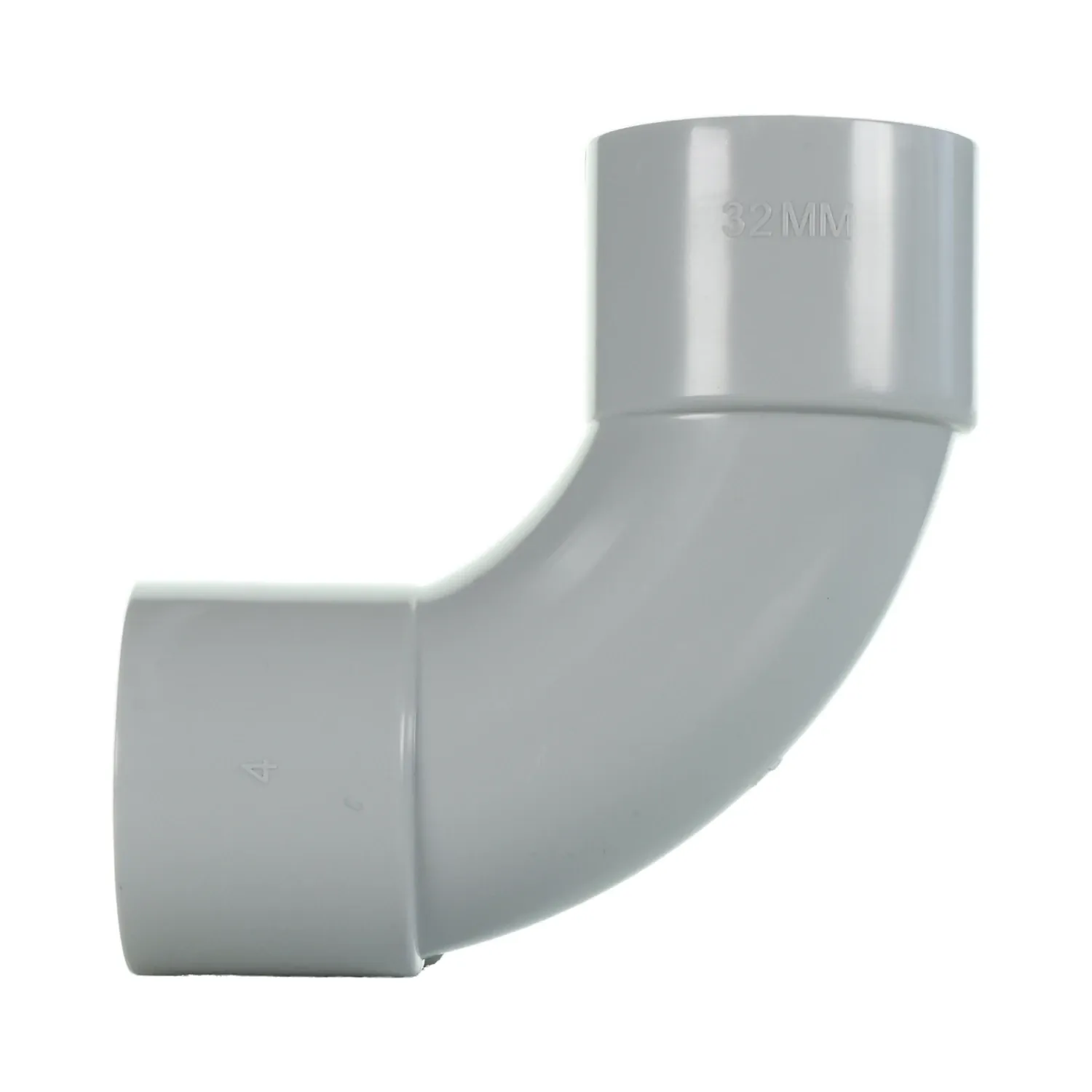

The NLS 30216 is a 32mm solid elbow, a moulded conduit fitting that carries a conduit run through a fixed change of direction. The 30216 is finished in grey and suits compatible 32mm conduit in electrical and HVAC installations. A solid elbow has no removable inspection cover, so the bend stays closed once the joints are made.

Forming 32mm conduit on site is slow. Uneven heating creases the inside of the curve, which restricts the bore and abrades cable insulation during the pull. The 30216 delivers a fixed change of direction in a factory-moulded fitting, so every corner repeats the same geometry. Sub-mains and larger circuits commonly occupy 32mm conduit, and those direction changes stay visible on exposed installations. A grey finish matching standard conduit keeps the run consistent across walls and ceilings.

The 30216 lands in a run with no heat gun and no bending spring. On 32mm work the conduit is rigid, so a creased corner is unrecoverable and writes off a full length. The fitting is solvent-cemented like a coupling, so the direction change becomes another routine socket joint. Stocking one elbow per trade size simplifies van inventory, and the sealed body removes a cover that could loosen or go missing after commissioning.

Features

32mm trade size — the 30216 suits compatible 32mm conduit, matching the nominal outside diameter used across Australian rigid conduit ranges.

Solid elbow body — no removable inspection cover, so the bend stays sealed once the conduit is jointed at each end.

Fixed direction change — the angle is moulded in, which removes the need to bend conduit on site with heat.

Grey finish — matches standard grey conduit systems, so exposed runs read as one consistent installation.

Two socket ends — each end takes a length of 32mm conduit for a straightforward in-line joint at the corner.

Glued joint method — the sockets take PVC solvent cement, the same jointing method used across the rest of the run.

Cable protection at the corner — the moulded curve carries cable through the direction change without the sharp internal edge a creased bend leaves.

Electrical and HVAC use — the 30216 suits conduit runs on power circuits and on control wiring for air conditioning work.

Compact radius — turns the run inside a short space where a longer radius fitting will not fit.

No cover access — cables are drawn through in one pass, so the 30216 is not a draw point on a long pull.

Single size only — the fitting accepts 32mm conduit and does not take 20mm, 25mm, or 40mm without a reducer in the run.

Where to use

Wall conduit runs — the 30216 turns a 32mm run at a corner or a vertical-to-horizontal transition without site bending.

Ceiling conduit runs — carries the run around structure and services where the corner sits above the ceiling line.

Exposed surface conduit — the grey finish and low profile keep visible runs tidy through plant areas and garages.

HVAC control wiring routes — protects control and interconnect cable at direction changes between the indoor and outdoor units.

Sub-mains and larger circuits — 32mm conduit typically carries heavier cable, and the 30216 handles the corners on those runs.

Renovation and extension work — the 30216 lets an existing 32mm run be extended around new framing without reworking the whole pipe.

Short runs with one or two corners — where cables can be drawn through in a single pass, a sealed elbow is enough.

The 30216 has no inspection cover, so it is not suitable at points where cable needs to be drawn in stages or reached later. It is sized for 32mm conduit and is not interchangeable with other trade sizes. Where a run carries stiff or heavy cable and pulling tension is a concern, a tight elbow radius is the wrong choice for that corner.

TYPE	VALUE
Type	Conduit & Fittings
Brand	National Light Sources
Diameter (mm)	32

TYPE

VALUE

Type

Conduit & Fittings

Brand

National Light Sources

Diameter (mm)

NLS 30216 | 32mm Solid Elbow Conduit Fitting | Grey

Description

NLS | 32mm Solid Elbow Conduit Fitting | Grey

Features

Where to use

NATIONAL LIGHT SOURCES 30216 FAQ

What is the NLS 30216 mainly used for?

What conduit size does this elbow suit?

Why use a solid elbow instead of bending conduit?

Does the grey finish match standard conduit systems?

Does it help create cleaner cable pathways?

Can I buy the NLS 30216 from Sparky Direct?

Warranty

Specifications

Terms & Conditions

Reviews

Brand	NATIONAL LIGHT SOURCES
SKU	30216
Model #	30216NLS
Package Weight	0.050kg
