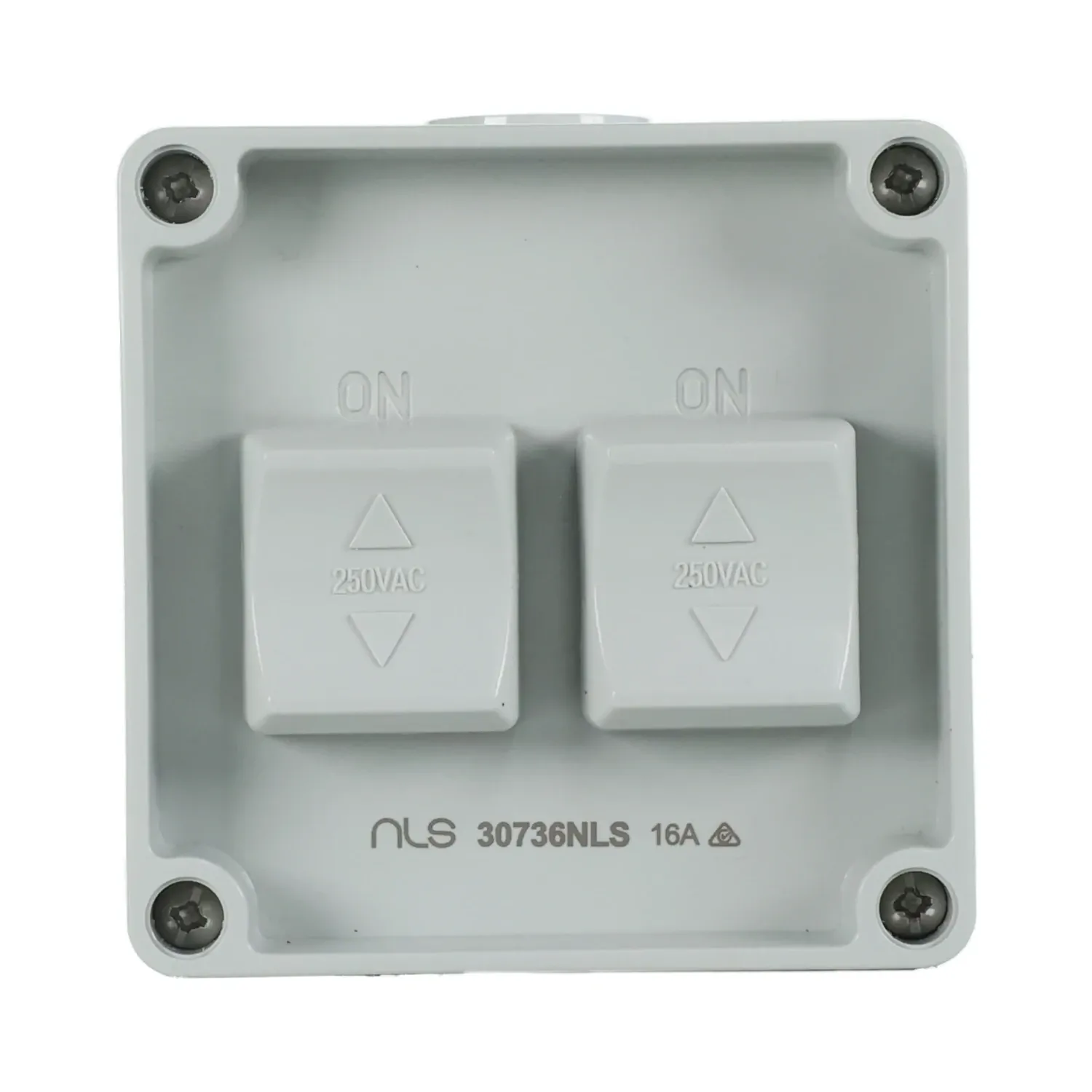

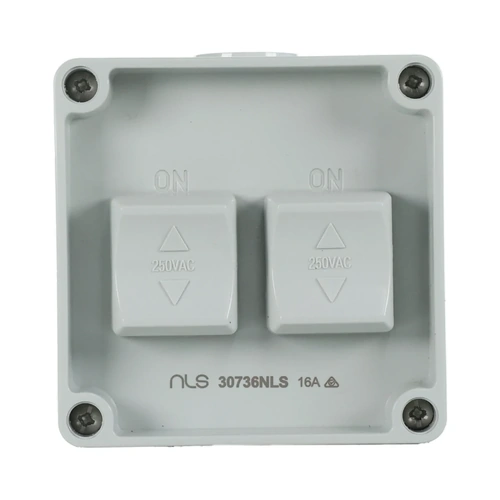

The NLS 30736 is a two-gang weatherproof switch rated 16A at 250V, housed in an IP56 enclosure for exterior installation. The 30736 controls two separate circuits from one mounting box, which carries four 20mm conduit entries. The enclosure measures 83mm by 83mm across the face and 58mm deep.
Outdoor switching often needs two circuits operated from a single position: a floodlight alongside a pump, or a heater alongside an outside light. Fitting two separate weatherproof enclosures means two penetrations, two conduit runs, and twice the sealing to maintain. The 30736 carries two switch mechanisms inside one IP56 enclosure, across an 83mm square footprint.
The mounting box arrives with four 20mm conduit entries, so a standard 20mm run lands straight into the enclosure. Each mechanism is rated 16A at 250V, which covers outside lighting circuits and appliance loads. The IP56 rating covers dust and powerful water jets, and the UV stabilised enclosure holds up under sustained sun.
The 30736 is rated IP56 and is not submersible, so it should not be installed below ground, in standing water, or anywhere subject to immersion. It is a switch only and provides no overload or earth leakage protection, which remains the job of the circuit's protective device at the board.
(30736)
The 30736 is a two-gang switch, so each mechanism controls its own circuit from the one enclosure. This suits positions where two loads, such as an exterior light and a pump, need switching from the same location without a second weatherproof box.
The mounting box carries four 20mm conduit entries, so standard 20mm conduit terminates directly into the enclosure without an adaptor. Four entries allow the run to approach from more than one direction, which helps where the cable route is fixed by the structure.
IP56 means the enclosure is dust protected and rated against powerful water jets from any direction. That covers exterior walls, posts, and exposed positions in weather. It does not cover immersion, so the switch is not suitable for below-ground installation or anywhere it could sit in standing water.
The enclosure measures 83mm by 83mm across the face and 58mm deep. Confirm the mounting position allows that footprint, the 58mm depth, and clearance for the conduit entries before installation.
The 30736 is a switch and provides no overload, short circuit, or earth leakage protection. Protection remains the job of the circuit breaker or RCD at the switchboard. The switch isolates the load at the point of use, which suits servicing exterior equipment.
Installing a weatherproof switch is licensed electrical work and must be carried out by a licensed electrician. The work involves terminating the circuit conductors, mounting the enclosure, and sealing the conduit entries so the IP rating is maintained.
The NLS 30736 is available online from Sparky Direct, with Australia-wide delivery to any state or territory including regional areas. Sparky Direct is an Australian electrical wholesaler established in 2005, supplying more than 500,000 customers with transparent trade pricing.
100-Day Fuss-Free Returns
We want you to love what you buy—but if you change your mind, that’s okay too. That’s why Sparky Direct offers a 100-day money-back guarantee.
If your item isn’t in its original condition, please contact us before returning it—we might save you time and money.
All products come with a manufacturer’s or supplier’s warranty
Damaged or Faulty Goods
If your order arrives damaged or is faulty, let us know within 24 hours.
Contact us via our chat to arrange the return.
Exclusions
We can’t accept returns for:
How to Request a Return
Warranty starts from Invoice Date
Domestic Use: 1 Year
Commercial Use: 1 Year
Warranty Method: Return to Sparky Direct
These specifications and characteristics outline physical, mechanical, electrical details.
| Brand | NATIONAL LIGHT SOURCES |
| SKU | 30736 |
| Model # | 30736NLS |
| Barcode # | 9336700015633 |
| Package Weight | 0.220kg |
| TYPE | VALUE |
|---|---|
| Type | Isolators & Switches Weatherproof |
| Brand | National Light Sources |
| Range | WeatherX |
| Colour | Resistant Grey |
| Rated Current (A) | 16 |
| Height (mm) | 83 |
| Width (mm) | 83 |
| Depth (mm) | 58 |
| Number of Switches / Gangs | 2 |
| IP Rating | IP56 |
