Learn more by watching our NLS 30860 | 32A RCBO Single Pole 6KA A-type video.

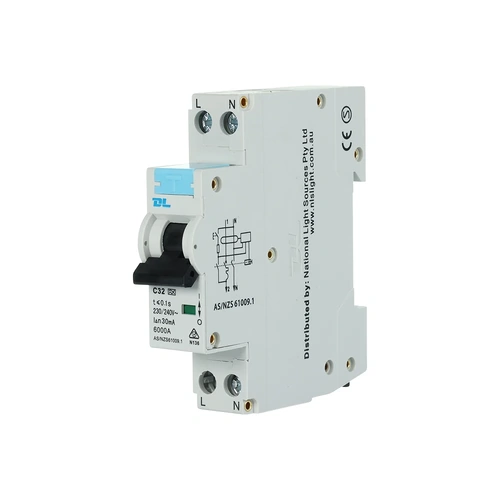

The NLS 30860 RCBO (Residual Current Circuit Breaker with Overcurrent Protection) provides 32A-rated current and 6kA breaking capacity, delivering reliable protection for electrical installations. Designed for efficient operation at 240V and 50/60Hz, it adheres to AS/NZS 61009.1 standards and supports both top and bottom line load configurations. Its single-module, compact design simplifies installation on a 35mm DIN rail, making it suitable for diverse applications.
Built with durability in mind, the RCBO features a mechanical life exceeding 20,000 cycles, a rapid tripping response within 1–5 ms, and an energy-limiting class of 3. Engineered for safety and high performance, it meets the demands of residential, commercial, and industrial setups.
Q: What is the breaking capacity of this RCBO?
A: The NLS 30860 RCBO offers a breaking capacity of 6kA.
Q: Is the RCBO compatible with standard DIN rails?
A: Yes, it is designed for 35mm symmetrical DIN rails.
Q: What safety standards does this RCBO comply with?
A: It meets AS/NZS 61009.1 standards for enhanced safety.
Q: Does this RCBO support both top and bottom line load configurations?
A: Yes, it is compatible with both configurations, allowing flexible installation options.
Q: What is the mechanical life expectancy of this device?
A: The RCBO is rated for over 20,000 mechanical cycles, ensuring long-term reliability.
(30860)
100-Day Fuss-Free Returns
We want you to love what you buy—but if you change your mind, that’s okay too. That’s why Sparky Direct offers a 100-day money-back guarantee.
If your item isn’t in its original condition, please contact us before returning it—we might save you time and money.
All products come with a manufacturer’s or supplier’s warranty
Damaged or Faulty Goods
If your order arrives damaged or is faulty, let us know within 24 hours.
Contact us via our chat to arrange the return.
Exclusions
We can’t accept returns for:
How to Request a Return
Warranty starts from Invoice Date
Domestic Use: 2 Year
Commercial Use: 2 Year
Warranty Method: Return to Sparky Direct
These specifications and characteristics outline physical, mechanical, electrical details.
| Brand | NATIONAL LIGHT SOURCES |
| SKU | 30860 |
| Model # | 30860NLS |
| Barcode # | 9336700017026 |
| Package Weight | 0.164kg |
| Package Width | 0.076m |
| Package Height | 0.030m |
| Package Length | 0.107m |
| TYPE | VALUE |
|---|---|
| Type | Circuit Protection |
| Brand | National Light Sources |
| Rated Current (A) | 32 |
| Height (mm) | 92 |
| Width (mm) | 18 |
| Depth (mm) | 77 |
| Standards | AS/NZ 61009-1 |
| Mounting | Din Rail |
| Curve | C |
| Voltage (V) | 240V |
| Earth Leakage Protection Class | Type A |
| Earth Leakage Sensitivity | 30mA |
| Residual Current | 30mA |
| Breaking Capacity | 6kA |
| Overcurrent trip characteristic | C Curve |
| Earth Fault Wave Form | Type A |
| IP Rating | IP20 |
| Number of Poles | 1P+N |
