National Light Sources | IP66 Lockable Steel Cabinet 500 x 400 x 200mm | RAL7035 Light Grey

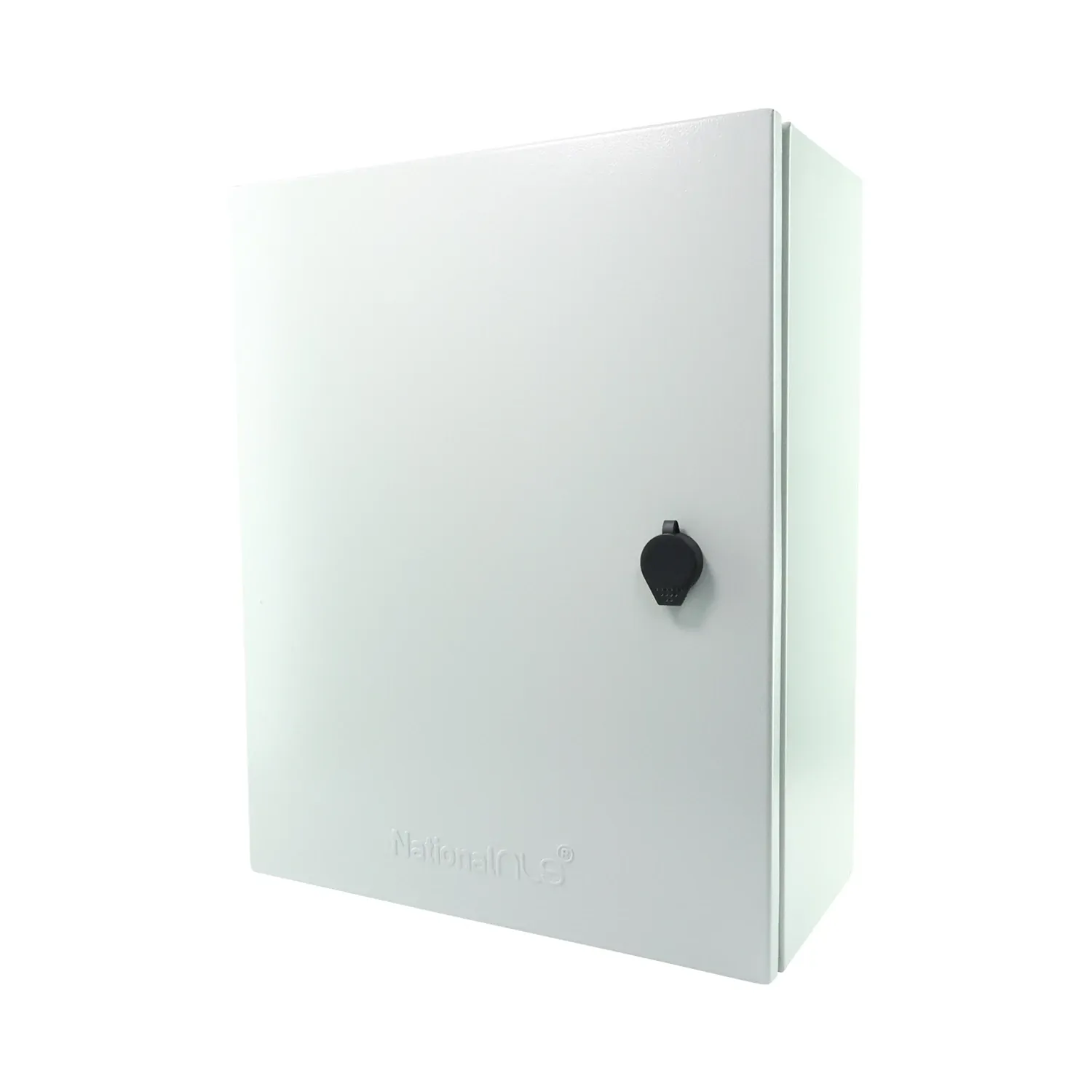

The NLS 30916 is an IP66 lockable steel enclosure measuring 500 x 400 x 200mm, manufactured from 1.2mm cold rolled steel in a RAL7035 light grey finish. The 30916 is rated 240V single phase and 450V three phase at 50/60Hz, and is approved to AS/NZS. It ships with a mounting plate, ground cable, installation brackets, and an MS705 cam lock.
An enclosure installed outdoors or in a wash-down area fails at the door seal long before the steel gives way. A PU foam sealing strip is what delivers the IP66 rating, keeping dust out entirely and withstanding powerful water jets from any direction. The 1.2mm cold rolled steel body resists the impact and tampering that a polycarbonate enclosure does not.
Security matters as much as weatherproofing on infrastructure sited where the public can reach it. The MS705 cam lock restricts access to key holders, and the enclosure is classified vandal resistant and fire retardant by the manufacturer. A 1.2mm mounting plate ships inside, so equipment mounts without a separate backing panel purchase.
Features
- IP66 protection — dust tight, and protected against powerful water jets from any direction.
- PU foam sealing strip — the door seal that delivers the IP66 rating around the full perimeter.
- 500 x 400 x 200mm — 500mm wide, 400mm high, and 200mm deep internally usable volume.
- 1.2mm cold rolled steel body — high strength cold rolled steel, with the mounting plate also at 1.2mm.
- RAL7035 light grey finish — the standard light grey used across industrial switchgear and enclosures.
- MS705 cam lock — a keyed cam lock with lock plug supplied, restricting access to key holders.
- Mounting plate included — a 1.2mm plate ships inside for mounting devices, with a galvanised zinc or painted finish.
- Grounding and bonding provision — a ground cable is supplied with the enclosure for earthing the door and body.
- Rated 240V and 450V — 240V single phase or 450V three phase at 50/60Hz, for low-voltage distribution and circuit protection.
- Approved to AS/NZS — the manufacturer states AS/NZS approval and RoHS compliance.
- Vandal resistant and fire retardant — both classifications are stated by National Light Sources for this enclosure range.
- Enclosure only — the 30916 supplies the cabinet and mounting hardware, with no switchgear, DIN rail, or gland fitted.
Where to use
- Industrial control panels — the 30916 houses control gear on plant and process equipment in demanding positions.
- Outdoor infrastructure — installations exposed to weather where IP66 and a keyed lock are both required.
- Commercial distribution — sub-distribution and switching assemblies in commercial buildings and plant rooms.
- Wash-down and dusty environments — food processing, workshops, and sites where equipment is hosed or dust-laden.
- Communications and remote equipment — outdoor comms cabinets and monitoring gear needing a secure housing.
- Public and exposed locations — sites where the vandal-resistant construction and cam lock deter interference.
The 30916 is an empty enclosure: switchgear, DIN rail, glands, and cable entries are specified and fitted separately. IP66 covers water jets, not immersion, so the enclosure is not rated for submerged or flood-prone positions. Installation must be carried out to manufacturer specification by a licensed electrician, and any penetration cut for glands or accessories affects the sealed rating.
