Learn more by watching our NLS 66CV520RCD | 5 Pin 20A Switched Socket Outlet | IP66 with RCD Protection video.

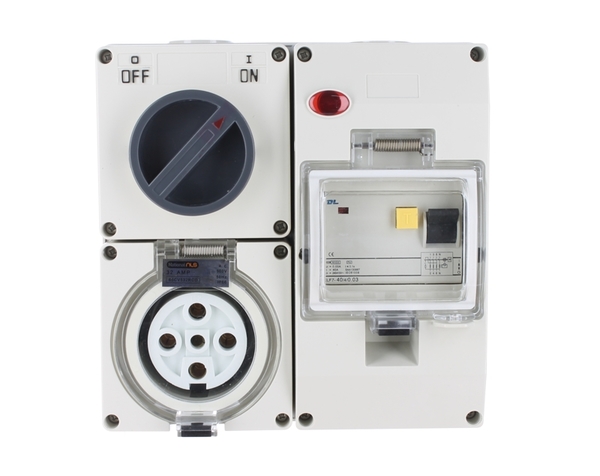

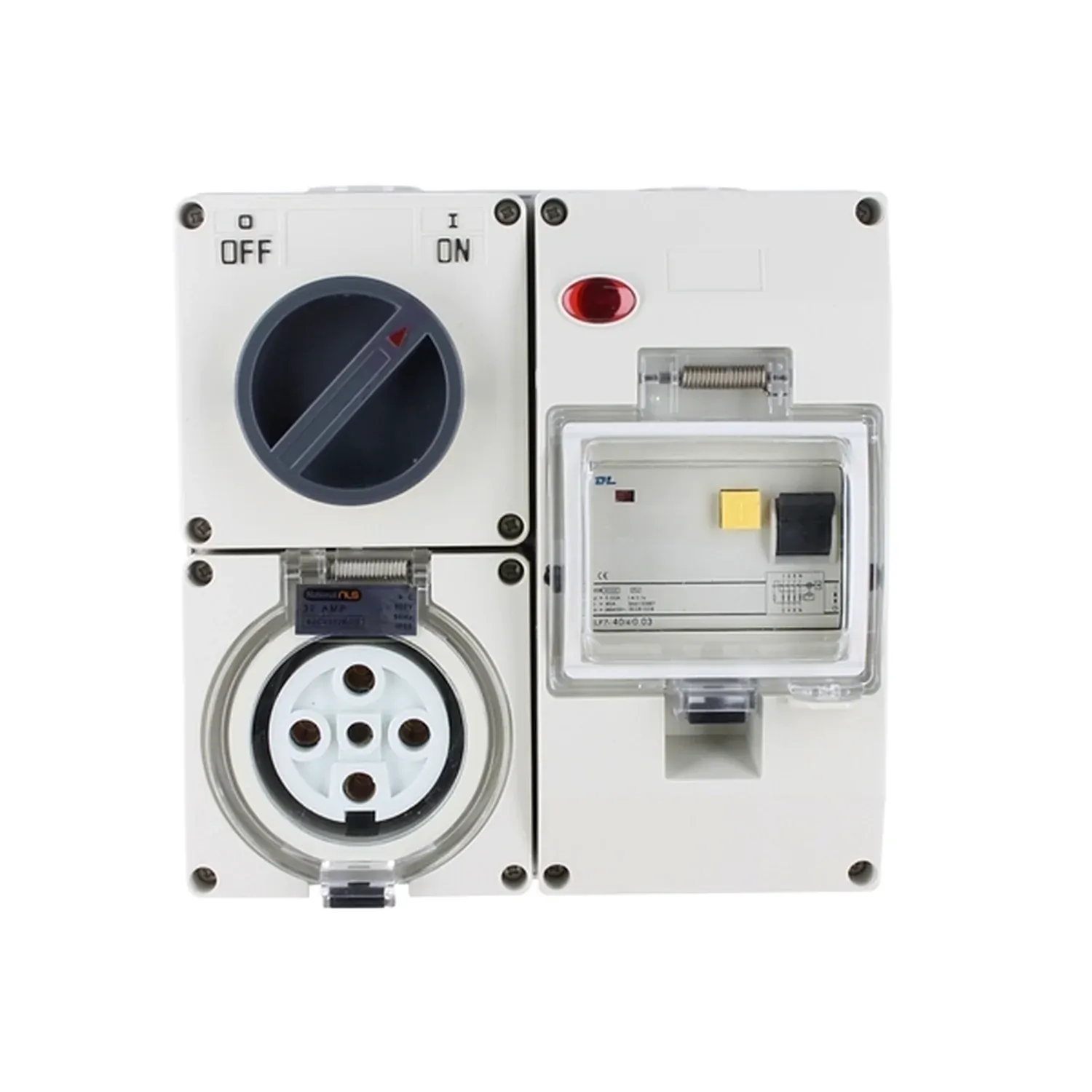

The NLS 66CV520RCD is a three-phase 5 pin 20A switched socket outlet rated 500V AC with a built-in 25A 2-pole RCD, designed for weatherproof industrial and outdoor power distribution. Complies with AS/NZS 3112, AS/NZS 3123, AS/NZS 3133, AS/NZS 3100, and AS/NZS 3947.3 for Australian and international industrial standards.
Industrial and outdoor applications often demand a single power point that combines switching control with earth-leakage protection to meet both safety and compliance requirements. The NLS 66CV520RCD provides integrated RCD protection (eliminating a separate circuit breaker step) and IP66 weatherproof sealing against dust and high-pressure water spray. The large cable terminals with internal wiring reduce installation complexity and the risk of loose connections on busy jobsites.
Contractors and site supervisors choose the 66CV520RCD for three-phase industrial installations because it combines safety certification with simplicity: a single lockable unit handles power distribution and earth-leakage detection without daisy-chaining components. The padlock facility on both the switch and RCD cover restricts unauthorised access and disconnection, critical on multi-trade and public sites. Impact-resistant plastic construction resists cracking and degradation under UV exposure and mechanical damage during handling.
The NLS 66CV520RCD is not suitable for indoor residential applications, electronic equipment with sensitive RCD trip curves, or frequencies outside 50/60Hz. The 25A RCD rating means the outlet is designed for general industrial circuits; circuits with nuisance tripping history require assessment by a licensed electrician.
(66CV520RCD)
It supplies three-phase power with built-in RCD protection in outdoor or industrial locations.
It’s rated at 20A, suitable for many industrial and commercial loads.
A 25A, 2-pole RCD provides earth-leakage protection for added safety.
Yes, a padlock facility allows controlled access to the switch and RCD.
Yes, when installed correctly, it’s suited to outdoor and exposed areas.
Yes, Sparky Direct stocks NLS 66CV520RCD and offers quick delivery depending on warehouse availability and location.
100-Day Fuss-Free Returns
We want you to love what you buy—but if you change your mind, that’s okay too. That’s why Sparky Direct offers a 100-day money-back guarantee.
If your item isn’t in its original condition, please contact us before returning it—we might save you time and money.
All products come with a manufacturer’s or supplier’s warranty
Damaged or Faulty Goods
If your order arrives damaged or is faulty, let us know within 24 hours.
Contact us via our chat to arrange the return.
Exclusions
We can’t accept returns for:
How to Request a Return
Warranty starts from Invoice Date
Domestic Use: 5 Year
Commercial Use: 5 Year
Warranty Method: Return to Sparky Direct
These specifications and characteristics outline physical, mechanical, electrical details.
| Brand | NATIONAL LIGHT SOURCES |
| SKU | 66CV520RCD |
| Model # | 30648NLS |
| Barcode # | 9336700013325 |
| Package Weight | 1.900kg |
| TYPE | VALUE |
|---|---|
| Type | Industrial Outlets |
| Brand | National Light Sources |
| Colour | Grey |
| Rated Current (A) | 20 |
| Height (mm) | 200 |
| Width (mm) | 200 |
| Depth (mm) | 110 |
| Protection | IP66 |
| Voltage (V) | 500 |
| Installation Area | Indoor & Outdoor |
| Pin Number | 5 Round Pins |
| Conduit Entries | 2 x 25mm & 2 x 32mm Threaded |
| Lockable | Yes |
| Earth Leakage Protection | 2 Pole 25 Amp 30ma |
