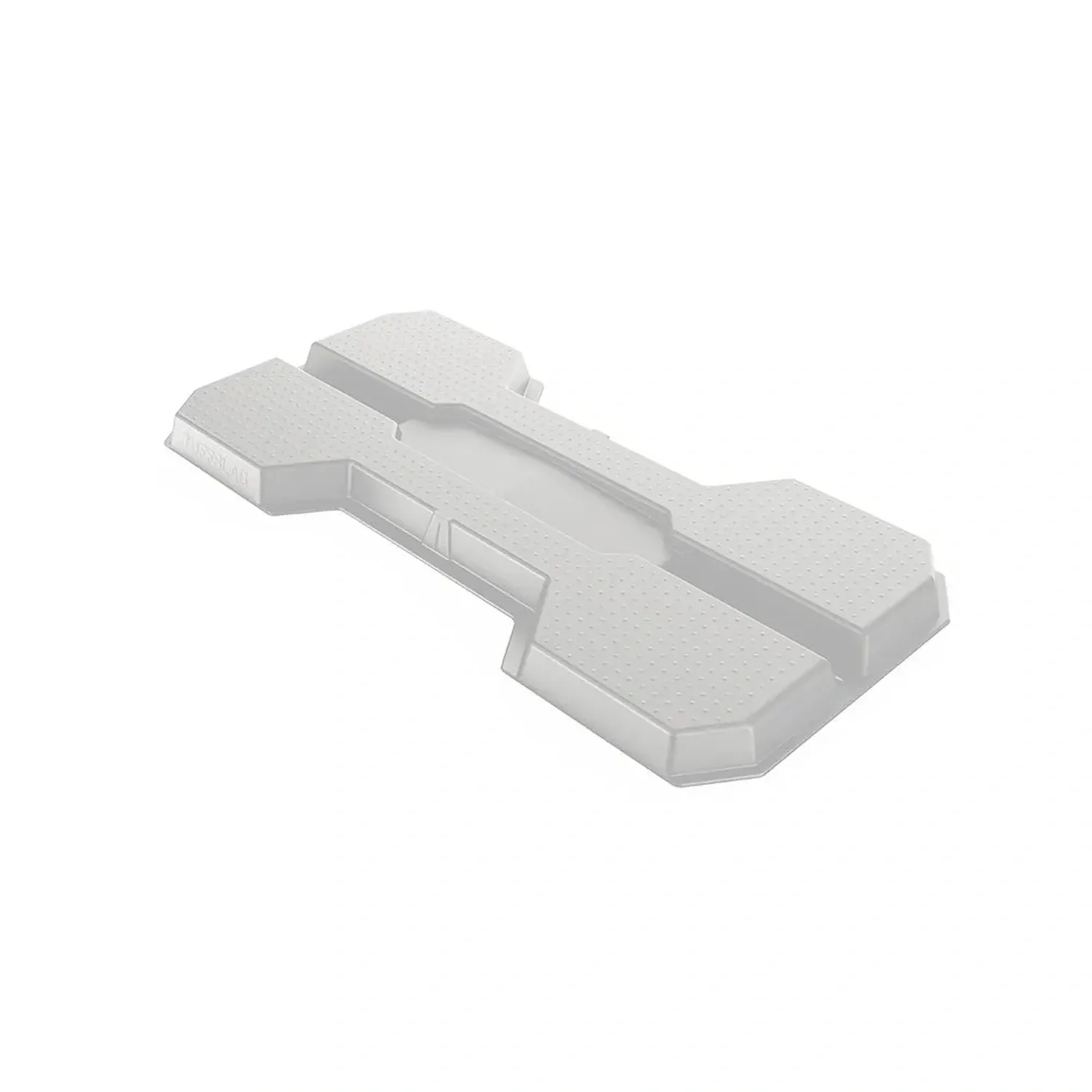

        Pro Pipe TSLAB-MG | TuffSlab Eco+ AC Mounting Base | 160kg Load Rating

        The Pro Pipe TSLAB-MG is a ground mounting base for HVAC equipment, made from 100% recycled industrial waste plastic and rated to a maximum load of 160kg. The slab measures 900mm long, 430mm wide and 50mm high. The TSLAB-MG is the grey slab in the Pro Pipe TuffSlab Eco+ range.

        A condenser set straight onto soil or loose gravel sits unevenly and lets water pool under the footprint. The TSLAB-MG is a ground-level equipment base that carries the unit clear of the dirt. Sloped run-off channels move water away from the equipment instead of holding it under the base. The slab is rated to a maximum load of 160kg, which is the ceiling on the equipment weight it can carry.

        Features

        • 160kg maximum load — the TSLAB-MG is rated to carry up to 160kg, which sets the weight ceiling for the equipment it sits under.
        • Recycled plastic construction — the slab is made from 100% recycled industrial waste plastic, which is what the Eco+ designation covers.
        • Sloped run-off channels — channels formed into the slab carry water off the base instead of letting it sit around the equipment feet.
        • Ventilation points — openings through the slab let air move under the equipment rather than sealing it against the ground.
        • Added fastening points — fixing positions are built into the slab so the equipment can be secured down to the base.
        • 900mm slab length — the TSLAB-MG runs 900mm end to end, which sets the bearing length available under the unit.
        • 50mm overall height — the TSLAB-MG stands 50mm high, a low profile that keeps the finished equipment height down.
        • Grey colour — the TSLAB-MG is the grey part number in the TuffSlab Eco+ base range.

        Where to use

        • Ground-level condenser positions — the TSLAB-MG gives a set base for split system outdoor units standing on soil, gravel or bare ground.
        • Positions needing underside airflow — the ventilation points suit installs where air needs to move beneath the equipment rather than sit still.
        • Secured equipment installs — the fastening points suit jobs where the unit is fixed down to its base rather than left free standing.
        • Low-clearance setbacks — the 50mm height of the TSLAB-MG suits narrow side passages where the finished equipment height matters.
        • Wide-footprint equipment — the 900mm slab length covers units whose mounting feet sit well apart across the base.

        The TSLAB-MG is rated to a maximum load of 160kg and is not suitable under equipment heavier than that. The slab is a ground mount and is not built for wall-mounted or suspended positions.

        (TSLAB-MG)

        100-Day Fuss-Free Returns
        We want you to love what you buy—but if you change your mind, that’s okay too. That’s why Sparky Direct offers a 100-day money-back guarantee.

        • Items must be unused, with all parts, accessories, and original packaging.
        • We can’t accept returns if the product is damaged, incomplete, or not in resalable condition.
        • Proof of purchase is required.
        • Return shipping is the responsibility of the customer.

        If your item isn’t in its original condition, please contact us before returning it—we might save you time and money.

        All products come with a manufacturer’s or supplier’s warranty

        • Warranty starts from the Invoice Date
        • Some suppliers offer in-home warranties and handle claims directly, so you won’t need to uninstall or return the product. Chat with us to check if your product qualifies.
        • Sparky Direct isn’t responsible for losses caused by product failure.
        • Warranties are void if products aren’t installed by a licensed electrician.

        Damaged or Faulty Goods
        If your order arrives damaged or is faulty, let us know within 24 hours.

        • Sparky Direct will pay for return shipping via an emailed return label.
        • If the fault is confirmed, we will send you a replacement item or provide a refund.

        Contact us via our chat to arrange the return.

        Exclusions
        We can’t accept returns for:

        • Items that have been installed, modified, or used
        • Clearance, End of life, Discontinued, or special order items (unless faulty)
        • All PPE Items
        • Goods returned without original packaging or proof of purchase

        How to Request a Return

        1. Contact our customer service team with your order number.
        2. Confirm it’s eligible under our return or warranty policy.
        3. Pack the item securely and return it using a trackable service.
        4. Once we receive and inspect it, we’ll process your refund or replacement.

        Warranty starts from Invoice Date

        Domestic Use: 1 Year
        Commercial Use: 1 Year
        Warranty Method: Return to Sparky Direct

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Pro Pipe
        SKU TSLAB-MG
        Model # TSLAB-MG
        Package Weight 2.250kg
        View Datasheet
        TYPE VALUE
        Type Air Conditioner Accessory
        Brand Pro Pipe
        Colour Grey
        Height (mm) 50
        Width (mm) 430
        Length (mm) 900
