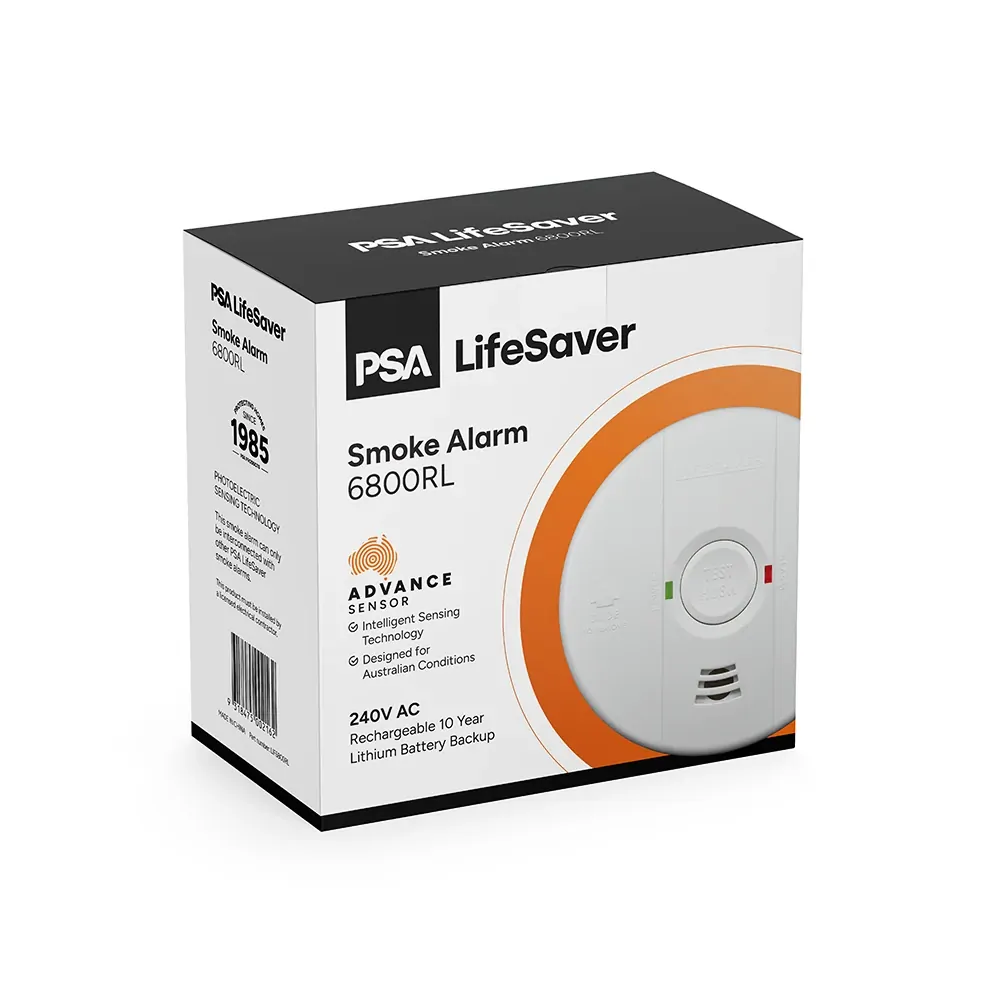

PSA LIF6800RL | 240V Photoelectric Smoke Alarm with 10-Year Rechargeable Lithium Battery Backup
Learn more by watching our PSA LIF6800RL | 240V Photoelectric Smoke Alarm with 10-Year Rechargeable Lithium Battery Backup video.
The PSA LIF6800RL smoke alarm offers advanced photoelectric sensing technology to minimise false alarms while providing reliable protection. It ensures continuous operation even during power outages with a 240V AC power supply and a 10-year rechargeable lithium battery backup. The new design incorporates an advanced sensor chamber specifically engineered to withstand high heat and humidity, making it more resilient to false alarms caused by insects or moisture.
Tested and approved to Australian Standards, the LIF6800RL has undergone rigorous trials across various challenging sites in Australia, demonstrating zero failures during an 18-month test period. The Department of Housing has also approved it in several Australian states. The smoke alarm features an easy-to-install QUICK SLIDE base and offers a 10-year warranty, making it a reliable choice for long-term safety.
Q: How long does the battery last?
A: The LIF6800RL is equipped with a 10-year rechargeable lithium battery designed to last the alarm's lifetime.
Q: Can this alarm be interconnected with other units?
A: Yes, the LIF6800RL can be interconnected with up to 24 hard-wired or wirelessly units.
Q: What happens if the battery is low?
A: The alarm will emit a low battery signal that can be silenced for 8 hours, giving you time to replace the unit or take appropriate action.
Q: Why does my PSA product have the old logo and a 5-Year Warranty on the box?
A: PSA is in the process of rebranding its logo and packaging. Some boxes may still have the previous logo and mention a 5-Year Warranty.
Q: Is my PSA product still covered under the new warranty?
A: Yes, we can assure you that your PSA product comes with a 10-year Warranty, regardless of what is printed on the packaging.
(LIF6800RL)
Warranty starts from Invoice Date
Domestic Use: 10 Years
Commercial Use: 10 Years
Warranty Method: Return to Sparky Direct
| Specification | Details |
|---|---|
| Sensor Type | Photoelectric Advance Sensor |
| Supply Voltage | 240V AC 50Hz |
| Power Consumption | 10mA max per alarm, 4mA (standby) |
| Battery Back-up | Rechargeable lithium (non-replaceable) 10 year life |
| Interconnecting | Interconnectable up to 24 units |
| Alarm Volume | 85dBA at 3 metres |
| Alarm Signal Pattern | ISO8201 (T3 - Repeat 3 long beeps) |
| Temperature Range | 0ËšC - 40ËšC |
| Humidity Range | Up to 93% RH (non-condensing) |
| Hush Function | Silences alarm for 9 minutes Red LED flashes every 10 seconds Dense smoke will override hush function |
| Low Battery Hush | Silence low battery beeping for 8 hours |
| Alarm Duration | Alarm will sound for as long as smoke is detected, then unit will automatically reset when smoke clears. |
| Alarm Indication | Red LED flashes every second. When interconnected, only the red LED of initiating unit will flash. |
| Alarm Memory | Red LED flashes 3 times every 40 seconds. Pressing Test button will sound a short beeping sequence. |
| Chamber Monitoring | 3 beeps every 40 seconds. Indicates maintenance is required. |
| Indicator LEDs | Green LED - Power indicator Red LED - Alarm status indicator, differentiated by frequency of flash. |
| Wiring Terminal | 9V, Active, Switch, Neutral, Loop |
| Dimensions | 130mm (diameter) x 45mm (depth) |
| Approvals | ActivFire, SAI Global, RCM, AS3786:2014 |
These specifications and characteristics outline physical, mechanical, electrical details.
| Brand | PSA Products |
| SKU | LIF6800RL |
| Barcode # | 9318475002162 |
| Shipping Weight | 0.3100kg |
| Shipping Width | 0.140m |
| Shipping Height | 0.055m |
| Shipping Length | 0.140m |
| Shipping Cubic | 0.001078000m3 |
| TYPE | VALUE |
|---|---|
| Type | Smoke Alarm |
| Brand | PSA |
| Colour | White |
