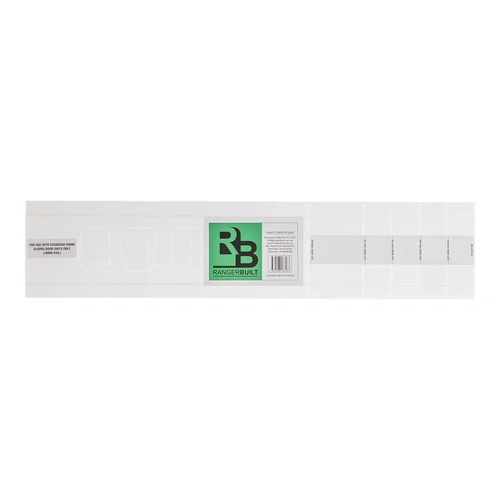

        RangerBuilt RCSU01 | Cavity Switch Unit for Sliding Door Walls | Suit 90mm–100mm Frame

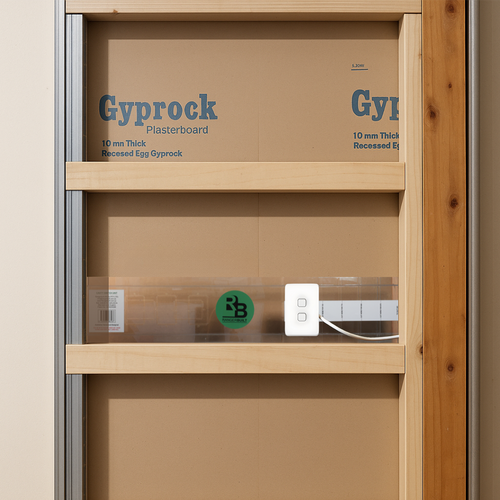

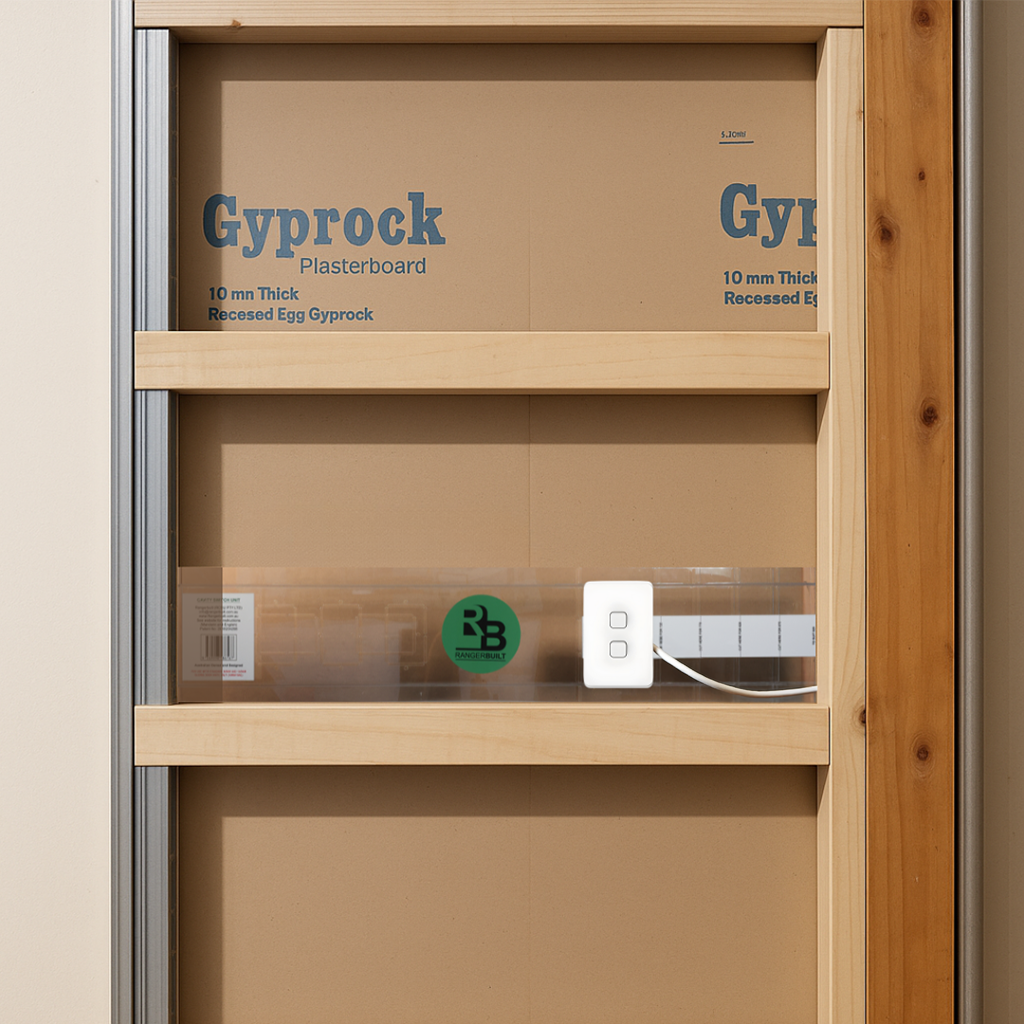

        The RangerBuilt RCSU01 cavity switch unit is a smart solution for installing switches or GPOs on cavity sliding door walls—an area traditionally avoided for electrical fittings. Designed for 90mm to 100mm wall frames, this Australian-made unit safely enables vertical or horizontal switch placement without interfering with door operation.

        Suitable for cavity door widths between 620mm and 920mm, it protects electrical cabling from door movement and integrates easily with standard installations. Ideal for tight spaces or modern layouts, the RCSU01 is a simple way to maximise functionality in residential or commercial projects.

        Important Note: Some sliding door cavities may have space limitations. Certain dimmers or bulky switch models may require a mounting block or may not be compatible.

        RangerBuilt RCSU01 Features

        • Install switches on cavity sliding door walls: Unlocks previously unusable wall space.
        • Suits 90mm to 100mm wall frames: Compatible with standard cavity frame depths.
        • Vertical or horizontal orientation: Allows flexible installation layouts.
        • Protects electrical wiring: Prevents contact with the moving door.
        • Fits 620mm to 920mm cavity doors: Made for common door sizes.
        • Australian made and owned: Built to local standards with lasting quality.

        RCSU01 FAQ
        Q: Can it be used for both switches and power points?
        A: Yes, it supports both GPOs and light switches.

        Q: What door sizes is it compatible with?
        A: It suits cavity sliding doors between 620mm and 920mm wide.

        Q: Does it require a licensed electrician to install?
        A: Yes, installation must be completed by a licensed electrician for safety and compliance.

        (RCSU01)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 1 Year
        Commercial Use: 1 Year
        Warranty Method: Return to Sparky Direct

        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand RangerBuilt
        SKU RCSU01
        Barcode # 9369998186167
        Package Weight 0.670kg
        Package Width 0.186m
        Package Height 0.030m
        Package Length 0.860m
        TYPE VALUE
        Type Cavity Switch Unit
        Brand RangerBuilt
        Material Plastic Polyethylene
        Mounting Type Wall
