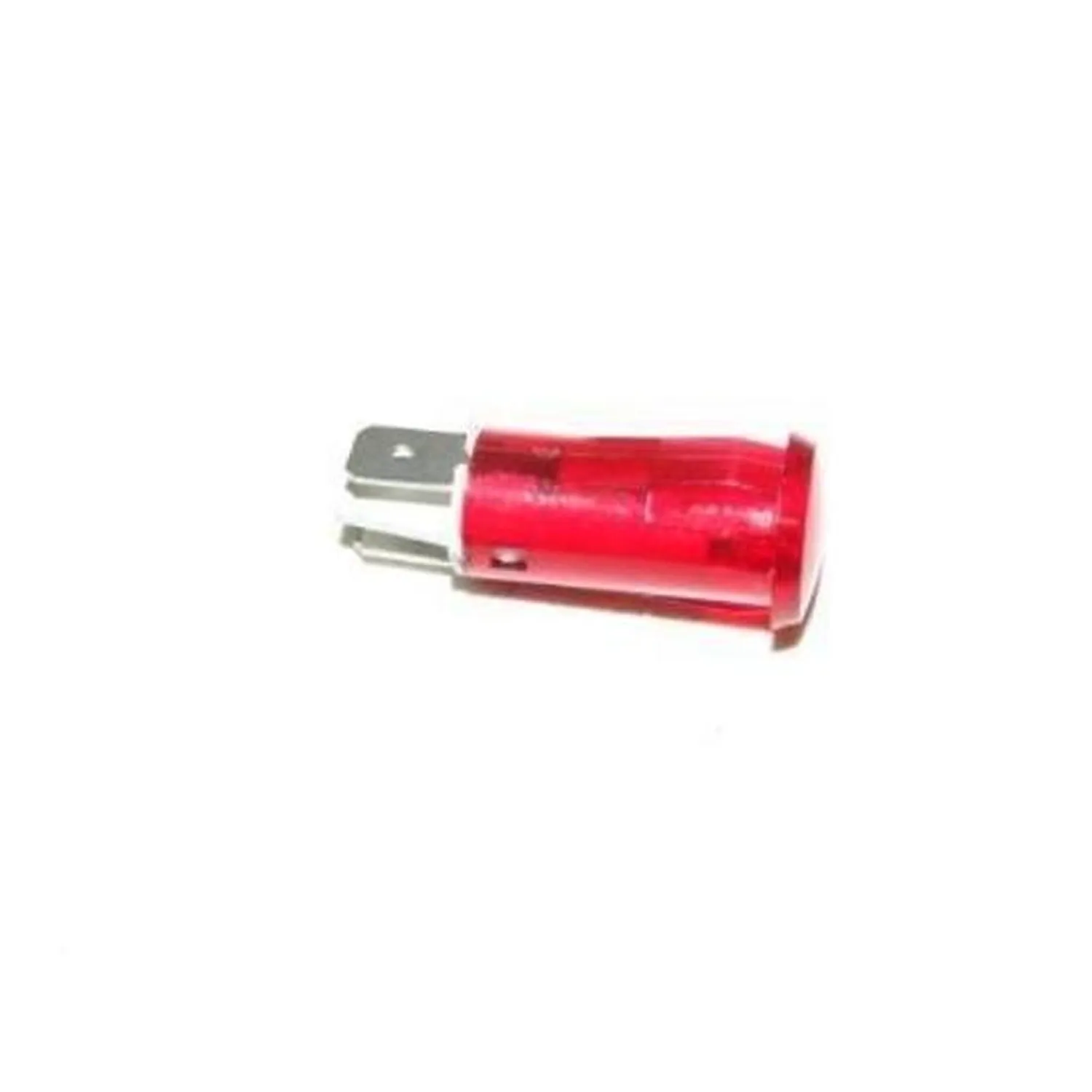

        Global Components | Neon Indicator 12mm 240VAC | Red Larger Thick Type

        The Global Components A29A is a red neon indicator rated 240VAC, supplied in the larger thick body style. The A29A has a 12mm body diameter, a 15.7mm bezel and an overall length of 38.4mm, and connects through two 6.4mm spade terminals.

        An indicator that no longer lights gives no reading on whether the circuit behind it is live. Swapping one in is a measuring job before it is a wiring job. The 12mm body passes through the panel opening, the 15.7mm bezel seats over it, and 38.4mm of length clears behind the fascia. Check all three figures against the indicator coming out, along with the terminal size.

        Features

        • 240VAC rating — the A29A is rated 240VAC for direct connection to a mains-voltage circuit.
        • Neon lamp — a neon element lights when the circuit behind the panel is energised, giving a visual check at the fascia.
        • Red lens — illuminates red, matching a red indicator being replaced rather than changing the colour shown at the panel.
        • 12mm body diameter — the barrel that passes through the panel measures 12mm, and that figure decides whether the A29A fits the existing opening.
        • 15.7mm bezel — the visible bezel measures 15.7mm and seats against the panel face around the opening.
        • 38.4mm overall length — total length is 38.4mm, which sets the clearance needed behind the panel.
        • Twin 6.4mm spade terminals — two 6.4mm spade terminals at the rear take standard push-on connectors.
        • Larger thick body style — supplied in the thicker, larger-bodied pattern, which determines the panel housing it suits.
        • One year warranty — the A29A carries one year of cover for domestic use and one year for commercial use.
        • Licensed installation required — manufacturer and supplier warranties are void where the product is not installed by a licensed electrician.

        Where to use

        • Appliance and element repairs — the A29A is catalogued under Elements and Parts, the Sparky Direct range covering component-level repair items.
        • Mains-voltage indication — fitted on 240V circuits where an operator needs to see that the circuit behind the fascia is live.
        • 12mm panel openings — suited to positions where the existing opening and indicator barrel measure 12mm, matching the A29A body.
        • Push-on terminal rework — fits where the existing loom terminates in 6.4mm spade connectors and the indicator is swapped onto the same leads.
        • Like-for-like colour matching — chosen where the indicator coming out shows red and the replacement needs to present the same.

        The A29A is rated 240VAC and is not rated for extra-low-voltage circuits. A position with less than 38.4mm of clearance behind the panel, or an opening that does not take the 12mm body, will not accept it. The listing states that the buyer confirms compatibility and suitability with a licensed installer before purchase.

        (A29A)

        The A29A is rated 240VAC and connects directly to a mains-voltage circuit. It is not rated for extra-low-voltage circuits. Check the supply at the indicator position before fitting.

        Installation by a licensed electrician is required for warranty cover. Sparky Direct states that manufacturer and supplier warranties are void where products are not installed by a licensed electrician. Electrical and appliance products sold by Sparky Direct are intended for installation by licensed, appropriately qualified professionals under the applicable Australian Standards.

        The body diameter is 12mm, so the panel opening needs to take a 12mm barrel. The bezel measures 15.7mm and seats over the opening on the panel face. Allow 38.4mm of overall length for clearance behind the panel. Measure the indicator coming out against all three figures.

        Connection is through two 6.4mm spade terminals at the rear of the indicator, taking standard push-on connectors. Where the existing indicator uses the same 6.4mm spade size, the A29A connects to the existing leads.

        Sparky Direct lists one year of warranty for domestic use and one year for commercial use, running from the invoice date, with claims returned to Sparky Direct. Change of mind returns run under the 100 day money back guarantee. Clearance, end of life and discontinued items are excluded from that guarantee unless faulty.

        Fitment is determined by measurement rather than appearance. Match the 12mm body diameter, the 15.7mm bezel, the 38.4mm overall length and the 6.4mm terminal size against the part being replaced. The Sparky Direct listing asks buyers to confirm compatibility and suitability with a licensed installer before purchase.

        The Global Components A29A is available online from Sparky Direct, with Australia-wide delivery to any state or territory including regional areas. Sparky Direct is an Australian electrical wholesaler established in 2005, supplying more than 500,000 customers with transparent trade pricing.

        100-Day Fuss-Free Returns
        We want you to love what you buy—but if you change your mind, that’s okay too. That’s why Sparky Direct offers a 100-day money-back guarantee.

        • Items must be unused, with all parts, accessories, and original packaging.
        • We can’t accept returns if the product is damaged, incomplete, or not in resalable condition.
        • Proof of purchase is required.
        • Return shipping is the responsibility of the customer.

        If your item isn’t in its original condition, please contact us before returning it—we might save you time and money.

        All products come with a manufacturer’s or supplier’s warranty

        • Warranty starts from the Invoice Date
        • Some suppliers offer in-home warranties and handle claims directly, so you won’t need to uninstall or return the product. Chat with us to check if your product qualifies.
        • Sparky Direct isn’t responsible for losses caused by product failure.
        • Warranties are void if products aren’t installed by a licensed electrician.

        Damaged or Faulty Goods
        If your order arrives damaged or is faulty, let us know within 24 hours.

        • Sparky Direct will pay for return shipping via an emailed return label.
        • If the fault is confirmed, we will send you a replacement item or provide a refund.

        Contact us via our chat to arrange the return.

        Exclusions
        We can’t accept returns for:

        • Items that have been installed, modified, or used
        • Clearance, End of life, Discontinued, or special order items (unless faulty)
        • All PPE Items
        • Goods returned without original packaging or proof of purchase

        How to Request a Return

        1. Contact our customer service team with your order number.
        2. Confirm it’s eligible under our return or warranty policy.
        3. Pack the item securely and return it using a trackable service.
        4. Once we receive and inspect it, we’ll process your refund or replacement.

        Warranty starts from Invoice Date

        Domestic Use: 1 Year
        Commercial Use: 1 Year
        Warranty Method: Return to Sparky Direct

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Global Components
        SKU A29A
        Package Weight 0.010kg
        TYPE VALUE
        Type Elements and Parts
        Colour Red
        Length (mm) 38.4
        Size 12mm body
        Voltage (V) 240
        Diameter (mm) 15.7

        Electrical and HVAC products sold by Sparky Direct are intended for installation by licensed and appropriately qualified professionals in accordance with applicable Australian Standards and regulatory requirements. Customers are responsible for ensuring that any product purchased, including any related or associated components, is compatible and suitable for their intended installation and application.

        Sparky Direct does not provide installation advice and does not assess product suitability for individual circumstances unless expressly confirmed in writing. Customers must confirm correct product selection, compatibility, compliance, and suitability with a licensed or appropriately qualified professional prior to purchase.

        Tools sold by Sparky Direct must be used safely and in accordance with the manufacturer’s instructions. Customers are responsible for ensuring they have the necessary knowledge and competence to operate any tool purchased. If you are unsure how to safely or correctly use a tool, do not use it and seek guidance from the manufacturer or a suitably qualified professional.

        Nothing in this clause limits or excludes any rights or guarantees available under the Australian Consumer Law.
