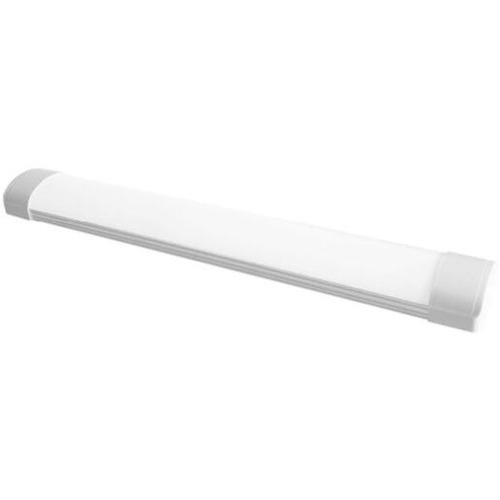

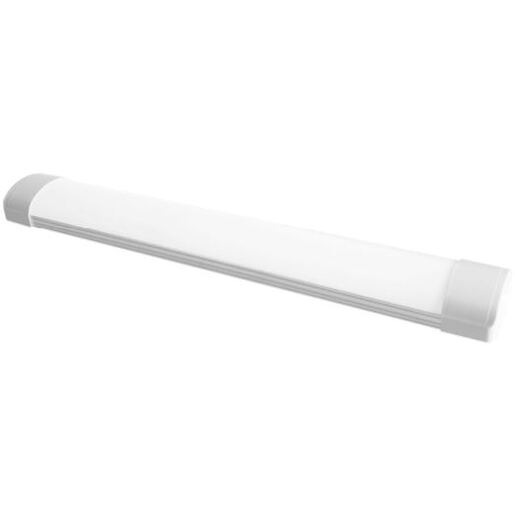

        Robus RBNX06CCT3-01 | Batten LED 600MM 10/20W CCT 3/4/6.5K IP20

        The Robus RBNX06CCT3-01 is a 600mm LED batten with selectable wattage and colour temperature, offering 10 or 20W output and switchable CCT options of 3000K, 4000K, or 6500K. It’s a direct replacement for 1x18W or 2x18W T8 fluorescent fittings and features a slim aluminium body with polycarbonate ends. The large terminal block supports up to 2.5mm² cable, and it’s compatible with PIR, microwave, and photocell controls for automated indoor lighting.

        Robus RBNX06CCT3-01 Features

        • Selectable wattage and colour temperature. Choose between two power outputs and switch among 3000K, 4000K, or 6500K to suit various lighting needs.
        • LED replacement for T8 fittings. Designed to directly replace 1x18W or 2x18W T8 fluorescent battens for improved efficiency.
        • Low profile aluminium housing. Slim, modern body with strong polycarbonate ends and diffuser for durability.
        • Large terminal block. Supports up to 2.5mm² cable to simplify and speed up the installation process.
        • Control compatibility. Works seamlessly with PIR, microwave, or photocell sensors for automated operation.

        RBNX06CCT3-01 FAQ

        Q: What colour temperatures are available on this batten?
        A: It supports 3000K, 4000K, and 6500K, selectable via an integrated switch.

        Q: Is it compatible with occupancy sensors?
        A: Yes, it works with PIR, microwave, and photocell control systems.

        Q: What fittings does it replace?
        A: It is a direct LED replacement for 1x or 2x18W T8 fluorescent battens.

        (RBNX06CCT3-01)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 3 Year
        Commercial Use: 3 Year
        Warranty Method: Return to Sparkydirect

        Features
        Specification Details
        Total Power (W) 10.8 / 20.2
        Lumens (lm) 1230 / 2210
        Beam Angle (°) 110
        Comparable To 1x / 2x 18W T8 fluorescent
        CRI 80
        CCT (K) 3000 / 4000 / 6500
        Efficacy (lm/W) 115 / 109
        Lux at 1m 410 / 740
        Power Factor 0.9
        Colour RAL9003
        Length (mm) 600
        Width (mm) 83
        Height / Depth (mm) 35
        Unit Weight (kg) 0.42
        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Robus
        SKU RBNX06CCT3-01
        Barcode # 5391370095785
        Package Weight 0.560kg
        Package Width 0.090m
        Package Height 0.050m
        Package Length 0.610m
        TYPE VALUE
        Type Batten Light
        Brand Robus
        Colour White
        Light Colour (K) 3000/4000/6500
        Wattage (W) 10/20
