        SAL PLUTO40DV | LED Driver Constant Voltage | 40W 12/24V DC
        $36.24 $32.95 ex. GST
        Video

        Learn more by watching our SAL PLUTO40DV | LED Driver Constant Voltage | 40W 12/24V DC video.

        Description

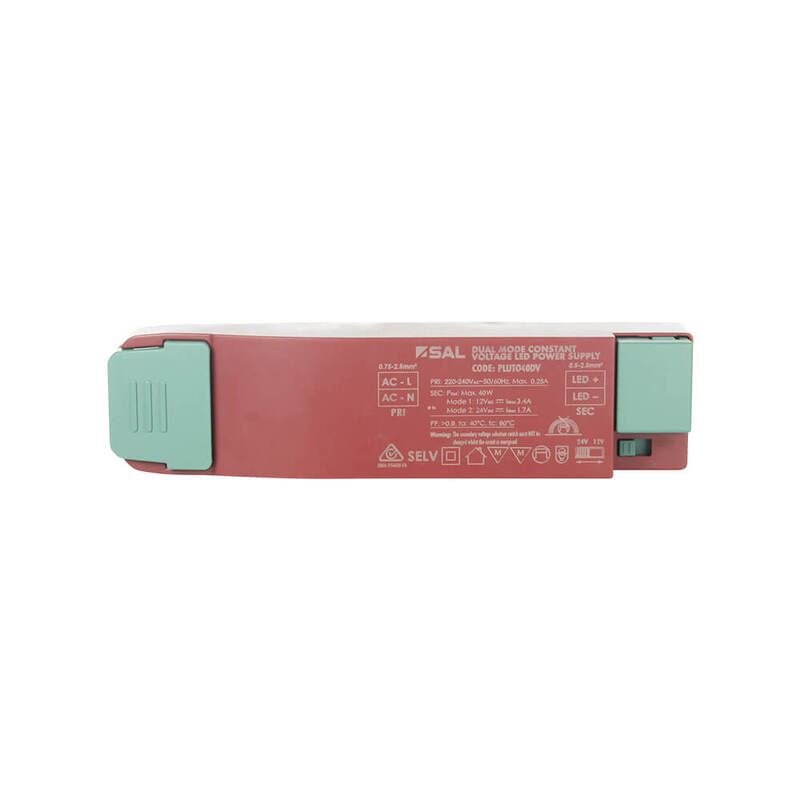

        SAL PLUTO40DV | LED Driver Constant Voltage | 40W 12/24V DC

        Description:

        The SAL PLUTO40DV is a robust LED driver designed for the modern electrician. With a powerful 40W capacity, it caters to both 12V DC and 24V DC outputs, ensuring versatility in application. Its SELV and EMC compliance marks a commitment to safety, paired with a no-load operation feature. This non-dimmable driver stands out for its overload and short circuit protection, guaranteeing reliability. The hard-wired termination design adds to its practicality. Its compact dimensions (160mm x 40mm x 30mm) make it ideal for retrofit and maintenance projects. Operating at 50Hz frequency and with an IP20 rating, this unit is built for efficiency and durability. However, it's important to note its Electrical Class II rating and the instruction "Do Not Cover."

        Key Features:

        • Dual Voltage Capability: Selectable 12V DC or 24V DC outputs.
        • Safety Assured: SELV and EMC compliant with safe no-load operation.
        • Protection Mechanisms: Equipped with overload and short circuit protection.
        • Design Excellence: Hard-wired termination design for stability.
        • Compact and Versatile: Ideal for retrofit and maintenance with captive terminal screws.
        • Specifications: 160mm x 40mm x 30mm, 50Hz frequency, IP20 rated.

        FAQ:

        Q: Is the SAL PLUTO40DV dimmable?
        A: No, it is not dimmable.

        Q: What is the wattage capacity of this LED driver?
        A: It has a 40-watt capacity.

        Q: Can it be used for both 12V and 24V DC outputs?
        A: Yes, it supports selectable 12V or 24V DC outputs.

        Q: What are the dimensions of this LED driver?
        A: The dimensions are 160mm (L) x 40mm (W) x 30mm (H).

        (PLUTO40DV)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 3 Year
        Commercial Use: 2 Year
        Warranty Method: Return to Sparky Direct

        Features
        Specification Detail
        Input Voltage (V/AC) 240
        Frequency (Hz) 50
        Power (W) 40
        Power Factor 0.9
        IP Rating IP20
        Dimmable No
        Selectable 12/24V DC
        Compliancy SELV and EMC
        Dimensions (mm) 160(L) x 40(W) x 30(H)
        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand SAL
        SKU PLUTO40DV
        Barcode # 9328623132603
        Shipping Weight 0.1650kg
        Shipping Width 0.200m
        Shipping Height 0.040m
        Shipping Length 0.050m
        Shipping Cubic 0.000400000m3
        View Datasheet
        TYPE VALUE
        Type LED Power Supply
        Brand SAL
        Colour Red
