        Learn more by watching our SAL S9068TW35WH-RS | COOLUM ripple SHIELD 9W LED Dimmable Downlight | White | 92MM Hole video.

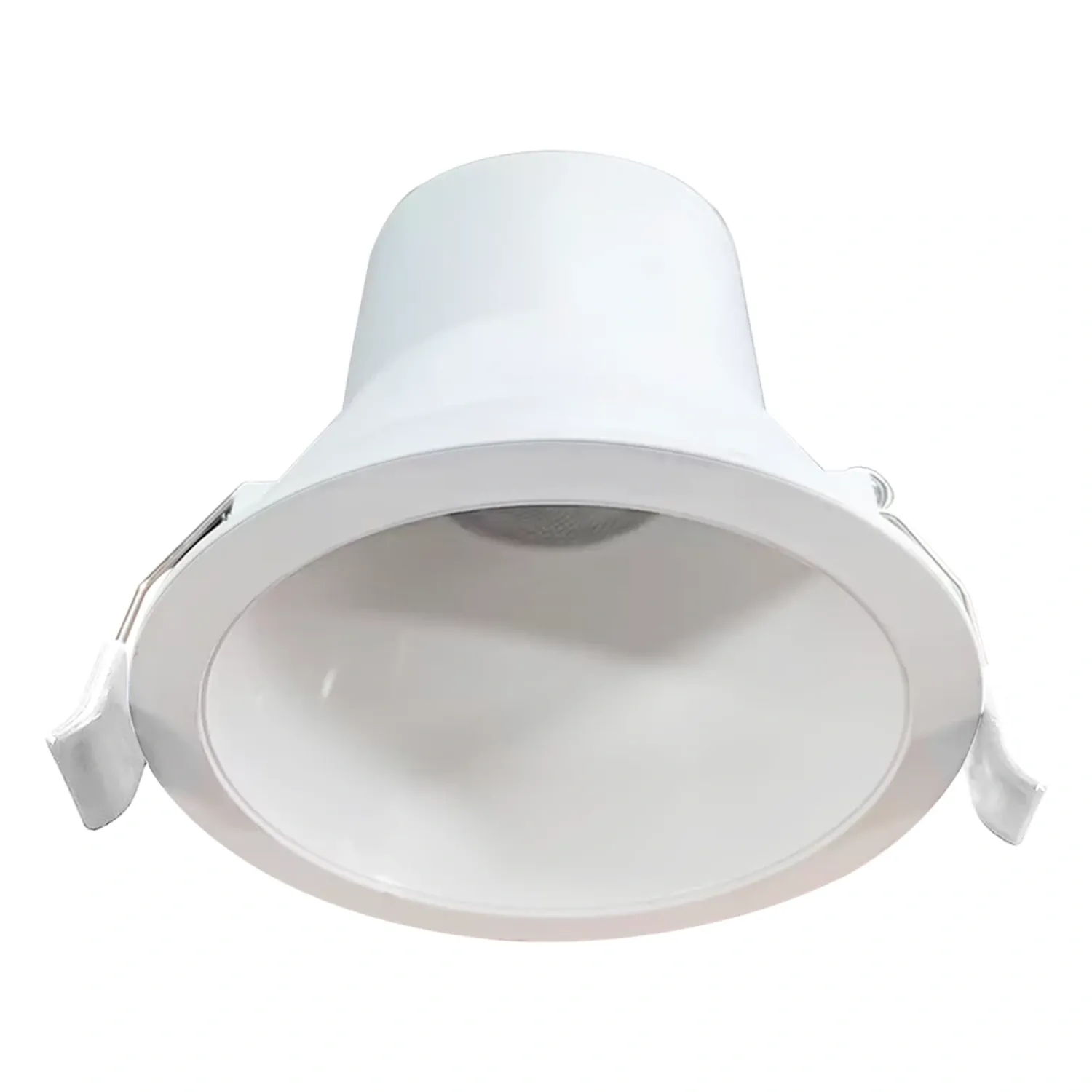

        SAL | COOLUM PLUS rippleSHIELD Dimmable LED Downlight 9W 240V | White 92mm Cut-Out

        The SAL S9068TW35WH-RS is a 9W dimmable LED downlight for a 92mm ceiling cut-out, with tunable white output selectable at 3000K, 4000K, or 6500K. The S9068TW35WH-RS carries SAL's rippleSHIELD driver, which targets the nuisance flicker caused by ripple injection on the supply. It is rated 240V, delivers 800 to 830 lumens depending on the colour temperature selected, and is CA-90 rated and double insulated.

        Ripple injection signalling on the distribution network makes LED downlights flicker visibly, and no adjustment at the luminaire resolves it. The complaint returns to the electrician who installed the lighting, even though responsibility sits with the supply authority. The S9068TW35WH-RS answers that with an integral rippleSHIELD driver, which SAL rates to eliminate ripple-induced flicker when the luminaire operates on the matching rippleSHIELD dimmer module. A UGR below 19 and CRI above 90 also cover interiors where glare and colour rendering are assessed.

        Specifying a rippleSHIELD luminaire in a ripple-affected area removes a callback with no remedy available at the fitting. The driver dims down to 1.0% of light output, so a single fitting covers bedrooms and living areas without a second product on the lighting schedule. Flex and plug termination accelerates the fit-off. The polyamide trim measures 103mm across and seats in the same 92mm cut-out specified through most residential downlight schedules.

        Features

        • 9W LED output — draws 9 watts at 240V AC and delivers between 800 and 830 lumens depending on the colour temperature selected.
        • Tunable white selection — 3000K warm white, 4000K cool white, and 6500K daylight are selectable on the S9068TW35WH-RS.
        • rippleSHIELD driver — the integral driver is SAL's rippleSHIELD type, rated to eliminate ripple-induced flicker when paired with the matching rippleSHIELD dimmer module.
        • Dims to 1.0% — SAL rates the integral driver for smooth dimming down to 1.0% of light output.
        • Matched dimmer required — SAL specifies the S9068TW35WH-RS as dimmable only with its rippleSHIELD dimmer module, not with a generic leading or trailing edge dimmer.
        • 60 degree beam — a multi-faceted optical system delivers a 60 degree beam distribution for general room lighting.
        • UGR below 19 — the unified glare rating sits under 19, which suits offices and interiors where glare is assessed against the task.
        • CRI above 90 — colour rendering index stays above 90 across the three selectable colour temperatures.
        • Double insulated — the S9068TW35WH-RS is double insulated and CA-90 rated.
        • Flex and plug lead — supplied with a flex and plug lead for connection to a socket in the ceiling space.
        • 92mm cut-out — the S9068TW35WH-RS seats in a 92mm ceiling cut-out, at 103mm trim diameter and 89mm height.
        • IP44 indoor rating — rated IP44 and listed by SAL for interior installation, not for exterior or exposed locations.

        Where to use

        • Ripple-affected homes — the S9068TW35WH-RS suits properties on networks where ripple injection signalling causes nuisance flicker in LED lighting.
        • Bedrooms and living areas — 3000K warm white with dimming down to 1.0% covers evening light levels without a second fitting type.
        • Kitchens and hallways — 4000K cool white runs at 830 lumens through circulation and bench areas.
        • Offices and reception areas — the UGR below 19 rating suits commercial interiors where unified glare rating is assessed.
        • Retail interiors — CRI above 90 renders stock colour accurately under the 60 degree beam distribution.
        • New builds and rewires — the S9068TW35WH-RS drops into the 92mm cut-out specified across most residential downlight schedules.
        • Downlight retrofits — an existing 92mm hole takes the fitting without re-cutting or patching the ceiling.

        The S9068TW35WH-RS dims only with SAL's matching rippleSHIELD dimmer module. A generic leading edge or trailing edge dimmer sits outside the specification and will not deliver the rated dimming or flicker performance. The fitting is rated IP44 and listed for indoor installation, so it is not for exterior or exposed locations.

        (S9068TW35WH-RS)

        rippleSHIELD helps reduce flicker caused by ripple injection in LED lighting systems, helping provide more stable light output.

        Yes. It supports dimming and is designed to work with compatible dimmers such as the SAL SDD400RS-BTAM.

        It has a 60° beam angle, providing controlled light spread for general room lighting.

        It is designed for a 92mm ceiling cut out, which is a common size for residential downlight installations.

        Yes. It includes a flex and plug lead to support faster installation by a licensed electrician.

        Yes. Sparky Direct stocks the SAL S9068TW35WH-RS with fast dispatch and fast delivery Australia wide.

        100-Day Fuss-Free Returns
        We want you to love what you buy—but if you change your mind, that’s okay too. That’s why Sparky Direct offers a 100-day money-back guarantee.

        • Items must be unused, with all parts, accessories, and original packaging.
        • We can’t accept returns if the product is damaged, incomplete, or not in resalable condition.
        • Proof of purchase is required.
        • Return shipping is the responsibility of the customer.

        If your item isn’t in its original condition, please contact us before returning it—we might save you time and money.

        All products come with a manufacturer’s or supplier’s warranty

        • Warranty starts from the Invoice Date
        • Some suppliers offer in-home warranties and handle claims directly, so you won’t need to uninstall or return the product. Chat with us to check if your product qualifies.
        • Sparky Direct isn’t responsible for losses caused by product failure.
        • Warranties are void if products aren’t installed by a licensed electrician.

        Damaged or Faulty Goods
        If your order arrives damaged or is faulty, let us know within 24 hours.

        • Sparky Direct will pay for return shipping via an emailed return label.
        • If the fault is confirmed, we will send you a replacement item or provide a refund.

        Contact us via our chat to arrange the return.

        Exclusions
        We can’t accept returns for:

        • Items that have been installed, modified, or used
        • Clearance, End of life, Discontinued, or special order items (unless faulty)
        • All PPE Items
        • Goods returned without original packaging or proof of purchase

        How to Request a Return

        1. Contact our customer service team with your order number.
        2. Confirm it’s eligible under our return or warranty policy.
        3. Pack the item securely and return it using a trackable service.
        4. Once we receive and inspect it, we’ll process your refund or replacement.

        Warranty starts from Invoice Date

        Domestic Use: 5 Year
        Commercial Use: 3 Year
        Warranty Method: Return to Sparky Direct

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand SAL
        SKU S9068TW35WH-RS
        Model # S9068TW35WH/RS
        Barcode # 9328623134867
        Package Weight 0.390kg
        Package Width 0.100m
        Package Height 0.160m
        Package Length 0.115m
        View Datasheet
        View Manual
        TYPE VALUE
        Type Lighting
        Colour White
        Height (mm) 89
        Protection IP44
        Mounting Recessed
        Lumens (lm) 800/830/810
        Lighting Technology LED
        Beam Angle (Degree) 60
        Ripple Resistance Yes
        Cutout (mm) 92
        Colour Temperature 3000/4000/6500
        CRI 90
        Diameter (mm) 103
        Installation Area Indoor
        Dimmable Yes
        Wattage (W) 9
        Voltage (V) 240V
