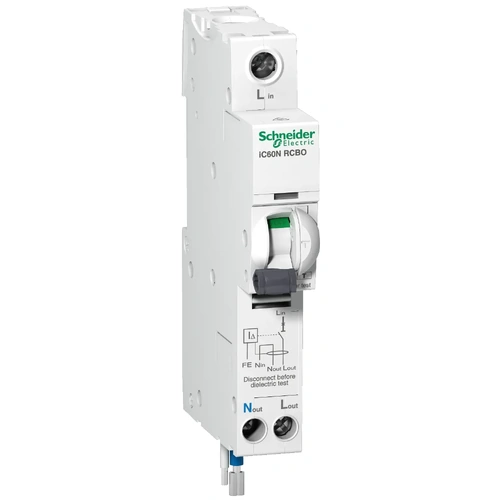

The Schneider A9D61810 is a compact DIN-mounted RCBO that provides combined residual current (earth leakage) and overcurrent protection in one device. With a 10A rating, 30mA sensitivity, and C Curve tripping, it's ideal for protecting final sub-circuits on 230/240V AC networks, particularly where inductive loads like lighting or small appliances are used.
This 1P+Ns RCBO is Type A, detecting both AC and pulsating DC residual currents. It features a 6kA short-circuit breaking capacity, thermal-magnetic trip unit, and instantaneous tripping for quick fault response. The padlockable toggle, clear ON/OFF indicator, and screw-clamp terminals ensure safe operation and reliable installation.
It complies with AS/NZS 61009.1 and IEC 61009-2-2, and is designed for residential and commercial boards requiring robust and compact circuit protection.
A9D61810 Features
A9D61810 FAQ
Q: Can this RCBO be used in TN systems?
A: Yes, it is designed for TN earthing systems.
Q: Does this RCBO offer a visual ON/OFF indicator?
A: Yes, it includes a local ON/OFF indicator with padlock provision.
Q: Is this unit suitable for isolation?
A: Yes, it is suitable for isolation applications.
(A9D61810)
Warranty starts from Invoice Date
Domestic Use: 2 Year
Commercial Use: 2 Year
Warranty Method: Clipsal in home warranty
| Specification | Details |
|---|---|
| Product Name | Acti9 iC60 RCBO |
| Model | A9D61810 |
| Poles Description | 1P + Ns |
| Rated Current | 10 A at 50 °C |
| Curve Code | C |
| Earth Leakage Sensitivity | 30 mA |
| Breaking Capacity | 6000 A at 230/240 V AC 50/60 Hz |
| Earth Leakage Protection Class | Type A |
| Rated Operational Voltage | 230/240 V AC 50/60 Hz |
| Rated Insulation Voltage | 400 V AC |
| Rated Impulse Withstand Voltage | 4 kV |
| Dimensions (H x W x D) | 110 mm x 18 mm x 77.5 mm |
| Net Weight | 205 g |
| Mounting Mode | Clip-on (DIN rail) |
| Control Type | Toggle |
| Local Signalling | ON/OFF indication |
| IP Rating | IP20 |
| Standards | IEC 61009-2-2, IEC 61009-1, AS/NZS 61009.1 |
These specifications and characteristics outline physical, mechanical, electrical details.
| Brand | Clipsal by Schneider Electric |
| SKU | A9D61810 |
| Barcode # | 3606480558238 |
| Package Weight | 0.205kg |
| Package Width | 0.018m |
| Package Height | 0.077m |
| Package Length | 0.110m |
| TYPE | VALUE |
|---|---|
| Type | Circuit Protection |
| Brand | Schneider Electric |
| Range | Acti9 |
| Rated Current (A) | 10A |
| Height (mm) | 110mm |
| Width (mm) | 18mm |
| Depth (mm) | 77.5mm |
| Number of Poles | 1P + Ns |
| Breaking Capacity | 6kA |
| Earth Leakage Sensitivity | 30mA |
| Earth Leakage Protection Class | Type A |
| Curve | C |
