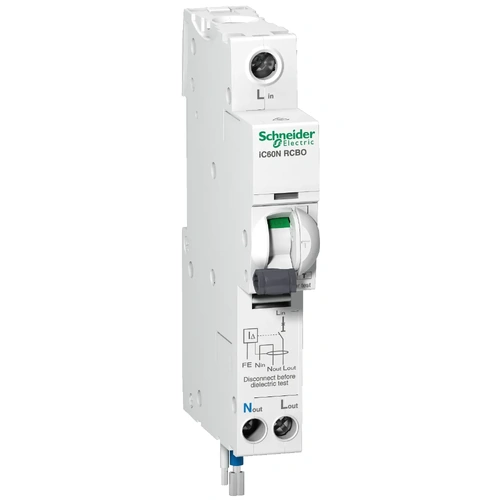

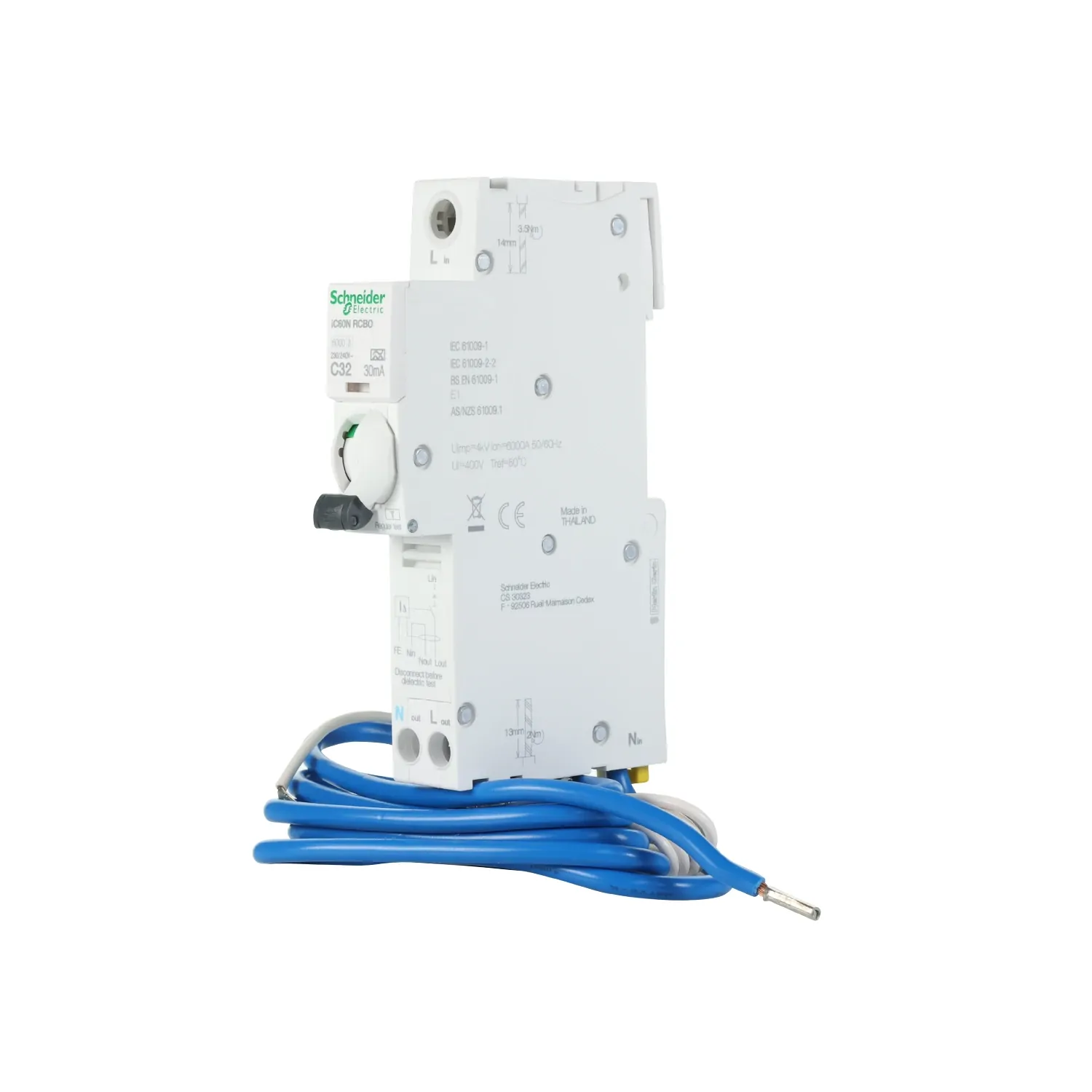

The Schneider Electric A9D61832 is a 32A, single module RCBO offering combined protection against earth leakage and overcurrent faults. Suitable for residential and commercial installations, it features a 30mA sensitivity, C Curve trip, and 6kA breaking capacity—making it ideal for lighting and general power circuits.
This DIN-mounted device includes a thermal-magnetic trip unit, padlockable toggle, and a clear ON/OFF indicator for maintenance safety. With a slim 18mm width and left-hand neutral configuration, it installs easily into tight switchboards and complies with AS/NZS 61009.1 standards.
A9D61832 Features
A9D61832 FAQ
Q: What kind of loads is this RCBO suited for?
A: The C Curve makes it suitable for lighting, appliances, and small motor loads.
Q: Can it be used in TN systems?
A: Yes, it’s designed for TN earthing systems commonly used in Australian installations.
Q: Is the toggle padlockable?
A: Yes, the toggle includes a padlock provision for secure isolation during maintenance.
(A9D61832)
100-Day Fuss-Free Returns
We want you to love what you buy—but if you change your mind, that’s okay too. That’s why Sparky Direct offers a 100-day money-back guarantee.
If your item isn’t in its original condition, please contact us before returning it—we might save you time and money.
All products come with a manufacturer’s or supplier’s warranty
Damaged or Faulty Goods
If your order arrives damaged or is faulty, let us know within 24 hours.
Contact us via our chat to arrange the return.
Exclusions
We can’t accept returns for:
How to Request a Return
Warranty starts from Invoice Date
Domestic Use: 2 Year
Commercial Use: 2 Year
Warranty Method: Clipsal in home warranty
| Specification | Details |
|---|---|
| Model | A9D61832 |
| Product Type | RCBO - Residual Current Breaker with Overcurrent Protection |
| Poles Description | 1P + Ns |
| Rated Current | 32 A at 50°C |
| Curve Code | C |
| Breaking Capacity | 6000 A at 230/240 V AC 50/60 Hz |
| Earth Leakage Sensitivity | 30 mA |
| Earth Leakage Protection Class | Type A |
| Residual Current Tripping | Voltage dependent, instantaneous |
| Rated Operational Voltage | 230/240 V AC 50/60 Hz |
| Rated Insulation Voltage | 400 V AC |
| Impulse Withstand Voltage | 4 kV |
| Surge Current | 250 A |
| Mounting | DIN rail, clip-on |
| Dimensions (H×W×D) | 110 × 18 × 77.5 mm |
| Net Weight | 205 g |
| Colour | White |
| Mechanical Durability | 20000 cycles |
| Electrical Durability | 5000 cycles |
| Degree of Protection | IP20 |
| Standards | IEC 61009-1, IEC 61009-2-2, AS/NZS 61009.1 |
These specifications and characteristics outline physical, mechanical, electrical details.
| Brand | Clipsal by Schneider Electric |
| SKU | A9D61832 |
| Barcode # | 3606480558276 |
| Package Weight | 0.205kg |
| Package Width | 0.018m |
| Package Height | 0.077m |
| Package Length | 0.110m |
| TYPE | VALUE |
|---|---|
| Type | Circuit Protection |
| Brand | Schneider Electric |
| Range | Acti9 |
| Rated Current (A) | 32A |
| Height (mm) | 110mm |
| Width (mm) | 18mm |
| Depth (mm) | 77.5mm |
| Number of Poles | 1P + Ns |
| Breaking Capacity | 6kA |
| Earth Leakage Sensitivity | 30mA |
| Earth Leakage Protection Class | Type A |
| Curve | C |
