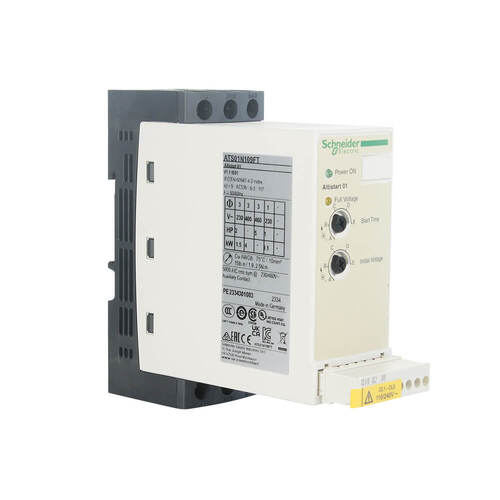

Name: Schneider Electric ATS01N109FT | Altistart Soft Starter 9A 110-480V 1.1-4KW
Brand: Clipsal by Schneider Electric
SKU: ATS01N109FT
Price: 409.79 AUD
Availability: InStock

Schneider Electric ATS01N109FT | Altistart Soft Starter 9A 110-480V 1.1-4KW

Description:

The Schneider Electric ATS01N109FT Altistart Soft Starter is an advanced and compact solution designed for electricians. This DIN rail-mounted device is capable of feeding single or 3-phase asynchronous motors with a rating of up to 9A, making it suitable for a wide range of applications.

Specifically, the ATS01N109FT can be used for motors with rated power up to 4kW or 5hp for 3-phase (110V to 480V AC) and up to 1.1kW for single-phase (110V to 230V AC). This versatility makes it ideal for simple machines such as conveyors, pumps, fans, compressors, automatic doors and gates, small cranes, and belt-driven machinery.

At 45mm wide, this soft starter is among the smallest on the market, ensuring it can be installed in nearly any space. Its integrated bypass feature reduces noise and decreases heat dissipation, enhancing the working environment and extending the equipment's lifespan.

The ATS01N109FT is designed for easy setup with only two settings, making it easy to configure and quicker to setup. It provides a smooth start for machinery, thereby avoiding mechanical stresses and extending service life.

Features:

Versatile Motor Control: Suitable for motors up to 9A, 1.1-4KW power.

Compact Design: One of the smallest soft starters, allowing for flexible installation.

Noise and Heat Reduction: Integrated bypass for quieter, cooler operation.

User-Friendly Setup: Simple configuration with only two settings.

Enhanced Equipment Lifespan: Provides smooth starts, reducing mechanical stress.

FAQ:

Q: What types of motors can this soft starter control?
A: It's designed for single or 3-phase asynchronous motors up to 9A.

Q: Is it easy to install?
A: Yes, its compact size and simple configuration make installation straightforward.

Q: How does it benefit machinery?
A: It provides a smooth start, reducing mechanical stress and extending the life of the equipment.

Specifications

Details

Range

Altistart 01

Product or component type

Soft Starter

Device application

Asynchronous motors

Product Specific Application

Simple machine

Network Number of Phases

1 Phase

[Us] Rated Supply Voltage

110...480 V - 10...10 %

Motor Power Kw

4 kW, 3 phases at 400 V
1.5 kW, 3 phases at 230 V
1.1 kW, 1 phase at 230 V

Motor power Hp

1 hp, 3 phases at 210 V
2 hp, 3 phases at 230 V
5 hp, 3 phases at 460 V

Icl Starter Rating

9 A

Utilisation category

AC-53B conforming to EN/IEC 60947-4-2

Current Consumption

45 A at nominal load

Type of Start

Start with voltage ramp

Power Dissipation In W

46 W in transient state
1 W at full load and at end of starting

Complementary

Assembly Style

With heat sink

Function Available

Integrated bypass

Supply Voltage Limits

99…528 V

Supply Frequency

50...60 Hz - 5...5 %

Network Frequency

47.5...63 Hz

Output Voltage

<= power supply voltage

[Uc] Control Circuit Voltage

110 V AC +/- 10 % at 35 mA
24 V AC/DC +/- 10 % at 30 mA
240 V AC +/- 10 % at 80 mA

Starting Time

1 s / 100
5 s / 20
Adjustable from 1 to 5 s

Starting Torque

30...80 % of starting torque of motor connected directly on the line supply

Discrete Output Current

2 A DC-13
3 A AC-15

Tightening Torque

0.8 N.m
1.9…2.5 N.m

Motor Power Range Ac-3

1.1…2 kW at 200…240 V 1 phase
2.2…3 kW at 200…240 V 3 phases
4…6 kW at 380…440 V 3 phases

General

Standards

EN/IEC 60947-4-2

Product Certifications

CSA
GOST
C-Tick
UL
CCC
B44.1-96/ASME A17.5 for starter wired to the motor delta terminal

IP Degree Of Protection

IP20

Vibration Resistance

1 gn (f= 13…150 Hz) conforming to EN/IEC 60068-2-6
1.5 mm peak to peak (f= 3…13 Hz) conforming to EN/IEC 60068-2-6

Shock Resistance

15 gn for 11 ms conforming to EN/IEC 60068-2-27

Relative Humidity

5…95 % without condensation or dripping water conforming to EN/IEC 60068-2-3

Ambient air temperature for operation

-10…40 °C (without derating)
40…50 °C (with current derating of 2 % per °C)

Dimensions (Height x Width x Depth)

124 x 45 x 131 mm

Weight

0.28 kg

TYPE

VALUE

Type

Circuit Protection

Brand

Schneider Electric

Range

Altistart 01

Brand	Clipsal by Schneider Electric
SKU	ATS01N109FT
Barcode #	3389110667158
Shipping Weight	0.3450kg
Shipping Width	0.155m
Shipping Height	0.055m
Shipping Length	0.175m
Shipping Cubic	0.001491875m3
