        Learn more by watching our Tesla AX22 | Auxiliary Contact Block 2NO+2NC video.

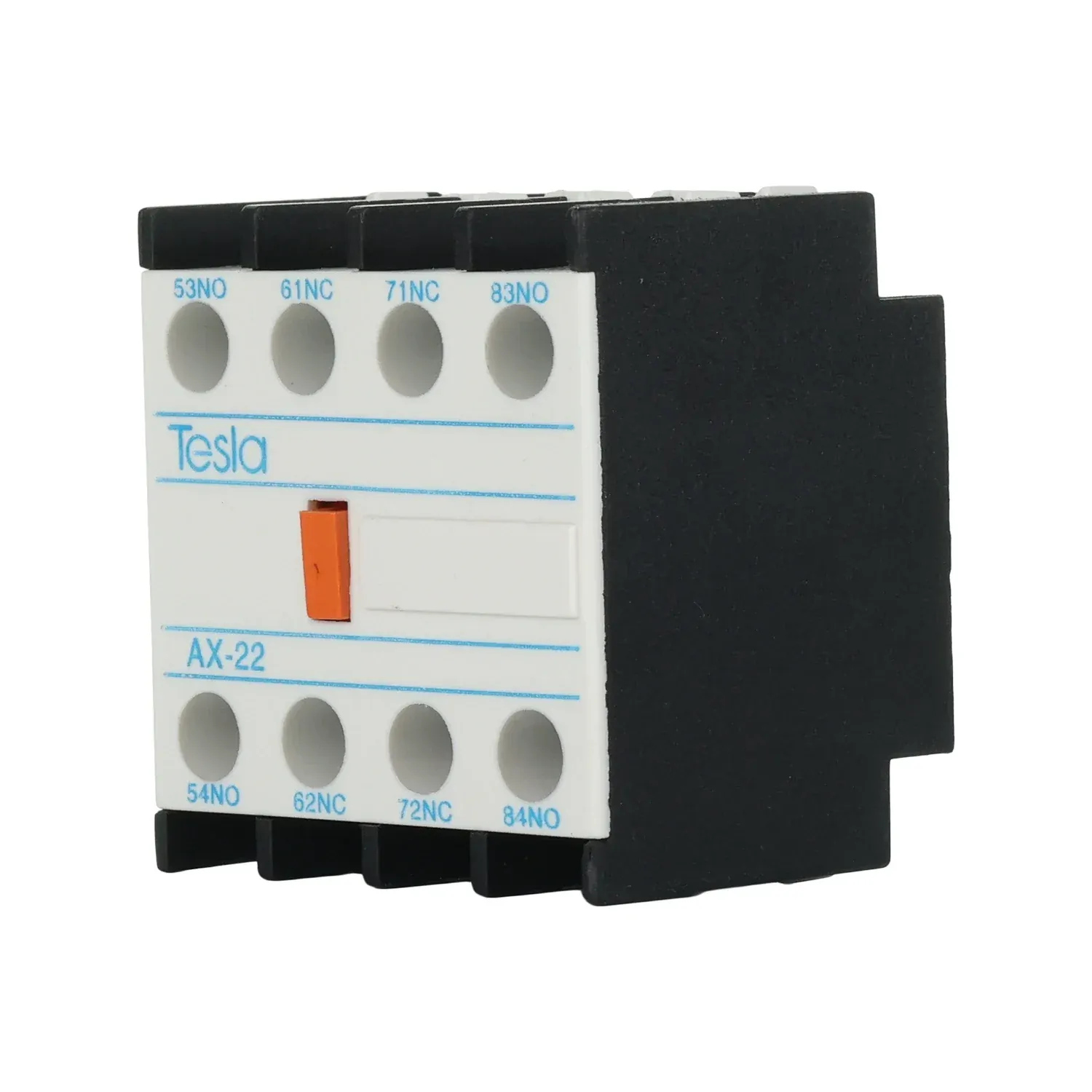

        Tesla | AX Range Auxiliary Contact Block 2NO plus 2NC | Clip-On Contactor Mount

        The Tesla AX22 is a clip-on auxiliary contact block carrying two normally open and two normally closed contacts. The AX22 mounts onto a contactor to add control contacts alongside the main switching poles. It belongs to the Tesla AX range of auxiliary contact blocks and ships individually packed.

        A contactor typically arrives with one auxiliary contact, or none at all. That covers a seal-in circuit and nothing further, which leaves an interlock, a run lamp and a PLC input competing for a single contact. The 2NO plus 2NC configuration supplies four independent contacts from one block, enough for a seal-in, an interlock and two indication or feedback functions. Ordering a block sized for the circuit avoids stacking multiple single blocks onto one contactor.

        Panel builders keep the AX22 on the shelf because it covers the awkward jobs a single contact cannot. Clip-on mounting attaches the block to the contactor by hand, so a control function gets added without rewiring the power circuit. The mixed contact set means one part number serves both fail-safe normally closed logic and standard normally open signalling. Individual packing suits van stock, where a loose block in a bulk box arrives with the terminals already knocked about.

        Features

        • 2NO plus 2NC configuration — two normally open and two normally closed contacts in a single block, giving four independent control functions.
        • Clip-on contactor mounting — the AX22 clips onto a contactor by hand, with no separate bracket or fixing hardware required.
        • Balanced contact set — Tesla positions this configuration for control circuits needing both normally open and normally closed contacts together.
        • Interlocking function — normally closed contacts wire between contactors so one cannot pull in while the other is energised.
        • Status indication — normally open contacts drive run lamps, hour meters or remote indication on a motor starter.
        • PLC feedback — spare contacts provide dry inputs to a programmable logic controller confirming contactor state.
        • Safety circuit contacts — normally closed contacts feed controlled shutdown and emergency stop arrangements.
        • Individually packed — the AX22 is supplied as a single unit rather than a bulk carton, which suits van and site stock.
        • Tesla AX range — part of a range of auxiliary blocks sharing the same clip-on mounting arrangement.
        • Compact addition — the block occupies the auxiliary position on the contactor rather than extra rail width in the panel.
        • Control circuit duty only — auxiliary contacts are for control and signalling functions, never for switching a motor or main load.

        Where to use

        • Contactor interlocking — the AX22 provides the normally closed contacts that keep two contactors from closing at once.
        • Motor starter indication — run and stop lamps on a starter enclosure door driven from spare contacts.
        • PLC input feedback — automation panels where the controller needs confirmation the contactor actually pulled in.
        • Emergency stop circuits — controlled shutdown arrangements requiring normally closed contacts in the safety string.
        • Pump and fan control panels — duty and standby arrangements where each starter reports status back to the control circuit.
        • Switchboard retrofits — adding a control function to an installed contactor without replacing the contactor itself.
        • OEM machine builds — the AX22 covers a repeatable control schedule where four auxiliary contacts are specified.
        • Hour meter and BMS reporting — run time logging and building management inputs taken from a spare contact.

        The AX22 is an auxiliary contact block for control circuits only, so it must never be used to switch a motor, a heater or any main load. It is a clip-on accessory rather than a standalone device, and requires a compatible contactor to mount onto and operate. Installation and wiring must be carried out by a licensed electrician in accordance with AS/NZS 3000.

        (AX22)

        With 2NO + 2NC contacts, it offers more flexibility for complex control or safety needs.

        Yes. It’s designed to manage multiple control points in one unit.

        Yes. It provides extra contacts for indication or interlock in starter circuits.

        No. Its clip-on design keeps it compact and efficient in control panels.

        Yes. It provides extra contacts that can be wired into emergency stop or controlled shutdown systems.

        100-Day Fuss-Free Returns
        We want you to love what you buy—but if you change your mind, that’s okay too. That’s why Sparky Direct offers a 100-day money-back guarantee.

        • Items must be unused, with all parts, accessories, and original packaging.
        • We can’t accept returns if the product is damaged, incomplete, or not in resalable condition.
        • Proof of purchase is required.
        • Return shipping is the responsibility of the customer.

        If your item isn’t in its original condition, please contact us before returning it—we might save you time and money.

        All products come with a manufacturer’s or supplier’s warranty

        • Warranty starts from the Invoice Date
        • Some suppliers offer in-home warranties and handle claims directly, so you won’t need to uninstall or return the product. Chat with us to check if your product qualifies.
        • Sparky Direct isn’t responsible for losses caused by product failure.
        • Warranties are void if products aren’t installed by a licensed electrician.

        Damaged or Faulty Goods
        If your order arrives damaged or is faulty, let us know within 24 hours.

        • Sparky Direct will pay for return shipping via an emailed return label.
        • If the fault is confirmed, we will send you a replacement item or provide a refund.

        Contact us via our chat to arrange the return.

        Exclusions
        We can’t accept returns for:

        • Items that have been installed, modified, or used
        • Clearance, End of life, Discontinued, or special order items (unless faulty)
        • All PPE Items
        • Goods returned without original packaging or proof of purchase

        How to Request a Return

        1. Contact our customer service team with your order number.
        2. Confirm it’s eligible under our return or warranty policy.
        3. Pack the item securely and return it using a trackable service.
        4. Once we receive and inspect it, we’ll process your refund or replacement.

        Warranty starts from Invoice Date

        Domestic Use: 1 Year
        Commercial Use: 1 Year
        Warranty Method: Return to Sparky Direct

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Tesla
        SKU AX22
        Model # AX22
        Package Weight 0.070kg
        View Datasheet
        TYPE VALUE
        Type Auxiliary Contact
        Brand Tesla
        Contact Configuration 2NO+2NC
