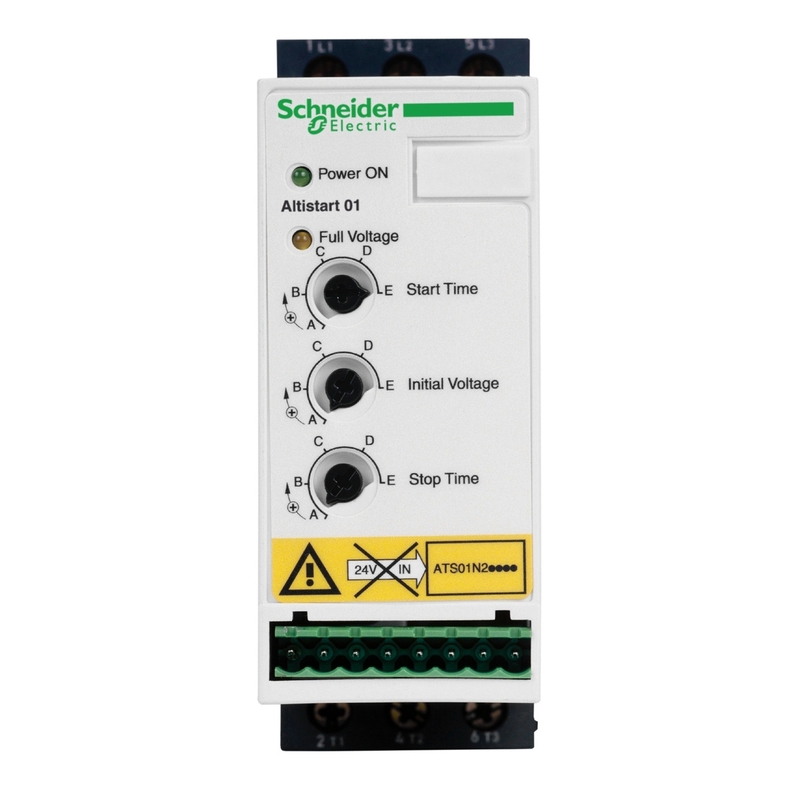

Schneider Electric ATS01N222QN | Altistart Soft Starter 22A 380-415V 7.5-11KW
Description:
The Schneider Electric ATS01N222QN Altistart Soft Starter is a top-tier solution for electricians looking to enhance the performance of 3-phase asynchronous motors. This soft starter is ideal for motors with a rating of up to 22A, suitable for a variety of industrial applications.
Designed for motors with a rated power of up to 11kW or 7.5hp for 3-phase (200V to 240V AC), the ATS01N222QN is perfect for simple machines such as conveyors, pumps, fans, compressors, automatic doors and gates, small cranes, and belt-driven machinery. It ensures a smooth start, thereby reducing mechanical stress and extending the lifespan of your machinery.
Measuring just 45mm in width, this soft starter is one of the smallest on the market, ensuring easy installation in almost any location. Its integrated bypass significantly reduces noise and decreases heat dissipation, making for a quieter and more comfortable working environment.
The ATS01N222QN is designed for easy configuration, requiring only two settings, allowing the setup process to be quicker. This feature ensures a hassle-free installation process and reliable operation.
Features:
FAQ:
Q: What types of motors can this soft starter control?
A: It's designed for 3-phase asynchronous motors up to 22A.
Q: Is it easy to install?
A: Yes, its compact size and straightforward configuration make installation easy.
Q: Does it help reduce operational noise?
A: Yes, it features an integrated bypass that reduces motor noise and heat.
(ATS01N222QN)
Warranty starts from Invoice Date
Domestic Use: 18 Months
Commercial Use: 18 Months
Warranty Method: Return to Sparky Direct
| Specifications | Details |
|---|---|
| Range | Altistart 01 |
| Product or component type | Soft Starter |
| Device application | Asynchronous motors |
| Product Specific Application | Simple machine |
| Network Number of Phases | 3 Phase |
| [Us] Rated Supply Voltage | 380...415 V - 10...10 % |
| Motor Power Kw | 11 kW, 3 phases at 380...415 V 7.5 kW, 3 phases at 380...415 V |
| Icl Starter Rating | 22 A |
| Utilisation category | AC-53B conforming to EN/IEC 60947-4-2 |
| Current Consumption | 110 A at nominal load |
| Type of Start | Start with voltage ramp |
| Power Dissipation In W | 124.5 W in transient state 4.5 W at full load and at end of starting |
| Complementary | |
| Assembly Style | With heat sink |
| Function Available | Integrated bypass |
| Supply Voltage Limits | 342…456 V |
| Supply Frequency | 50...60 Hz - 5...5 % |
| Network Frequency | 47.5...63 Hz |
| Output Voltage | <= power supply voltage |
| [Uc] Control Circuit Voltage | Built into the starter |
| Starting Time | 1 s / 100 5 s / 20 10 s / 10 Adjustable from 1 to 10 s |
| Deceleration Time Symb | Adjustable from 1 to 10 s |
| Starting Torque | 30...80 % of starting torque of motor connected directly on the line supply |
| Discrete Input Type | Logic (LI1, LI2, BOOST) stop, run and boost on start-up functions <= 8 mA 27 kOhm |
| Discrete Input Voltage | 24...40 V |
| Discrete Input Logic | Positive LI1, LI2, BOOST at State 0: < 5 V and 13 V, >= 0.5 mA |
| Discrete Output Current | 2 A DC-13 3 A AC-15 |
| Discrete Output Type | Open collector logic LO1 end of starting signal Relay outputs R1A, R1C NO |
| Discrete Output Voltage | 24 V (voltage limits: 6...30 V) open collector logic |
| Minimum Switching Current | 10 mA at 6 V DC for relay outputs |
| Maximum Switching Current | Relay outputs: 2 A at 250 V AC cos phi = 0.5 and L/R = 20 ms inductive load Relay outputs: 2 A at 30 V DC cos phi = 0.5 and L/R = 20 ms inductive load |
| Display Type | 1 LED (green) for starter powered up 1 LED (yellow) for nominal voltage reached |
| Tightening Torque | 0.5 N.m 1.9…2.5 N.m |
| Motor Power Range Ac-3 | 7…11 kW at 380…440 V 3 phases |
| General | |
| Standards | EN/IEC 60947-4-2 |
| Product Certifications | CSA GOST C-Tick UL CCC B44.1-96/ASME A17.5 for starter wired to the motor delta terminal |
| IP Degree Of Protection | IP20 |
| Vibration Resistance | 1 gn (f= 13…150 Hz) conforming to EN/IEC 60068-2-6 1.5 mm peak to peak (f= 3…13 Hz) conforming to EN/IEC 60068-2-6 |
| Shock Resistance | 15 gn for 11 ms conforming to EN/IEC 60068-2-27 |
| Relative Humidity | 5…95 % without condensation or dripping water conforming to EN/IEC 60068-2-3 |
| Ambient air temperature for operation | -10…40 °C (without derating) 40…50 °C (with current derating of 2 % per °C) |
| Dimensions (Height x Width x Depth) | 154 x 45 x 131 mm |
| Weight | 0.56 kg |
These specifications and characteristics outline physical, mechanical, electrical details.
| Brand | Clipsal by Schneider Electric |
| SKU | ATS01N222QN |
| Barcode # | 3389110667318 |
| Shipping Weight | 0.6720kg |
| Shipping Width | 0.175m |
| Shipping Height | 0.057m |
| Shipping Length | 0.155m |
| Shipping Cubic | 0.001546125m3 |
| TYPE | VALUE |
|---|---|
| Type | Circuit Protection |
| Brand | Schneider Electric |
| Range | Altistart 01 |
